Product Details:
Payment & Shipping Terms:
|
| Product Name: | 2000BPH Mini Liquid Filling Machine | Filling Liquid: | Pure Water |
|---|---|---|---|
| Capacity: | 2000-4000BPH | Material: | 304 Stainless Steel |
| Brand: | Labelong | Control: | PLC |
| Bottle Type: | PET/ Glass Bottle | Power: | 1.5kw |
| High Light: | 2000BPH Water Bottle Filling Machines,4000BPH Water Bottle Filling Machines,2000BPH Mini Liquid Filling Machine |
||

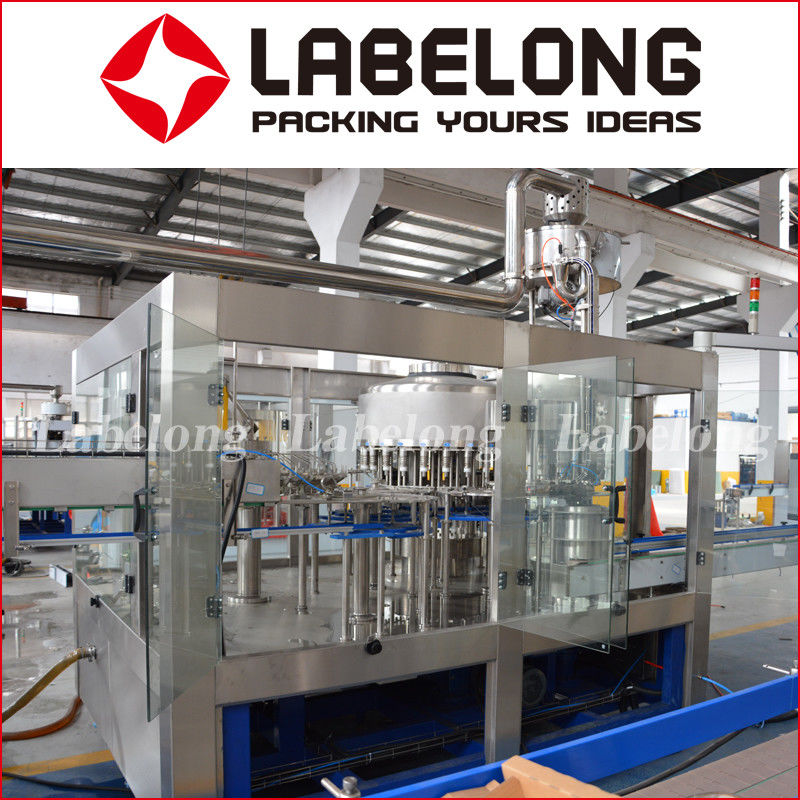

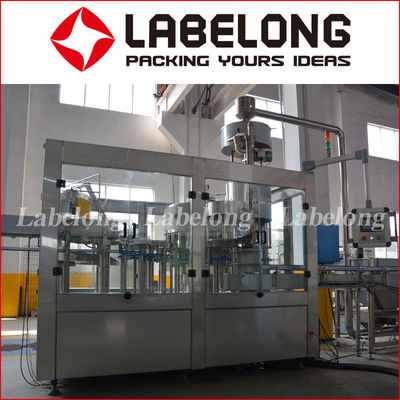

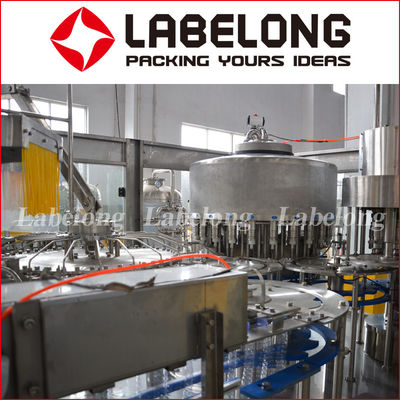

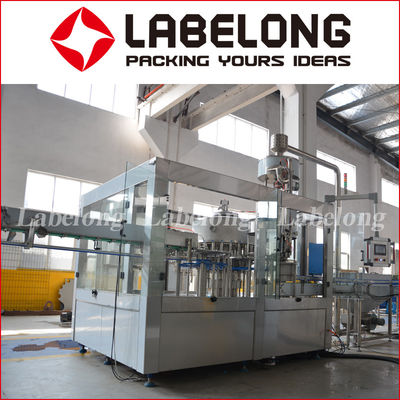

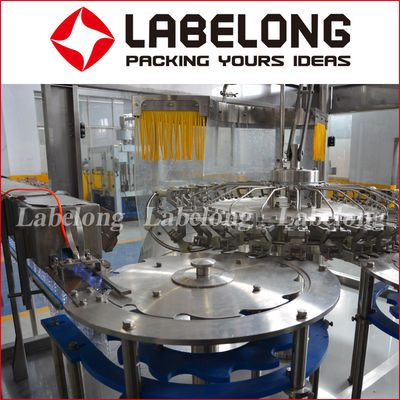

2000BPH Rinsing Capping Water Bottle Filling Machines
Product detail
Water Bottle Filling Machines with capacity from 2000BPH to 24000BPH. it is easily and conveniently to operate.The empty bottles can be turned over 180° Along the conveying rail. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water. The filling valve material is SUS304. The filling system has liquid level automatic control. Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate.
Technical Parameter
| Model RFC-W series | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Washing-Filling-Capping | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Producing capacity (600ml) |
2000-4000 (bph) |
5000-7000 (bph) |
8000-12000 (bph) |
12000-15000 (bph) |
16000-20000 (bph) |
20000-24000 (bph) |
||
| Applicable bottle (mm) | φ=50-108 H=170-340 330ml-2.25L | |||||||
| Pressure (kg/cm2) | 2~3 | |||||||
Outside vacuum pump power (kw) |
Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
Main motor 7.5kw |
Main motor 9.5kw |
||
| Overall dimension (mm) (LxWxH) |
2100x1400 x2500 |
2460x1720 x2650 |
3100x2100 x2650 |
3500x2500 x2650 |
4600x1800 x2650 |
5200x4500 x3400 |
||
| Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | ||
Configuration List:
Our factory
Shipping photo
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
| No. | Production line category | Capacity |
| 1 | Hot filling production line | 3,000-36,000BPH |
| 2 | Beverage processing System | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 3 | Bottled water production line | 3,000-36,000BPH |
| 4 | 5L Large capacity bottled water production line | 700-5,000b/h |
| 5 | Carbonated drink production line | 3,000-18,000b/h |
| 6 | Pulp juice production line | 5,000-22,000BPH |
| 7 | Oil Filling line | 3,000-10,000BPH |
| 8 | Linear Filling machine | 300-900BPH |
| 9 | Bottlle Unscrambler | Up to 20,000BPH |
| 10 | Barrelled water production line | 300-2000 bucket/H |
| 11 | Water Treatment system | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 12 | OPP Labeling machine | 6,000-24,000BPH |
| 13 | PVC Shrink Sleeve Labeling machine | 6,000-24,000bph |
| 14 | Automatic Blow molding machine | 1,000-7,000BPH |
| 15 | Full-automatic Film Wrapper & Shrinker | 5-20packs |
