Product Details:
Payment & Shipping Terms:
|
| Product Name: | 8000 BPH Automatic Juice Filling Machine | Filling Liquid: | Juice |
|---|---|---|---|
| Capacity: | 8000BPH | Material: | 304 Stainless Steel |
| Brand: | Labelong | Control: | PLC |
| Bottle Type: | PET/ Glass Bottle | Power: | 3.29kw |
| High Light: | 8000 BPH Automatic Juice Filling Machine,8000 BPH fruit juice packing machine,500ML Automatic Juice Filling Machine |
||

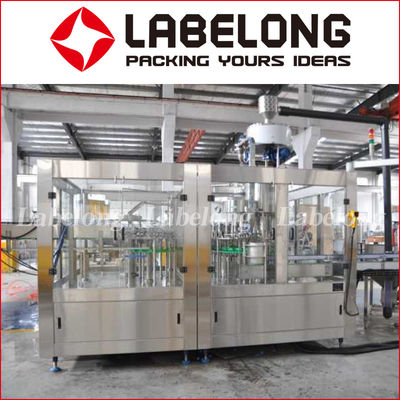

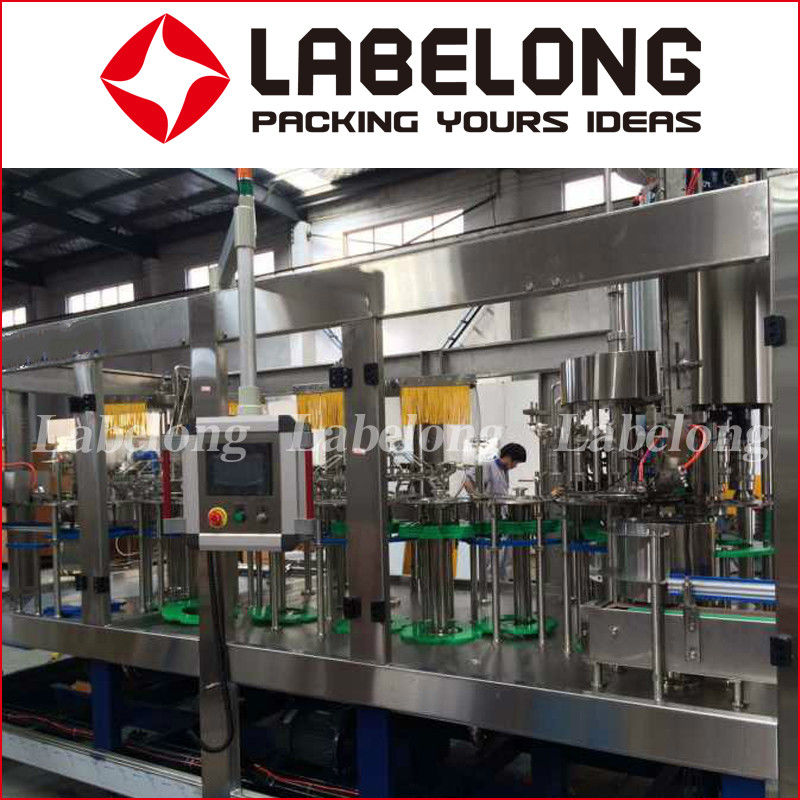

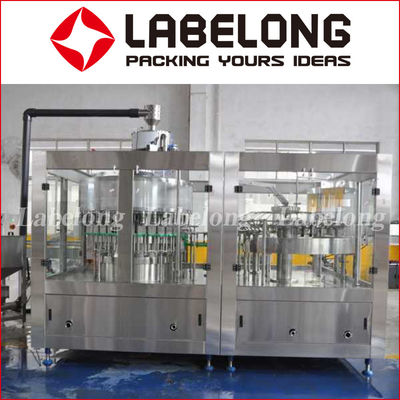

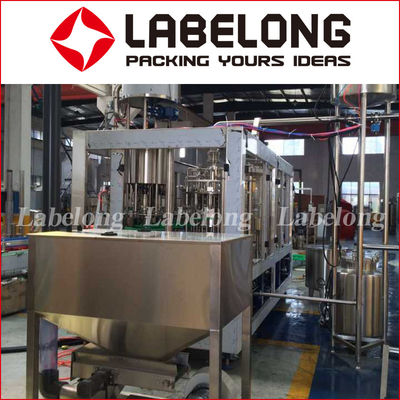

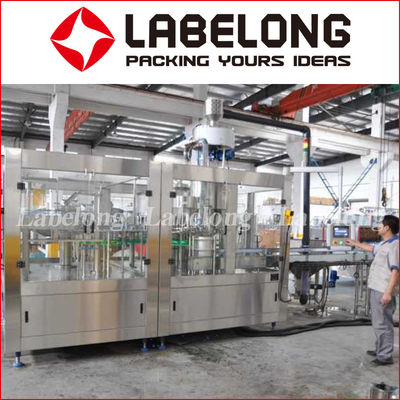

Apple Mango 500ML 8000 BPH Automatic Juice Filling Machine
Automatic juice filling machine is used in filling juices, beverage,mineral water and purified water in bottles made of polyester and plastics. Automatic juice filling machine adopt advanced OMRON programmed controller (PLC), can also be used in hot filling if being installed with temperature controlling device, which make the operations of moving bottle forward steadily and reliably. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
Product detail
1. Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water.
2. Filler
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm (subject to bottle design). The filling valve material is SUS304. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part.
3. Capper
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.
Technical Parameter
| Model RFC-H series | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Washing-Filling-Capping | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Producing capacity (600ml) |
2000-4000 (bph) |
5000-7000 (bph) |
8000-12000 (bph) |
12000-15000 (bph) |
16000-20000 (bph) |
20000-24000 (bph) |
||
| Applicable bottle (mm) | φ=50-108 H=170-340 330ml-2.25L | |||||||
| Pressure (kg/cm2) | 2~3 | |||||||
Outside vacuum pump power (kw) |
Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
Main motor 7.5kw |
Main motor 9.5kw |
||
| Overall dimension (mm) (LxWxH) |
2100x1400 x2500 |
2460x1720 x2650 |
3100x2100 x2650 |
3500x2500 x2650 |
4600x1800 x2650 |
5200x4500 x3400 |
||
| Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | ||
Our factory
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
