Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rotary Filling Cooking Oil Filling Machine | Power: | 0.75KW |
|---|---|---|---|
| Material: | 304 Stainless Steel | Control: | PLC Control |
| Capacity: | 10000BPH | Usage: | Oil Packaging |
| Weight: | 300kg | Processing Types: | Automatic Cup Filling Sealing Machine |
| High Light: | 10000BPH Cooking Oil Filling Machine,110V Cooking Oil Filling Machine,0.75KW Viscous Liquid Filling Machine |
||

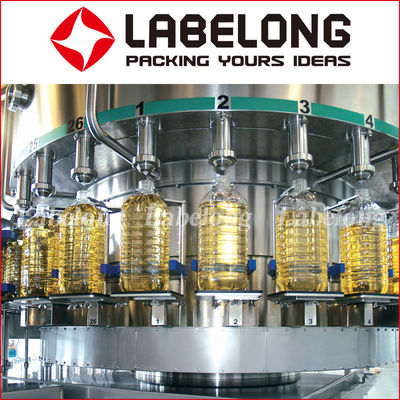

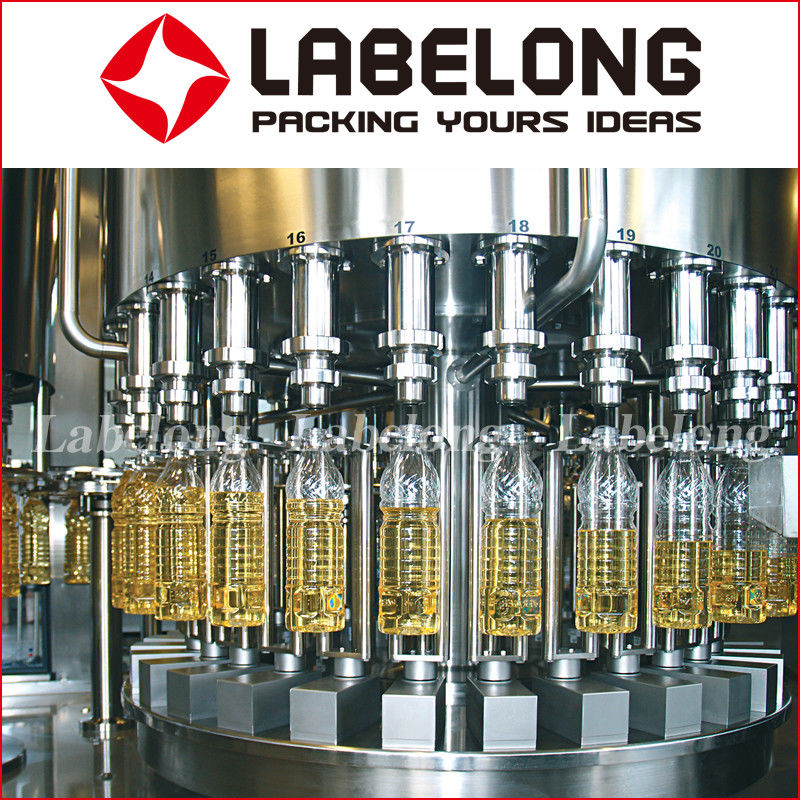

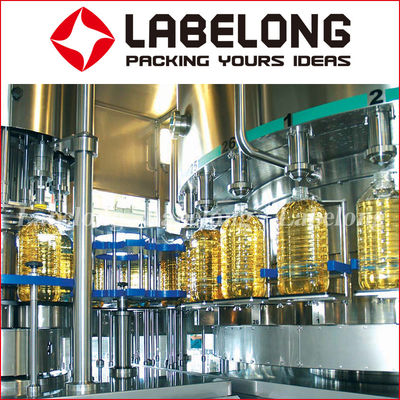

Rotary Filling 10000BPH Cooking Oil Filling Machine
Rotary filling 10000BPH cooking oil filling machine is mainly used in the edible oil filling operations in plastic bottles with plastic screw caps. The two functions of bottle filling and capping are composed in one monoblock. It is innovated and designed in the requirement of edible oil / viscous liquid filling technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil producers.
Features of edible oil filling machine
Compact structured, good-looking, easy to operate and highly automated.
1. Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.
2. Liquid buffer element specially designed inside filling valves can eliminate the cutting affection and wallop between liquid and container, easy to eliminate the air bubble in material.
3. Highly effective cap sorting and feed in system is protective for feed in and cap absence.
4. Equipped with cap absence detector and bottle jam-up detector, which could stop the monoblock in that case.
5. Equipped with output calculating function for monoblock.
Labelong focus on filling, packing & water treatment field, our factory takes up 60000 square meters ,more than 30 Professinal Tehchnicians and workers which is one of the professional & reliable Chinese manufacturers & provider for liquid & semi-liquid filling & packaging machinery, blow molding machines and water treatment systems with reliable quality & pretty good after sale service with CE certification & ISO9000:2001 certification.
| No. | Production line category | Capacity |
| 1 | Hot filling production line | 3,000-36,000BPH |
| 2 | Beverage processing System | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 3 | Bottled water production line | 3,000-36,000BPH |
| 4 | 5L Large capacity bottled water production line | 700-5,000BPH |
| 5 | Carbonated drink production line | 3,000-18,000BPH |
| 6 | Pulp juice production line | 5,000-22,000BPH |
| 7 | Oil Filling line | 3,000-10,000BPH |
| 8 | Linear Filling machine | 300-900BPH |
| 9 | Bottlle Unscrambler | Up to 20,000BPH |
| 10 | Barrelled water production line | 300-2000 bucket/H |
| 11 | Water Treatment system | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 12 | OPP Labeling machine | 6,000-24,000BPH |
| 13 | PVC Shrink Sleeve Labeling machine | 6,000-24,000bph |
| 14 | Automatic Blow molding machine | 1,000-7,000BPH |
| 15 | Full-automatic Film Wrapper & Shrinker | 8-20 Packs per Minutes |
