| Product Name: | Rotary 500ml Milk Bottle Filling Machine | Voltage: | 220V/380V,Can Be Designed |
|---|---|---|---|
| Driven Type: | Electric | Type: | Filling Machine |
| Application: | Beverage | Packaging Type: | Bottles |
| Material: | Stainless Steel | Function: | Bottle Filling |
| High Light: | Rotary milk bottle filling machine,500ml milk bottle packing machine,500ml milk bottle filling machine |
||

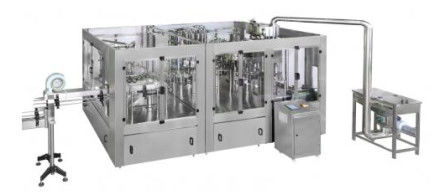

Automatic 3 In 1 Rotary 500ml Milk Bottle Filling Machine
Application: juice, milk, vitamin drinks, functional beverage with particles, flesh, pulp, fruit pieces,etc.
Suitable for: PET bottles with all volumes and shapes
Filling system: gravity filling
Production capacity: 2,000BPH–26,000BPH (500ml)
Application
This beverage filling machine integrates washing filling and capping into one unit. It can be used for purified and mineral water filling. Also can used for hot beverages such as fruit juice tea drink etc. The machine also can be used for carbonated drinks.
Features
1. Automatic PLC controlled valve washing cycle before commencement of every production cycle for overall hygiene.
2. Unique filling cam designs which prevents filling up to the bottle collar without spillage.
3. Bypass line provided for flushing the product fill tank after completion of CIP.
Technical Parameter
| Model RFC-H series | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Washing-Filling-Capping | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Producing capacity (600ml) |
2000-4000 (bph) |
5000-7000 (bph) |
8000-12000 (bph) |
12000-15000 (bph) |
16000-20000 (bph) |
20000-24000 (bph) |
||
| Applicable bottle (mm) | φ=50-108 H=170-340 330ml-2.25L | |||||||
| Pressure (kg/cm2) | 2~3 | |||||||
Outside vacuum pump power (kw) |
Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
Main motor 7.5kw |
Main motor 9.5kw |
||
| Overall dimension (mm) (LxWxH) |
2100x1400 x2500 |
2460x1720 x2650 |
3100x2100 x2650 |
3500x2500 x2650 |
4600x1800 x2650 |
5200x4500 x3400 |
||
| Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | ||
Product detail
1. Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water.

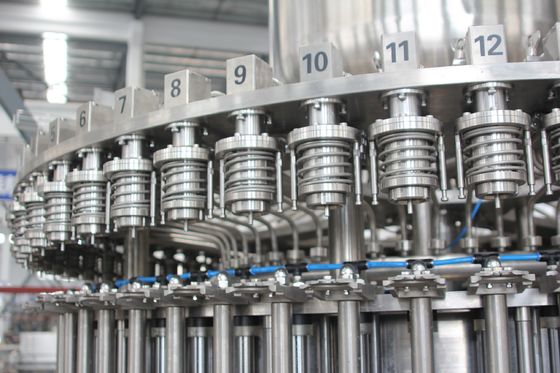

2. Filler
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm (subject to bottle design). The filling valve material is SUS304. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part.
3. Capper
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.
Our factory
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
