Product Details:
Payment & Shipping Terms:
|
| Product Name: | 18000BPH Water Bottle Filling Machines | Filling Liquid: | Pure Water |
|---|---|---|---|
| Capacity: | 15000BPH | Material: | 304 Stainless Steel |
| Brand: | Labelong | Control: | PLC |
| Bottle Type: | PET/ Glass Bottle | Power: | 3.29kw |
| High Light: | 18000BPH Water Bottle Filling Machines,3.29kw Water Bottle Filling Machines,15000BPH Automatic Water Bottle Filling System |
||

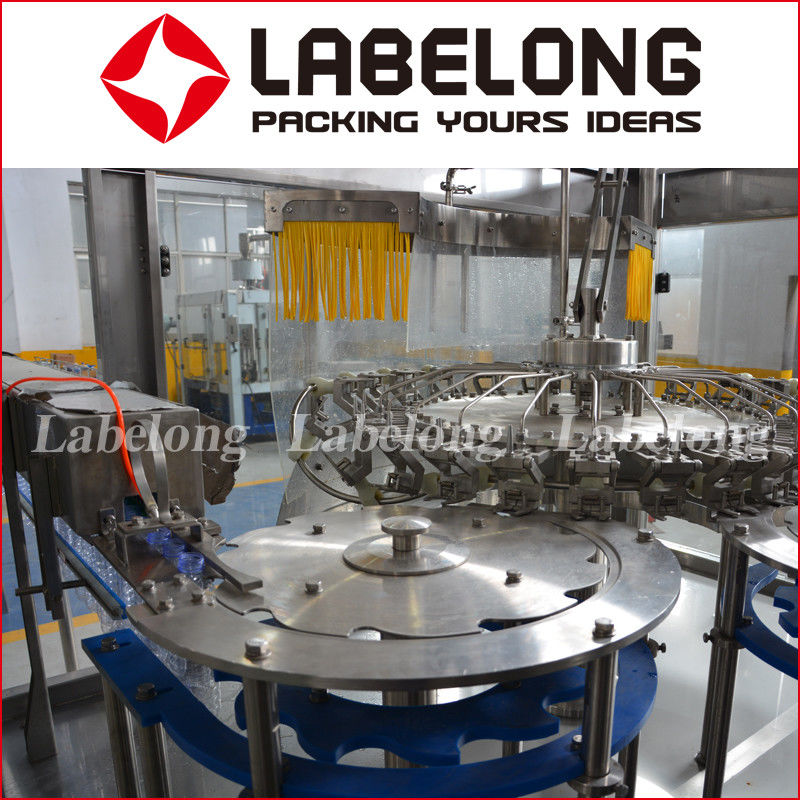

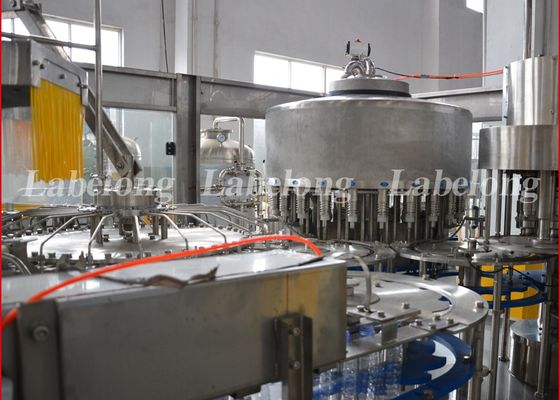

18000BPH PET Bottle Water Bottle Filling Machines
2. The material is SUS304, corrosion resisitant, easy to clean.
3. The filling structure control accuracy is within ± 2mm (subject to bottle design), it is reasonable and hygiene dead angle.
4. The empty bottles can be turned over 180° Along the conveying rail.
5. The aluminum theft proof cap and plastic cap can be adopted.
Technical Parameter
| Model RFC-W series | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Washing-Filling-Capping | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Producing capacity (600ml) |
2000-4000 (bph) |
5000-7000 (bph) |
8000-12000 (bph) |
12000-15000 (bph) |
16000-20000 (bph) |
20000-24000 (bph) |
||
| Applicable bottle (mm) | φ=50-108 H=170-340 330ml-2.25L | |||||||
| Pressure (kg/cm2) | 2~3 | |||||||
Outside vacuum pump power (kw) |
Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
Main motor 7.5kw |
Main motor 9.5kw |
||
| Overall dimension (mm) (LxWxH) |
2100x1400 x2500 |
2460x1720 x2650 |
3100x2100 x2650 |
3500x2500 x2650 |
4600x1800 x2650 |
5200x4500 x3400 |
||
| Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | ||
Configuration List:
Our factory
Shipping photo
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
| No. | Production line category | Capacity |
| 1 | Hot filling production line | 3,000-36,000BPH |
| 2 | Beverage processing System | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 3 | Bottled water production line | 3,000-36,000BPH |
| 4 | 5L Large capacity bottled water production line | 700-5,000b/h |
| 5 | Carbonated drink production line | 3,000-18,000b/h |
| 6 | Pulp juice production line | 5,000-22,000BPH |
| 7 | Oil Filling line | 3,000-10,000BPH |
| 8 | Linear Filling machine | 300-900BPH |
| 9 | Bottlle Unscrambler | Up to 20,000BPH |
| 10 | Barrelled water production line | 300-2000 bucket/H |
| 11 | Water Treatment system | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 12 | OPP Labeling machine | 6,000-24,000BPH |
| 13 | PVC Shrink Sleeve Labeling machine | 6,000-24,000bph |
| 14 | Automatic Blow molding machine | 1,000-7,000BPH |
| 15 | Full-automatic Film Wrapper & Shrinker | 5-20packs |
