24000BPH PET Bottle Rinsing Filling Capping Machine

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

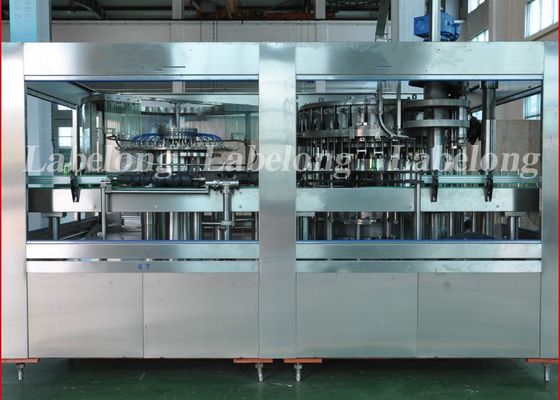

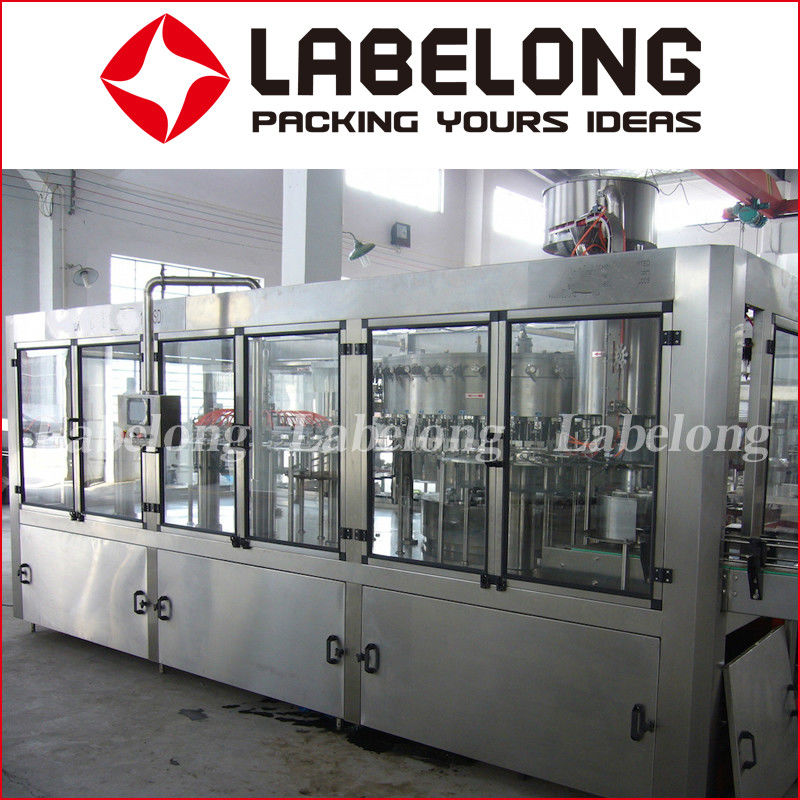

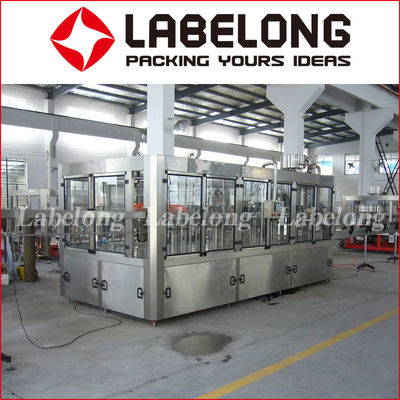

24000BPH PET Bottle Rinsing Filling Capping Machine

24000BPH PET Bottle Rinsing Filling Capping Machine
24000BPH PET Bottle Rinsing Filling Capping Machine 24000BPH PET Bottle Rinsing Filling Capping Machine 24000BPH PET Bottle Rinsing Filling Capping Machine

Large Image :  24000BPH PET Bottle Rinsing Filling Capping Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: RCF-W32-32-15

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD40000-50000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Product Name: Mineral Water Filling Machine Filling Liquid: Pure Water
Capacity: 24000BPH Material: 304 Stainless Steel
Control: PLC Bottle Type: Round Bottle
Power: 9.5kw
High Light:

24000BPH Rinsing Filling Capping Machine

,

304SS Rinsing Filling Capping Machine

,

9.5kw Mineral Water Bottle Machine



24000BPH PET Bottle Rinsing Filling Capping Machine



Application: mineral water, drinking water, pure water


Capacity: 3000-24000 bottles / hour (500ML)


Containers applied for: PET bottle of all volumes and shapes


Filling system: gravity filling.



Features
Rinsing Filling Capping Machine can be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.
The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part. it can control the material from the bottleneck, the control accuracy is within ± 2mm (subject to bottle design). The filling valve material is SUS304.
Rinsing Filling Capping Machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.

Technical Parameter
Model RFC-W series 14-12-5 16-16-5 24-24-8 32-32-10 40-40-10 50-50-12
Washing-Filling-Capping 14-12-5 16-16-5 24-24-8 32-32-10 40-40-10 50-50-12
Producing capacity
(600ml)
2000-4000
(bph)
5000-7000
(bph)
8000-12000
(bph)
12000-15000
(bph)
16000-20000
(bph)
20000-24000
(bph)
Applicable bottle (mm) φ=50-108 H=170-340 330ml-2.25L
Pressure (kg/cm2) 2~3

Outside vacuum

pump power (kw)


Main motor
1.5kw
Main motor
2.2kw
Main motor
3kw
Main motor
4kw
Main motor
7.5kw
Main motor
9.5kw
Overall dimension (mm)

(LxWxH)
2100x1400
x2500
2460x1720
x2650
3100x2100
x2650
3500x2500
x2650
4600x1800
x2650
5200x4500
x3400
Weight(kg) 2500 3500 4200 5500 6800 7600



Configuration List:
24000BPH PET Bottle Rinsing Filling Capping Machine 0

Our factory



24000BPH PET Bottle Rinsing Filling Capping Machine 1


Shipping photo



24000BPH PET Bottle Rinsing Filling Capping Machine 2



RFQ
Q1: Are you a trading company or a manufacturer?

A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.



Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you the high quality machines with one year guarantee and supply long life technical support.



Q3: When can I get my machines after I paid?

A: The delivery time is based on the exact machine you confirmed.



Q4: How can I install my machines when they arrive?

A: We will send our engineers to your factory to install the machines and train your staffs how to operate

the machines.



Q5: How about the spare parts?

A: After we deal with all the things, we will offer you a spare parts list for you refer.



No. Production line category Capacity
1 Hot filling production line 3,000-36,000BPH
2 Beverage processing System 1,000 Ltrs/H to 10,000 Ltrs/H
3 Bottled water production line 3,000-36,000BPH
4 5L Large capacity bottled water production line 700-5,000b/h
5 Carbonated drink production line 3,000-18,000b/h
6 Pulp juice production line 5,000-22,000BPH
7 Oil Filling line 3,000-10,000BPH
8 Linear Filling machine 300-900BPH
9 Bottlle Unscrambler Up to 20,000BPH
10 Barrelled water production line 300-2000 bucket/H
11 Water Treatment system 1,000 Ltrs/H to 10,000 Ltrs/H
12 OPP Labeling machine 6,000-24,000BPH
13 PVC Shrink Sleeve Labeling machine 6,000-24,000bph
14 Automatic Blow molding machine 1,000-7,000BPH
15 Full-automatic Film Wrapper & Shrinker 5-20packs
