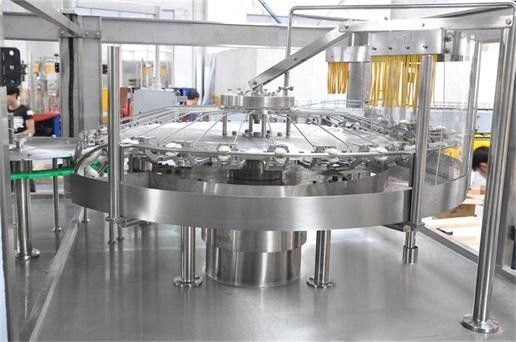

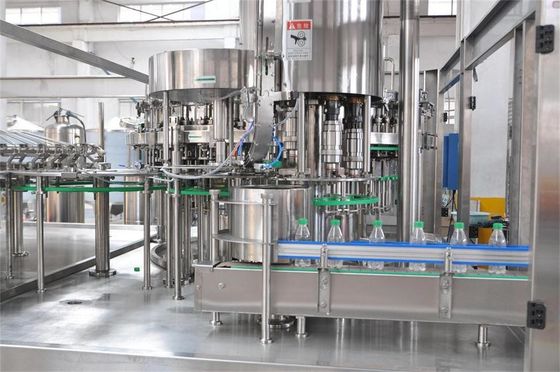

500ML Cold Drink Filling Machine

500ML Cold Drink Filling Machine
500ML Cold Drink Filling Machine 500ML Cold Drink Filling Machine

Large Image :  500ML Cold Drink Filling Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Automatic Grade: Automatic Driven Type: Electric
Product Name: 500ML Cold Drink Filling Machine Type: Filling Machine
Packaging Type: Bottles Application: Beverage
Packaging Material: Plastic,Glass Material: SUS304/316
Highlight:

500ML cold drink filling machine

,

500ML soda water filling machine

,

Rotary cold drink filling machine

CARBONATED SOFT DRINK FILLING MACHINE

Carbonated Soft Drink Filling

3 in 1 Rotary Filling machine



Application: carbonated drinks, CSD, cola, soda water, sparking water, energy drinks, kvass, beer, etc.
Capacity: 3000-18000 bottles / hour (500ML)
Containers applied for: PET bottle of all volumes and shapes
Filling system: Isobaric filling
Technical features of carbonated soft drink filling machine
The air conveyor is directly connected with bottle-in starwheel. The bottle is transferred by neck holding.
High speed line adopts bottle clamps to transfer the bottle. It makes work much easier when bottle size is changed.
By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
The high speed line is of ring type pressure bearing hydraulic cylinder.
High speed and large flow filling valve assures the high filling speed and exact fluid level.
Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height

Model RFC-C series 14-12-5 16-16-5 24-24-8 32-32-10 40-40-10 50-50-12
Washing-Filling-Capping 14-12-5 16-16-5 24-24-8 32-32-10 40-40-10 50-50-12
Producing capacity
(600ml)
2000-4000
(bph)
5000-7000
(bph)
8000-12000
(bph)
12000-15000
(bph)
16000-20000
(bph)
20000-24000
(bph)
Applicable bottle (mm) φ=50-108 H=170-340 330ml-2.25L
Pressure (kg/cm2) 2~3

Outside vacuum

pump power (kw)
Main motor
1.5kw
Main motor
2.2kw
Main motor
3kw
Main motor
4kw
Main motor
7.5kw
Main motor
9.5kw

Overall dimension (mm)

(LxWxH)
2100x1400
x2500
2460x1720
x2650
3100x2100
x2650
3500x2500
x2650
4600x1800
x2650
5200x4500
x3400

Weight(kg) 2500 3500 4200 5500 6800 7600
