Product Details:
Payment & Shipping Terms:
|
| Bottle Type: | Round And Square Bottle | Material: | 304 Stainless Steel |
|---|---|---|---|
| Speed: | 6000-24000BPH | Control: | PLC Control |
| Label Type: | PVC Shrink Label | Working: | Automatic |
| Tunnel Length: | 1.8-2.4m | Generator: | 18-36kw |
| Voltage: | 220V/50HZ | Driven Type: | Electric |
| Packaging Type: | Bottles,Case,tube | ||
| Highlight: | 12000BPH Automatic Bottle Labeling Machine,12000BPH shrink sleeve applicator machine,Labelong Automatic Bottle Labeling Machine |
||

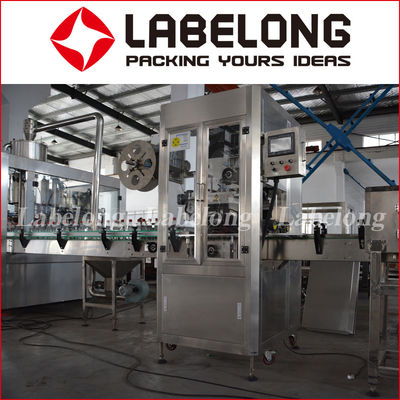

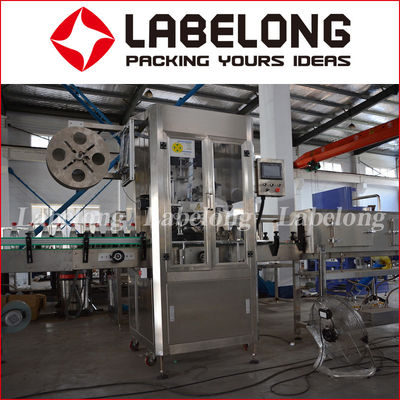

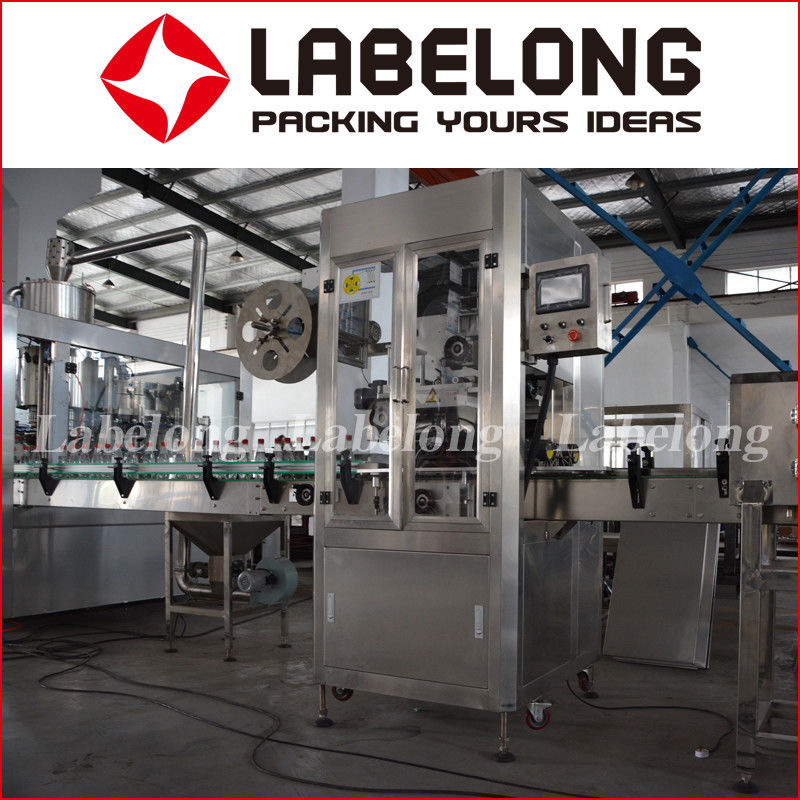

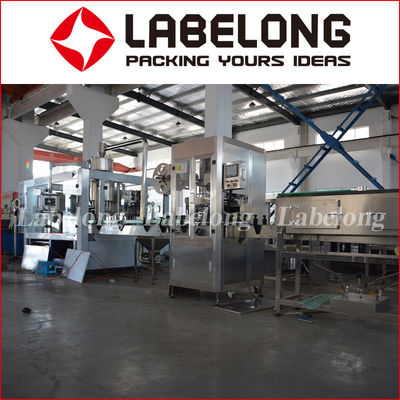

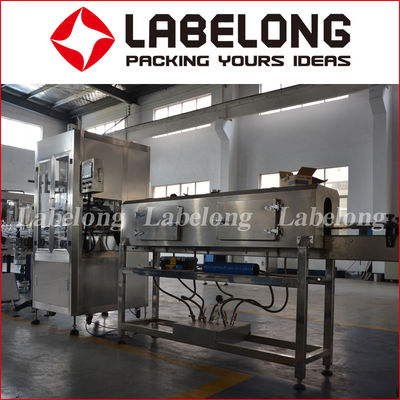

Automatic 12000BPH PET /Glass bottle Shrink Sleeve Labeling Machine for water filling machine
Specification
1. The company's sleeve labeling machine is suitable for all kinds of bottles of fruit juice tea drinks dairy products pure water condiments beer sports drinks and other food and beverage industry not only has a highly precise position and contraction more prominent bottle perfect bottle.
2. The high stability of the mechanical structure the whole machine made of stainless steel and aluminum alloy frame cover protective rigid frame solid rust.
3. High-quality positioning accuracy all mechanical transmission design the use of forced sleeve labels.
4. Low maintenance cost of consumables low cost of discarding this machine blade easy to replace the cost burden is low.
5. Reliable service the aircraft has a variety of spare parts warehouse ready to provide as well as experienced engineers provide you with technical support.
6. Sleek appearance the overall framework of strong more lightweight and flexible use.
7. The new industry-leading design quality is more solid and excellence by no means able to compare the existing domestic products.
8. The machine is simple and elegant structural components ensures low failure rate easy maintenance.
9. A full range of security principal security box in fact thoughtful design.
10. Synchronous bottles delivery and stable;
11. Adjustable cutter cutting maneuver tool life doubled.
12. The man-machine interface operating more humane
Parameter
| Model | LBL-200 |
| Speed | MAX 200BPM |
| Main machine size | 1000*860*1800 L*W*H (mm) |
| Machine body | Stainless steel 304 |
| Electric power | AC3-PHASE 220V/380V |
| Input power of machine | 2.5KW |
| Applicable diameter of bottle | φ25mm –φ125mm |
| Bottle height | Max 350mm special can be designed |
| Height of shrink label | 25 mm ~280mm, special can be designed |
| Thickness of shrink label | 0.035 mm~0.13 mm(PVC PET OPS) |
| Paper inner core | 5”～10” Free adjustment |
| Shrink tunnel | Electrical / steam |
| Weight | Around 600kg |
