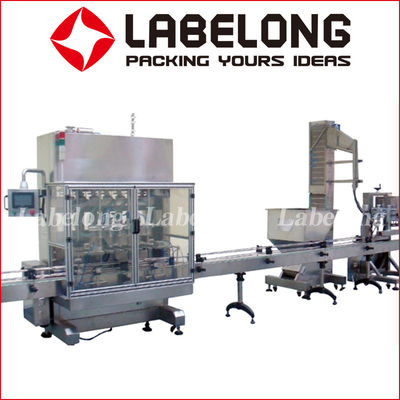

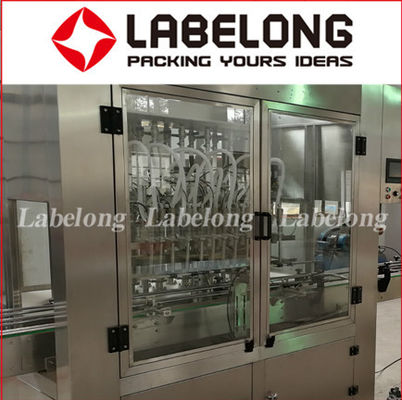

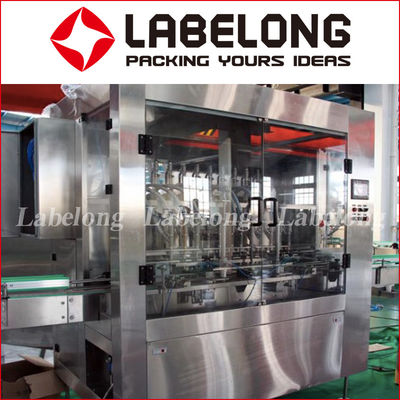

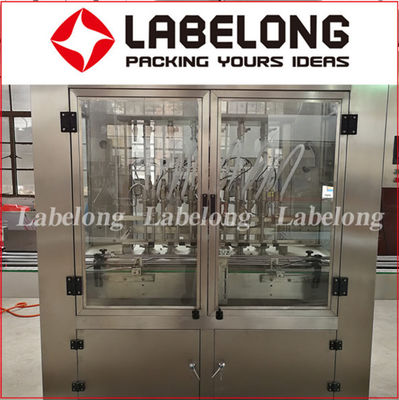

Automatic Chemical Pesticide Acid Liquid Piston Filling Machine
The non-metallic linear self-flow filling machine is suitable for filling operations of strong acid and alkali materials. All parts in contact with materials are made of non-metallic materials to effectively resist corrosion.
It adopts electric dynamic components of world famous brands, with PLC control,friendly operation interface, long service life of parts, convenient maintenance, safe and reliable, low noise, simple operation and accurate measurement and adjustment.
Application: detergent, oil, toilet cleaner, soap water, sauce, jam, honey
Capacity: 500-5000 bottles / hour (500ML)
Containers applied for: PET /glaa bottle of all volumes and shapes
Filling system: piston filling.
Major Characteristics:
(1). Linear piston filling, 8 filling heads high efficiency with high production capacity .
(2). PLC controlled. Easily connected with capping machine and labeling machine and implementing Bus Communication.
(3). Two channel standard safety electric circuit to make sure equipments running safely.
(4). With AUTO-ID system. No bottle no filling.
(5). Servo drive piston, high-precision filling
(6). Adopting diving filling to avoid foamy and explosion.
(7). Eternal wear free measuring cylinder, long working life Pan plug seal with the function of self-compaction, maintenance free.
Technical Parameters:
| Machine dimension |
2000mm(L)* 1200mm(W)*2500mm(H) |
| Filling heads |
Accorting to production capacity |
| Filling range |
Customized |
| Production capacity: |
1000b/h(take 500ml foamy product as test) for 6 filling heads |
| Filling Tolerance |
Filling machine for volume ≤500ml----±1g
Filling machine for volume ≥500ml----±2g |
| Power supply |
AC380V,50Hz; AC220V,50Hz (customized) |
| Air consumption |
0.55-0.65 Mpa clean and stable compressed ai |
| Diameter of bottle mouth |
Customized |
Configuration List:
Our factory
Shipping
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
