Product Details:
Payment & Shipping Terms:
|
| Product Name: | 2000ml-5000ml Corn Oil Production Line | Dimension(L*W*H): | 2300*1400*2500MM |
|---|---|---|---|
| Material: | Stainless Steel | Voltage: | 220V/380V |
| Control: | PLC Control | Working: | Automatic |
| Type: | Rotary Filling | Capacity: | 1000BPH |
| High Light: | 1000BPH Corn Oil Production Line,1.75KW Corn Oil Production Line,2000ML Cooking Oil Filling Machine |
||

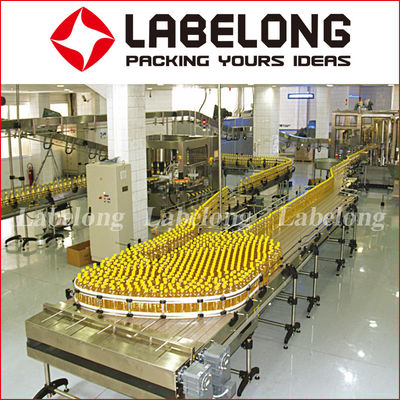

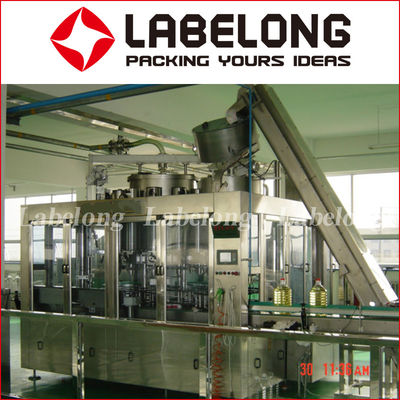

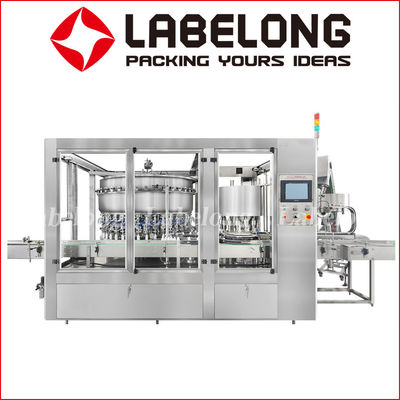

PLC Control 1000BPH Automatic PET Bottle Corn Oil Production Line
Introduction of edible oil filling machine:

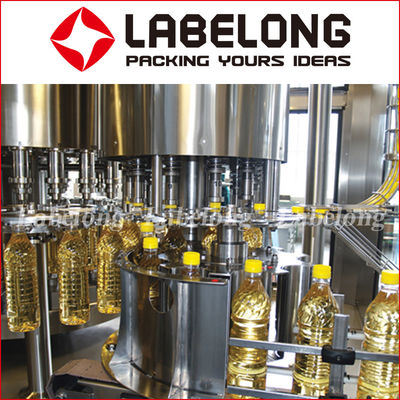

GYF series corn oil production line is use PLC control system, the operation interface is 6 inch touch screen with color, it is intuitive and simple, servo motor driving. There are many advantages, such as Cutting with anti-drip device, using internationally renowned electrial components to ensure that equipment’s reliability and high accuracy. The filling valves are made of high quality stainless steel 316 and non-toxic corrosion and PTFE or silica gel hoses. Other machine parts are made of high quality stainless steel 304.
Automatic PET Bottle Corn Oil Production Line Specifications:
| Product name | Automatic PET Bottle Corn Oil Production Line |
| Capacity per hour | 1000-10000BPH |
| Machines Material | Stainless Steel 304,316L |
| Bottle neck | 28mm or 30mm |
| Bottle volume | 350-1600ml |
| Voltage | 380v/220v/60hz/3ph |
| Filling heads | 20PCS |
| Power | 3 KW |
| Capping heads | 5PCS |
| Filling type | Gravity negative pressure |
Labelong focus on filling, packing & water treatment field, our factory takes up 60000 square meters ,more than 30 Professinal Tehchnicians and workers which is one of the professional & reliable Chinese manufacturers & provider for liquid & semi-liquid filling & packaging machinery, blow molding machines and water treatment systems with reliable quality & pretty good after sale service with CE certification & ISO9000:2001 certification.
| No. | Production line category | Capacity |
| 1 | Hot filling production line | 3,000-36,000BPH |
| 2 | Beverage processing System | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 3 | Bottled water production line | 3,000-36,000BPH |
| 4 | 5L Large capacity bottled water production line | 700-5,000BPH |
| 5 | Carbonated drink production line | 3,000-18,000BPH |
| 6 | Pulp juice production line | 5,000-22,000BPH |
| 7 | Oil Filling line | 3,000-10,000BPH |
| 8 | Linear Filling machine | 300-900BPH |
| 9 | Bottlle Unscrambler | Up to 20,000BPH |
| 10 | Barrelled water production line | 300-2000 bucket/H |
| 11 | Water Treatment system | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 12 | OPP Labeling machine | 6,000-24,000BPH |
| 13 | PVC Shrink Sleeve Labeling machine | 6,000-24,000bph |
| 14 | Automatic Blow molding machine | 1,000-7,000BPH |
| 15 | Full-automatic Film Wrapper & Shrinker | 8-20 Packs per Minutes |
