5 GALLON BARREL BOTTLE FILLING MACHINE

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

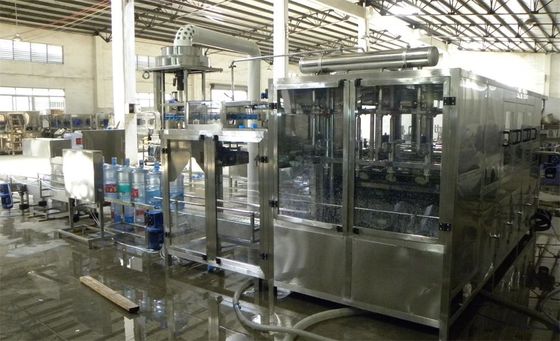

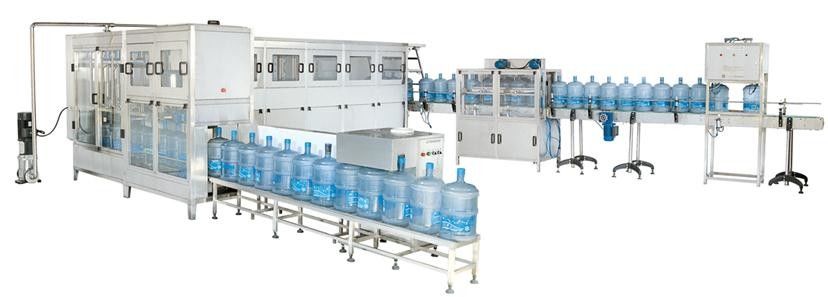

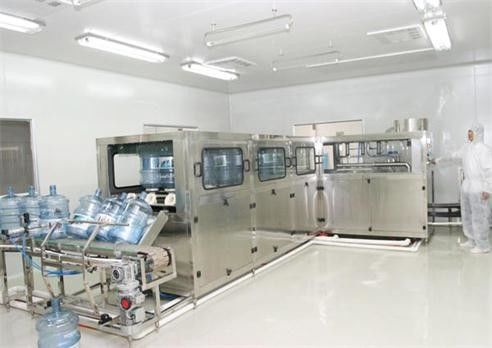

5 GALLON BARREL BOTTLE FILLING MACHINE

5 GALLON BARREL BOTTLE FILLING MACHINE
5 GALLON BARREL BOTTLE FILLING MACHINE

Large Image :  5 GALLON BARREL BOTTLE FILLING MACHINE

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Highlight:

BARREL BOTTLE FILLING MACHINE

,

5 GALLON BOTTLE FILLING MACHINE

5 GALLON BARREL BOTTLE FILLING MACHINE

5 Gallon Bottle Filling Machin

3 in 1 Rotary Filling machine



WFC series ----a variety of fully automatic washing filling capping machinery for large bottle --5 gallon bottle ( 18.9Liter bottle, 3gallon and 6gallon is available) water line
Application: still water, pure water, RO water, mineral water, sparkling water, etc.
Suitable for: 3 gallon, 4 gallon and 5 gallon bottles
Filling system: gravity filling
Production capacity: 120BPH– 1,500BPH (5 gallon)
Technical featuresof 5 gallon water filling machine
The machine integrates rinser, filler and capper together.
The machine is of stainless steel, resisting corrosion and easy to clean.
The main electrical components and gas circuit elements are all of international brand.
Equipment structureof 5 gallon water filling machine
Automatic bottle loader
Barrel rinser
Filler
Capper.
According to the customer’s requirement, the machine could be equipped with automatic cap separator, automatic leakage inspector, barrel washer, automatic cap loader, shrink wrapper, etc.

Standard Features of WGF series 5 Gallon Bottle washing filling capping machinery:
1. Full-automatic PLC control full-automatic working filling level filling time adjustable.
2. Food Class 304 or 316L stainless steel contact parts.
3. All 304 stainless steel construction.
4. Food Class PVC 304S. S. Or 316L S. S. Pipeline depends on the models.
5. Full-automatic PLC control filling level filling time adjustable.
6. 2 to 12 internal bottles or external bottle washing stops with circular hot. Alkali detergent ozone tap pure water depends on the models.
7. Linear cylinder-pushed filling style supper high precision ( when the capacity up to 800BPH adopt the rotary filling system ).
8. Automatic cylinder-pushed capper system.
9. Automatic cylinder-pushed empty bottles loading system to load the empty to the Washer Filler Capper full-automatically.
10. Food Class stainless steel washing pumps and filling pumps.
11. Food Class Fiber Glass clear windows.
12. No bottle no washing no bottles no filling no bottle no capping.
13. Available model of our 5 gallon filling machine ( washer filler capper ) 60 bottles per hour to 1500 bottles per hour.
