Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5 Gallon Filling Machine | Filling Liquid: | Mineral Water |
|---|---|---|---|
| Driven Type: | Electric | Material: | 304 Stainless Steel |
| Brand: | Labelong | Capacity: | 900BPH |
| Bottle Size: | 5 Gallon | Weight: | 3500kgs |
| High Light: | 900BPH Automatic Water Bottle Filling Machine,18.9Liter Bottle Automatic Water Bottle Filling Machine,900BPH Automated Bottle Filling Machine |
||

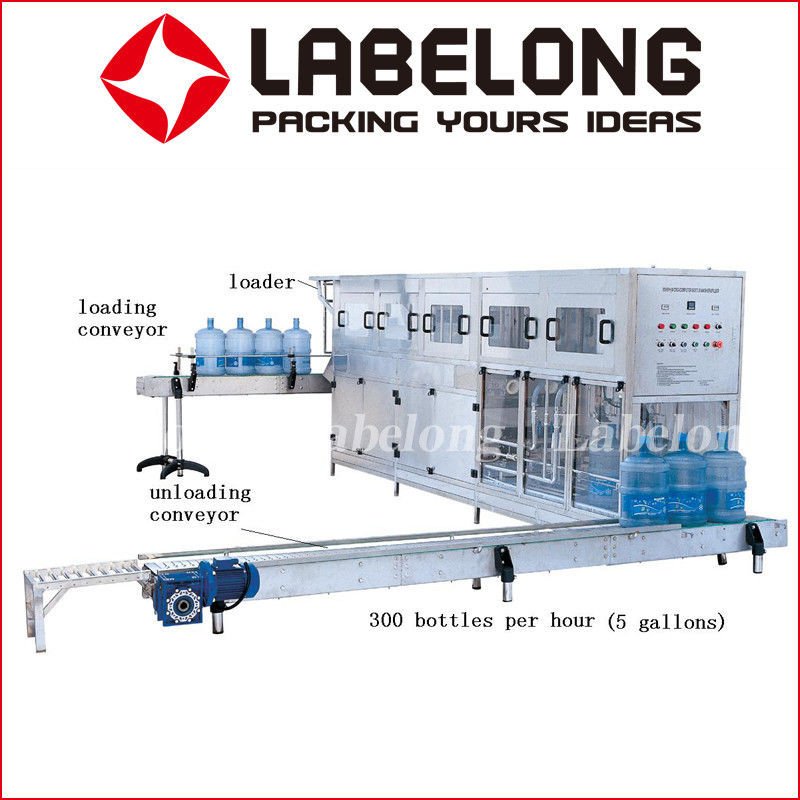

Automatic water bottle filling machine consists of washing, filling and capping, which is applied to the production of 3 or 5 gallon purified water and mineral water. The capacity can meet different production requirements from 100 to 1200 BPH.

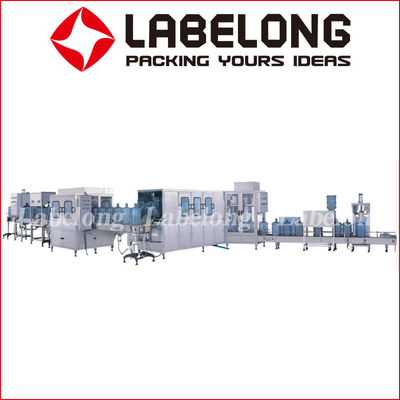

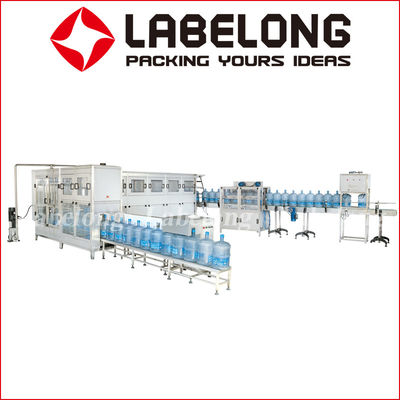

The entire line includes the following optional equipment: Cap pulling machine, leak detection machine, brushing machine, automatic barrel loading device, washing / filling / capping three-in-one machine, barrel neck thermal machine, bagging machine, palletizer and etc. This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging. It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
Automatic Water Bottle Filling Machine Parameter
| Model | WFC-100 | WFC-200 | WFC-300 | WFC-450 | WFC-600 | WFC-900 | WFC-1200 |
| Rated Production Capacity (bph) |
100 | 200 | 300 | 450 | 600 | 900 | 1200 |
| Installed Capacity | 1.3 | 1.7 | 3.8 | 3.8 | 7.5 | 9.7 | 13.5 |
| Related Voltage(V) | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ |
| Weight (kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Configuration List:

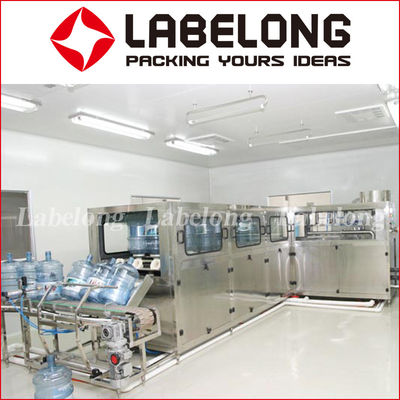

Our factory
Shipping photo
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
