Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5 Gallon Pure Water Filling Machine | Filling Liquid: | Pure Water |
|---|---|---|---|
| Capacity: | 200BPH | Voltage: | 380V/HZ |
| Material: | 304 Stainless Steel | Weight: | 800kg |
| Bottle Size: | 5 Gallon | Bottle Type: | PET Bottle |
| High Light: | 200BPH Water Bottle Filling Machine,18.9Liter Bottle Water Bottle Filling Machine,200BPH Auto Water Filling Machine |
||

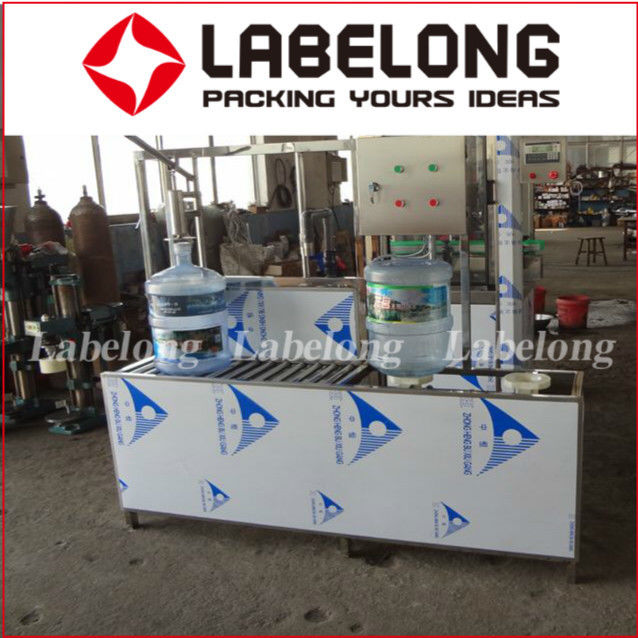

High quality cheaper price Semi-Automatic 5 gallon barrel bottle mineral water Filling Machine
Application: mineral water, drinking water, pure water
Capacity: 80-100 bottles / hour
Containers applied for: 3/5 gallon barrel bottle
Filling system: gravity filling
Progress
WFC series ----a variety of fully automatic washing filling capping machinery for large bottle --5 gallon bottle ( 18.9Liter bottle, 3gallon and 6gallon is available) water line
1. Full-automatic PLC control, full-automatic working, filling level, filling time adjustable.
2. Food Class 304 or 316L stainless steel contact parts.
3. All 304 stainless steel construction.
4. Food Class PVC, 304S. S. Or 316L S. S. Pipeline, depends on the models.
5. Full-automatic PLC control, filling level, filling time adjustable.
6. 2 to 12 internal bottles or external bottle washing stops with circular hot. Alkali, detergent, ozone, tap, pure water, depends on the models.
7. Linear cylinder-pushed filling style, supper high precision, ( when the capacity up to 800BPH, adopt the rotary filling system ).
8. Automatic cylinder-pushed capper system.
9. Automatic cylinder-pushed empty bottles loading system to load the empty to the Washer Filler Capper full-automatically.
10. Food Class stainless steel washing pumps and filling pumps.
11. Food Class Fiber Glass clear windows.
12. No bottle no washing, no bottles no filling, no bottle no capping.
13. Available model of our 5 gallon filling machine ( washer filler capper ) 60 bottles per hour to 1500 bottles per hour.
Parameter
| Model | WFC-100 | WFC-200 | WFC-300 | WFC-450 | WFC-600 | WFC-900 | WFC-1200 |
| Rated Production Capacity (bph) | 100 | 200 | 300 | 450 | 600 | 900 | 1200 |
| Installed Capacity | 1.3 | 1.7 | 3.8 | 3.8 | 7.5 | 9.7 | 13.5 |
| Related Voltage(V) | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ |
| Weight (kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Configuration List:
Our factory
Shipping photo
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
| No. | Production line category | Capacity |
| 1 | Hot filling production line | 3,000-36,000BPH |
| 2 | Beverage processing System | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 3 | Bottled water production line | 3,000-36,000BPH |
| 4 | 5L Large capacity bottled water production line | 700-5,000b/h |
| 5 | Carbonated drink production line | 3,000-18,000b/h |
| 6 | Pulp juice production line | 5,000-22,000BPH |
| 7 | Oil Filling line | 3,000-10,000BPH |
| 8 | Linear Filling machine | 300-900BPH |
| 9 | Bottlle Unscrambler | Up to 20,000BPH |
| 10 | Barrelled water production line | 300-2000 bucket/H |
| 11 | Water Treatment system | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 12 | OPP Labeling machine | 6,000-24,000BPH |
| 13 | PVC Shrink Sleeve Labeling machine | 6,000-24,000bph |
| 14 | Automatic Blow molding machine | 1,000-7,000BPH |
| 15 | Full-automatic Film Wrapper & Shrinker | 5-20packs |
