Product Details:
Payment & Shipping Terms:
|
| Product Name: | 100BPH 5 Gallon Filling Machine | Filling Liquid: | Mineral Water |
|---|---|---|---|
| Capacity: | 100BPH | Material: | 304 Stainless Steel |
| Brand: | Labelong | Control: | PLC |
| Bottle Type: | PET Bottle | Bottle Size: | 5 Gallon |
| High Light: | 100BPH 5 Gallon Filling Machine,PLC 5 Gallon Filling Machine,100BPH Water Bottle Filling Machine |
||

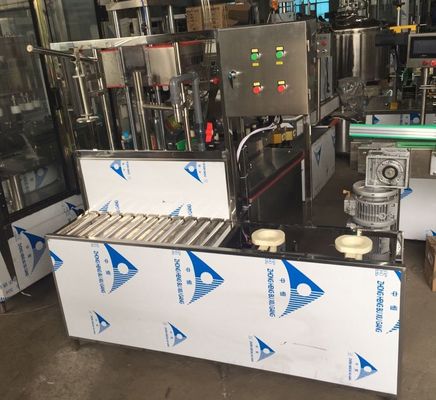

Semi Automatic Barrel Bottle 100BPH 5 Gallon Filling Machine

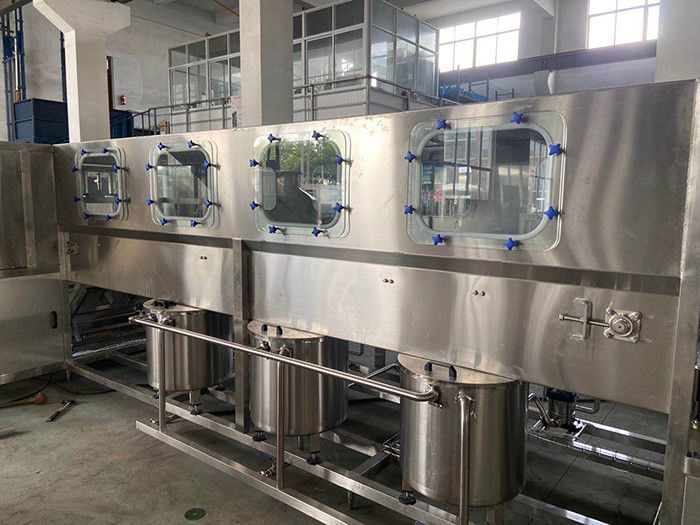

This 5 gallon filling machine specially produces 5 gallons and 3 gallons drinking water. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. The sealer can seal barrel caps automatically. The line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging.
5 Gallon Filling Machine Parameter
| Model | WFC-100 | WFC-200 | WFC-300 | WFC-450 | WFC-600 | WFC-900 | WFC-1200 |
| Rated Production Capacity (bph) |
100 | 200 | 300 | 450 | 600 | 900 | 1200 |
| Installed Capacity | 1.3 | 1.7 | 3.8 | 3.8 | 7.5 | 9.7 | 13.5 |
| Related Voltage(V) | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ |
| Weight (kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Configuration List
Our factory
Shipping photo
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
| No. | Production line category | Capacity |
| 1 | Hot filling production line | 3,000-36,000BPH |
| 2 | Beverage processing System | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 3 | Bottled water production line | 3,000-36,000BPH |
| 4 | 5L Large capacity bottled water production line | 700-5,000b/h |
| 5 | Carbonated drink production line | 3,000-18,000b/h |
| 6 | Pulp juice production line | 5,000-22,000BPH |
| 7 | Oil Filling line | 3,000-10,000BPH |
| 8 | Linear Filling machine | 300-900BPH |
| 9 | Bottlle Unscrambler | Up to 20,000BPH |
| 10 | Barrelled water production line | 300-2000 bucket/H |
| 11 | Water Treatment system | 1,000 Ltrs/H to 10,000 Ltrs/H |
| 12 | OPP Labeling machine | 6,000-24,000BPH |
| 13 | PVC Shrink Sleeve Labeling machine | 6,000-24,000bph |
| 14 | Automatic Blow molding machine | 1,000-7,000BPH |
| 15 | Full-automatic Film Wrapper & Shrinker | 5-20packs |
