Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5 Gallon Filling Machine | Capacity: | 100BPH |
|---|---|---|---|
| Voltage: | 380V/HZ | Material: | 304 Stainless Steel |
| Control: | PLC | Filling Liquid: | Mineral Water |
| Bottle Type: | PET Bottle | Bottle Size: | 5 Gallon |
| High Light: | 316LSS 5 Gallon Filling Machine,Stianless Steel 5 Gallon Filling Machine,100BPH Manual Bottle Filling Machine |
||

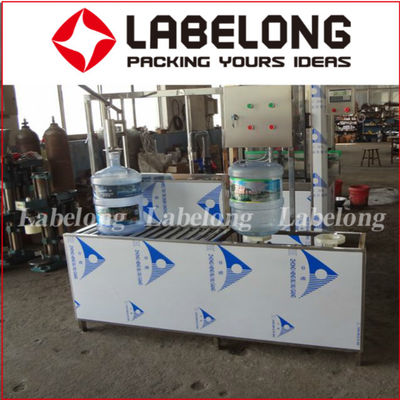

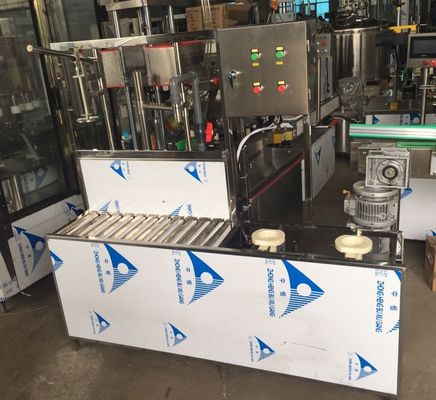

Hand Water Washing Capping 5 Gallon Filling Machine
1. Suitable for the filling of 3-5 gallons of pure water, mineral water and pure water, the output is 60 bottles per hour to 1500 bottles per hour.
2. Linear cylinder-pushed filling style, supper high precision, ( when the capacity up to 800BPH, adopt the rotary filling system ).
3. PLC programmable system control, integrated management, high automation program, automatic cylinder-pushed capper system.
4. The machine is an integrated machine for flushing, filling and capping. It adopts cylinder pressure capping, the valve has CAP backflow function, and the lid is designed for one hour output and the display of flushing pressure.
5. Food Class 304 or 316L stainless steel contact parts, food class stainless steel washing pumps and filling pumps.
Parameter
| Model | WFC-100 | WFC-200 | WFC-300 | WFC-450 | WFC-600 | WFC-900 | WFC-1200 |
| Rated Production Capacity (bph) |
100 | 200 | 300 | 450 | 600 | 900 | 1200 |
| Installed Capacity | 1.3 | 1.7 | 3.8 | 3.8 | 7.5 | 9.7 | 13.5 |
| Related Voltage(V) | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ |
| Weight (kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Configuration List

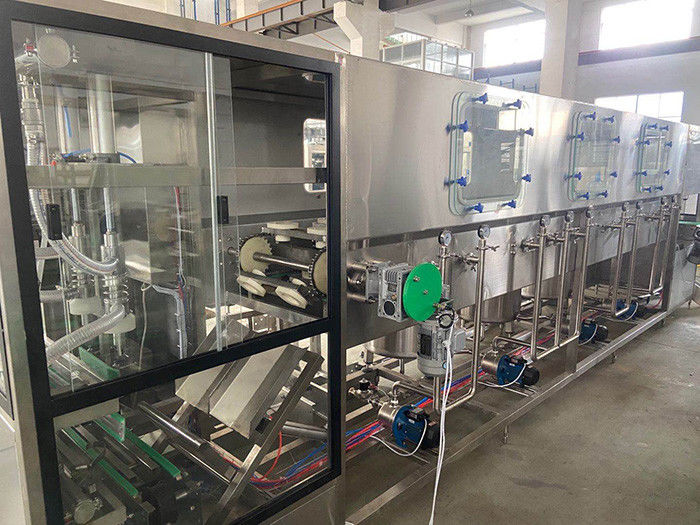

Our factory
Shipping photo
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
