Small Capacity Beer SUS304 Wine Bottle Filler Machine 1000 BPH

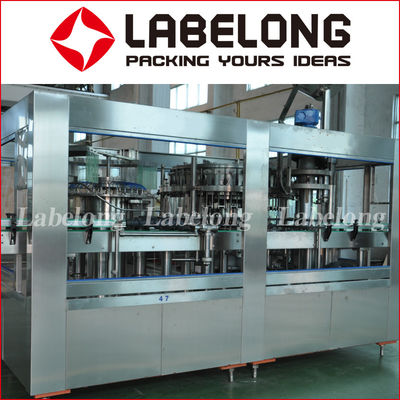

Large Image : Small Capacity Beer SUS304 Wine Bottle Filler Machine 1000 BPH

Product Details:

Place of Origin:	China
Brand Name:	Labelong
Certification:	CE
Model Number:	RFC-BC

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	20000/SET
Packaging Details:	Wooden case
Delivery Time:	20-40 days
Payment Terms:	T/T OR L/C
Supply Ability:	50-100SET/YEAR

Contact Now

Detailed Product Description

Product Name:	1000 BPH Glass Bottle Packaging Machine	Material:	SUS304
Speed:	1000-10000bph	Control:	PLC
Filling Material:	Beer	Automatic:	YES
Power:	2.5-8kw	Weight:	2000kg
Highlight:	SUS304 Wine Bottle Filler Machine , 1000BPH Wine Bottle Filler Machine , PLC Control Wine Filling Machine

Small Capacity Beer SUS304 1000 BPH Wine Bottle Filler Packaging Machine

Glass Bottle Beer/carbonated soft drink filling machine adopts continuous automatic control for liquid level in the filling bowl, double-leader type centering cover, twice vacuumizing, low-temperature equal-pressure filling, automatic concentrated lubrication and the capping heads have been installed with overloading protection device.

The filling machine has the function of closeing filling valves when there is broken bottle, and washing away broken bottle. The vent pipe has automatic foam-removing device.

The crafty cap-unscrambling and capping design with overloading protection and the function is sufficient. It is controlled by PLC.

Glass Bottle Packaging Machine Parameter

Model	RFC-BC 12/6	RFC-BC 18/6	RFC-BC 24/8	RFC-BC 32/8
Capacity	1000-1200	2000-3000	4000-5000	6000-8000
Motor power	1.5	1.5	3.75	5.6
Dimension	1700x1150x2300	1800x1350x2300	1900x1600x2500	2100x1850x2500
Total weight	2000	2400	3000	3500
