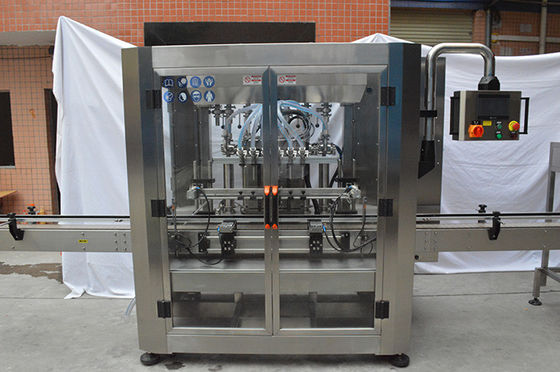

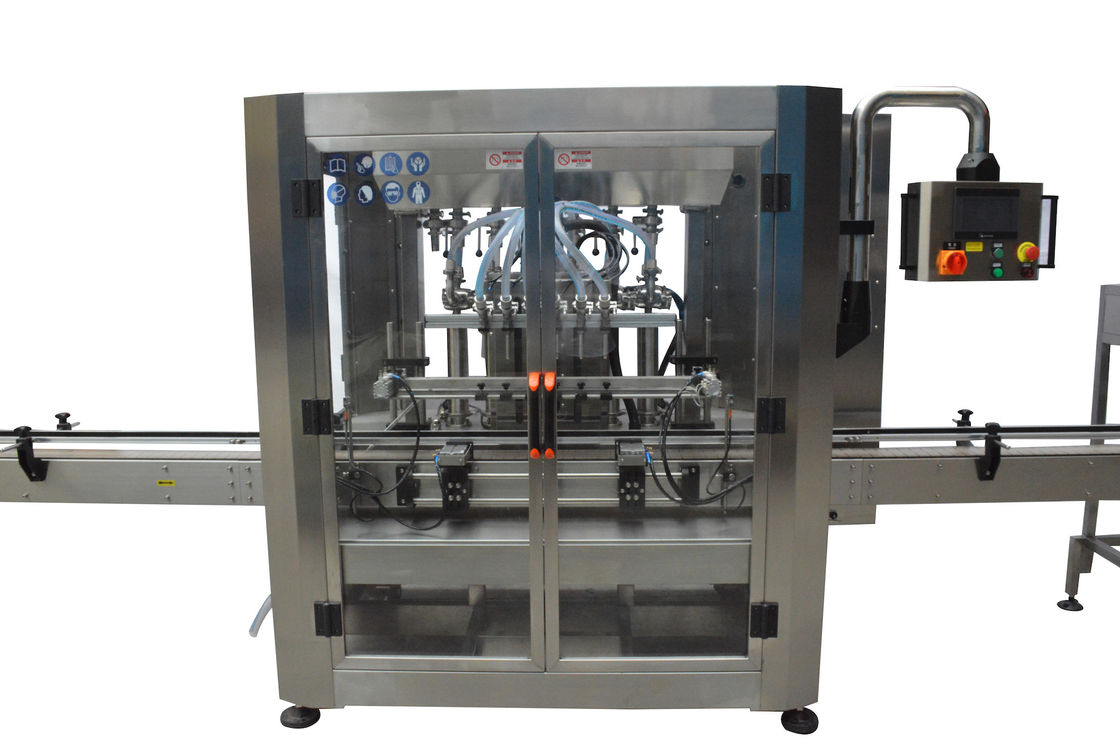

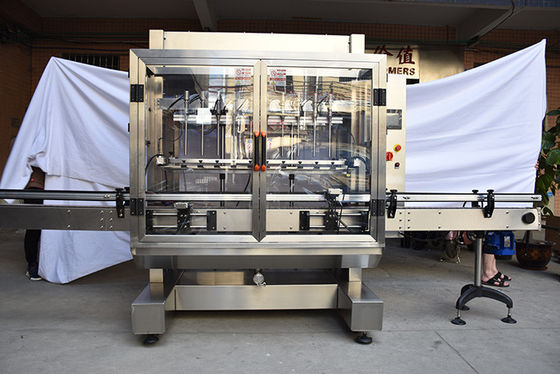

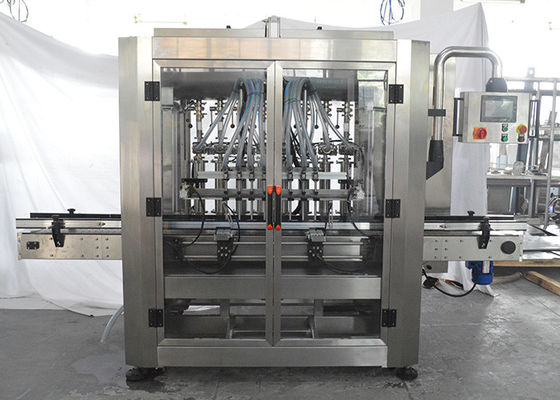

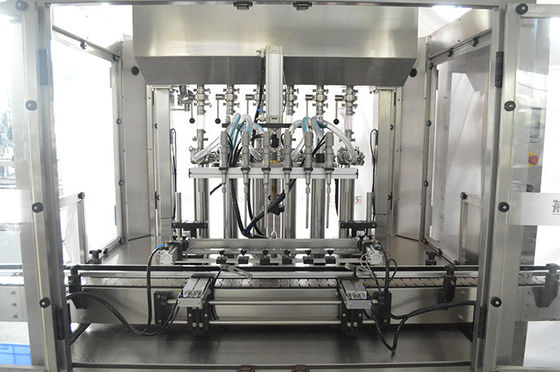

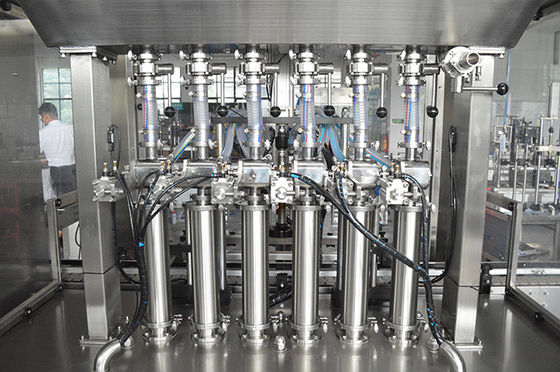

Sanitary Piston Linear Bottle Filling Machine

Sanitary Piston Linear Bottle Filling Machine
Sanitary Piston Linear Bottle Filling Machine

Large Image :  Sanitary Piston Linear Bottle Filling Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: L-12H

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD4000-20000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Filling Liquid: Hand Soap Product Name: Automatic Filling Machine
Capacity: 2000BPH Material: SUS304
Brand: Labelong Control: PLC
Bottle Type: Round/square Bottle Application: Yogurt, Syrup, Juice,hand Sanitary
Voltage: 380V Warranty: 1 Year
Highlight:

Sanitary Piston Linear Bottle Filling Machine

,

PET Linear Bottle Filling Machine 380V

,

Hand Soap PLC Bottle Filling Machine

Automatic PET Bottle hand soap/sanitary piston filling capping labeling machine





Our liquid filling machines usefully automated multi-head filling systems using either vacuum level filling or volumetric piston filling technologies. If you cannot find a suitable machine in our standard range, please contact us to discuss your individual requirements – our engineering team is on hand to discuss modifications or even bespoke machine design solutions.





Application: detergent, oil, toilet cleaner, soap water, sauce, jam, honey,detergent,syrup


Capacity: 500-3000 bottles / hour (500ML)


Containers applied for: PET /glass bottle of all volumes and shapes


Filling system: piston filling.





Features:
1: Touch screen operation interface

2: The filling accuracy can reach ±1% (depending on the product, the filling accuracy is different)

3: The filling cylinder is treated and ground by hard chromium, with a unique filling valve design, no leakage

4: With no bottle, no canning, automatic shutdown function for accumulated bottles

5: Design different positioning devices according to the actual situation of the bottle

6: The equipment is easy to clean, can be folded without tools, and can also be cleaned online or sterilized at high temperature

7: The housing material of the equipment is made of 304# stainless steel

8: The power mode adopts double servo drive, which is more stable and durable.
Note: The filling range and speed can be designed according to user needs.



Technical Parameters:



Machine dimension 2000mm(L)* 1200mm(W)*2500mm(H)
Filling heads Accorting to production capacity
Filling range Customized
Production capacity: 1000b/h(take 500ml foamy product as test) for 6 filling heads
Filling Tolerance Filling machine for volume ≤500ml----±1g
Filling machine for volume ≥500ml----±2g
Power supply AC380V,50Hz; AC220V,50Hz (customized)
Air consumption 0.55-0.65 Mpa clean and stable compressed ai
Diameter of bottle mouth Customized



Sanitary Piston Linear Bottle Filling Machine 0

Sanitary Piston Linear Bottle Filling Machine 1Sanitary Piston Linear Bottle Filling Machine 2
Sanitary Piston Linear Bottle Filling Machine 3

Sanitary Piston Linear Bottle Filling Machine 4



Configuration List:
Sanitary Piston Linear Bottle Filling Machine 5
Company profie

Our ProductionLabelong focus on filling, packing & water treatment field, our factory takes up 60000 square meters ,more than 30 Professinal Tehchnicians and workers which is one of the professional & reliable Chinese manufacturers & provider for liquid & semi-liquid filling & packaging machinery, blow molding machines and water treatment systems with reliable quality & pretty good after sale service with CE certification & ISO9000:2001 certification.


No. Production line category Capacity
1 Hot filling production line 3,000-36,000BPH
2 Beverage processing System 1,000 Ltrs/H to 10,000 Ltrs/H
3 Bottled water production line 3,000-36,000BPH
4 5L Large capacity bottled water production line 700-5,000BPH
5 Carbonated drink production line 3,000-18,000BPH
6 Pulp juice production line 5,000-22,000BPH
7 Oil Filling line 3,000-10,000BPH
8 Linear Filling machine 300-900BPH
9 Bottlle Unscrambler Up to 20,000BPH
10 Barrelled water production line 300-2000 bucket/H
11 Water Treatment system 1,000 Ltrs/H to 10,000 Ltrs/H
12 OPP Labeling machine 6,000-24,000BPH
13 PVC Shrink Sleeve Labeling machine 6,000-24,000bph
14 Automatic Blow molding machine 1,000-7,000BPH
15 Full-automatic Film Wrapper & Shrinker 8-30 Packs Per Minutes



Labelong Packaging not only have a large range of quality packaging machinery parts at very competitive prices, we also have an experienced team of Customer Service Engineers who can perform installations, preventative maintenance and general maintenance for your organisation.

Contact us today to discuss your manufacturing challenges and how we can assist your company to increase production and profitibilty.

Labelong Packaging's services are constantly evolving, providing solutions for our customer's changing and expanding requirements.




Shipping

Sanitary Piston Linear Bottle Filling Machine 6







RFQ
Q1: Are you a trading company or a manufacturer?

A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.



Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you the high quality machines with one year guarantee and supply long life technical support.



Q3: When can I get my machines after I paid?

A: The delivery time is based on the exact machine you confirmed.



Q4: How can I install my machines when they arrive?

A: We will send our engineers to your factory to install the machines and train your staffs how to operate

the machines.



Q5: How about the spare parts?

A: After we deal with all the things, we will offer you a spare parts list for you refer.
