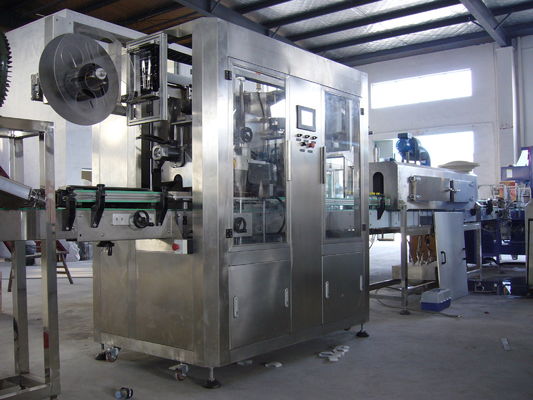

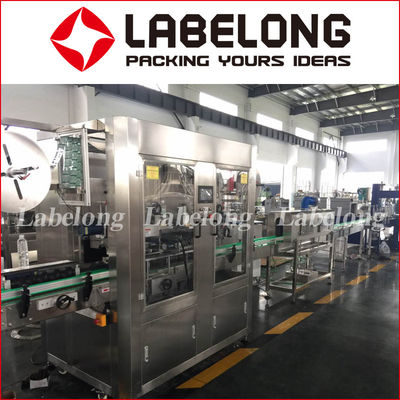

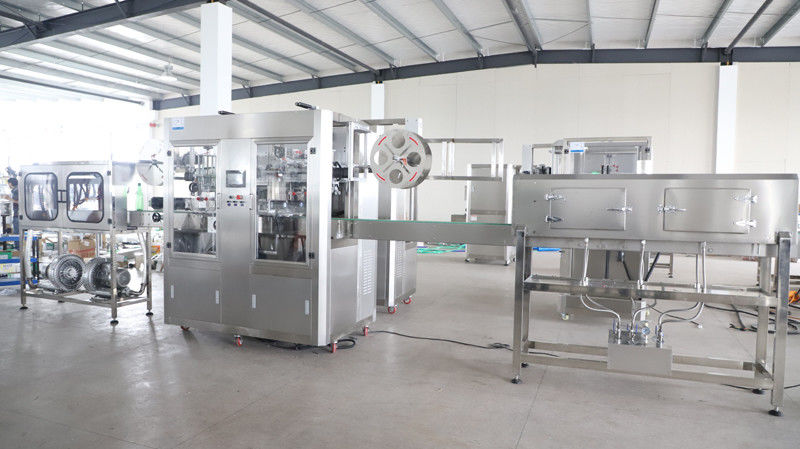

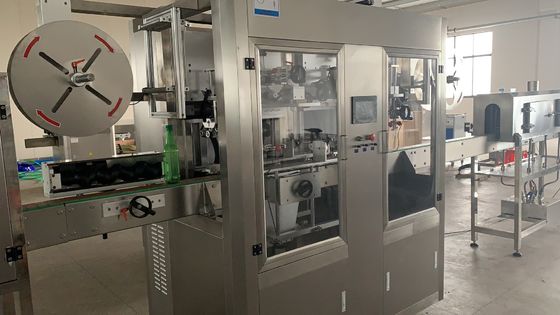

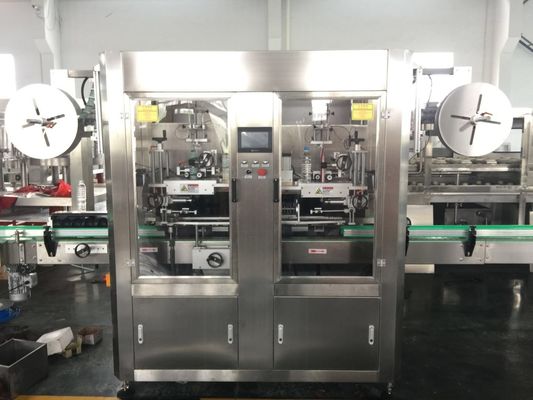

Double Heads Shrink Sleeve Labeling Machine

Double Heads Shrink Sleeve Labeling Machine
Double Heads Shrink Sleeve Labeling Machine Double Heads Shrink Sleeve Labeling Machine Double Heads Shrink Sleeve Labeling Machine Double Heads Shrink Sleeve Labeling Machine Double Heads Shrink Sleeve Labeling Machine

Large Image :  Double Heads Shrink Sleeve Labeling Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: LBL-100D

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD12000-15000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-80SET/YEAR
Detailed Product Description
Bottle Type: Round Bottle Material: SUS304 Stainless Steel
Speed: 6000-12000BPH Control: PLC Control, Touch Screen
Label Type: PVC PET Shrink Label Tunnel Length: 2.4m
Steam Generator: 24kw Voltage: 220V/50HZ,SINGLE PHASE
Driven Type: Electric Application: Food,Medical,Beverage,Chemical,Commodity
Power: 2.5KW Automatic Grade: Automatic
Type: Labeling Machine Packaging Material: Wood
Highlight:

12000BPH Shrink Sleeve Labeling Machine

,

SUS304 Shrink Sleeve Labeling Machine

,

24kw Double Heads Shrink Label Machine





Automatic Drinking Water bottle body and cap double heads shrink sleeve labeling Machine





Machine Specification

1. This kind of  sleeve labeling machine is suitable for all kinds of bottles of fruit juice tea drinks dairy products pure water condiments beer sports drinks and other food and beverage industry not only has a highly precise position and contraction more prominent bottle perfect bottle.
2. The high stability of the mechanical structure the whole machine made of 304 stainless steel and aluminum alloy frame cover protective rigid frame solid rust.
3. High-quality positioning accuracy all mechanical transmission design the use of forced sleeve labels.
4. Low maintenance cost of consumables low cost of discarding this machine blade easy to replace the cost burden is low..
5. The machine is simple and elegant structural components ensures low failure rate easy maintenance.
6. A full range of security principal security box in fact thoughtful design.
7. Synchronous bottles delivery and stable;
8. Adjustable cutter cutting maneuver tool life doubled.
9. The man-machine interface operating more humane;

10. Automatic high quality PLC / tuoch screen control

11. Full body 304 stainless steel.

12. No bottle no labeling .





Technical data

Model LBL-100D
Speed MAX 100BPM
Main machine size 1500*860*2000 L*W*H (mm)
Machine body Stainless steel SUS304
Electric power AC3-PHASE 220V/380V
Input power of machine 3KW
Applicable diameter of bottle φ25mm –φ125mm
Bottle height Max 350mm special can be designed
Height of shrink label 25 mm ~280mm, special can be designed
Thickness of shrink label 0.035 mm~0.13 mm(PVC PET OPS)
Paper inner core 5”~10” Free adjustment
Shrink tunnel Electrical / steam
Weight Around 900kg



Double Heads Shrink Sleeve Labeling Machine 0

Double Heads Shrink Sleeve Labeling Machine 1

Double Heads Shrink Sleeve Labeling Machine 2

Double Heads Shrink Sleeve Labeling Machine 3
