Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw

Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw
Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw

Large Image :  Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: AL-100DF

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: 5000-10000
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100set per year
Detailed Product Description
Voltage: 220v 1ph Automatic Grade: Automatic Machine
Type: Double Heads Labeling Machine Application: Food,Medical,Beverage,Chemical Field
Material: Sus304 Stainless Steel Labeling Speed: 30-70bottles/min
Driven Type: Electric
Highlight:

1.5kw Automatic Bottle Labeling Machine

,

PLC Automatic Bottle Labeling Machine

,

1ph Double Heads Bottle Labeling Equipment

Automatic stainless steel front and back sides bottle adheisve labeling machine





Main Feature

1. This machine is applied to flat bottle ,shampoo bottle, oil bottle ,Beverages etc.
2. PLC control, full-automatic workingTouch-screen control panel, easy operate l The inaccurate labeling is eliminated because of the structure of three rollers capable of locating labeling position. Any labeling post can be realized, AB symmetric labeling, with the fixed point and position labeling (need to increase position electric eye and product positioning)
3.The machine can be assemble positioning electric eyes and pressure inflatable, greatly improving the precision of thin and transparent bottle label
4. The machine can customize production line, Stand-alone operation can add automatic feeding mechanism.
5. Sensor control, no label, machine stop
6.
304 stainless steel machine main body, aluminum frame.

7. All the botle with double sides can use this machine !


Specification of machine

Model AL-100DF
Labeling Speed 30-60pcs/m
Suitable to product Diameter φ8mm~30mm
Suitable to product height 25-80mm
Suitable label size 20-100mm(width)
Labeling accuracy ± 1mm
Label inner diameter 76mm
Label outer diameter 280mm
Machine Dimension 2200(L)* 1580(W) * 1600(H) mm
Net Weight Around 300kgs
Power Supply 220V 50HZ can be adjustable
Power 1.5kw
Conveyor length 2m





Main Configuration list (depends on customer’s requirement)

1 Part name QTY Main material
Labeling head 1set AL-alloy,stainless steel,acrylic, Sponge,PU roller
Adjusting mechanism 1set AL-alloy,stainless steel Brass, Nylon
Touch screen 1 set AL-alloy,stainless steel
2 Electronics QTY Spec. or brand
Label sensor 1 set Sick
Objective sensor   Panasonic
PLC 1set Panasonic/Mitsuibishi
Touch screen 1 set Siemens
Cylinder 1 set Airtac
Main motor 1 set XINGFENG CHINA

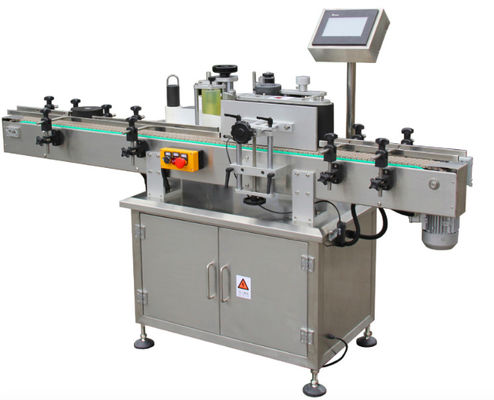

Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw 0

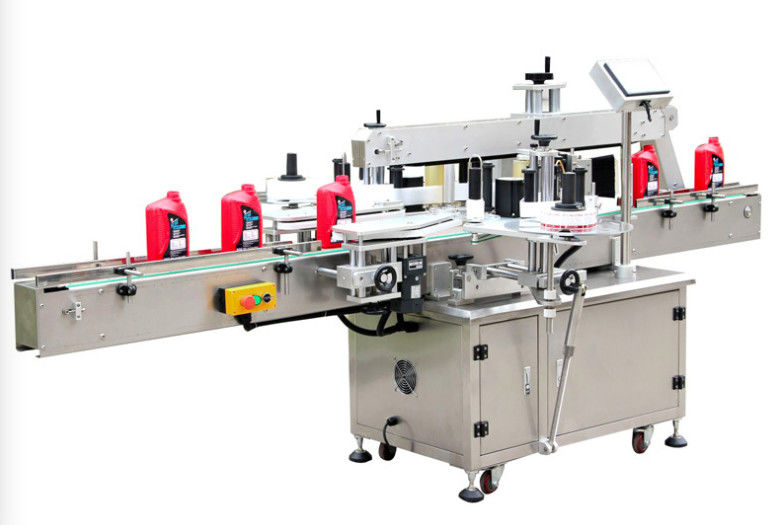

Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw 1


Our machine list


No. Production line category Capacity
1 Hot filling production line 3,000-36,000BPH
2 Beverage processing System 1,000 Ltrs/H to 10,000 Ltrs/H
3 Bottled water production line 3,000-36,000BPH
4 5L Large capacity bottled water production line 700-5,000b/h
5 Carbonated drink production line 3,000-18,000b/h
6 Pulp juice production line 5,000-22,000BPH
7 Oil Filling line 3,000-10,000BPH
8 Linear Filling machine 300-900BPH
9 Bottlle Unscrambler Up to 20,000BPH
10 Barrelled water production line 300-2000 bucket/H
11 Water Treatment system 1,000 Ltrs/H to 10,000 Ltrs/H
12 OPP Labeling machine 6,000-24,000BPH
13 PVC Shrink Sleeve Labeling machine 6,000-24,000bph
14 Automatic Blow molding machine 1,000-7,000BPH
15 Full-automatic Film Wrapper & Shrinker 5-20packs

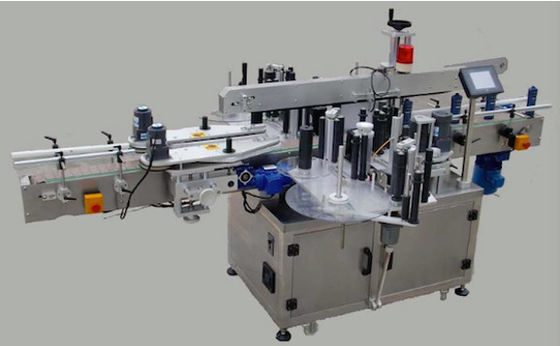

Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw 2

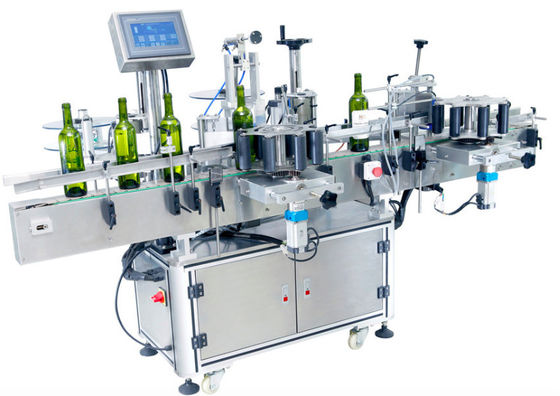

Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw 3

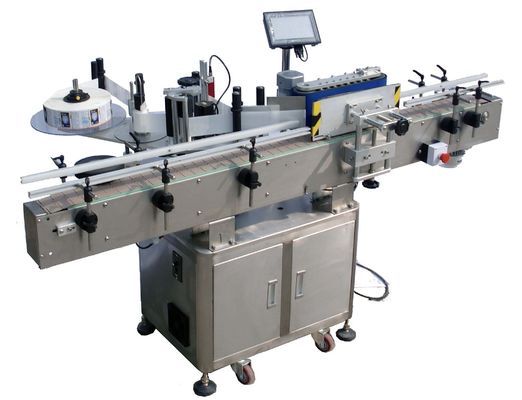

Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw 4

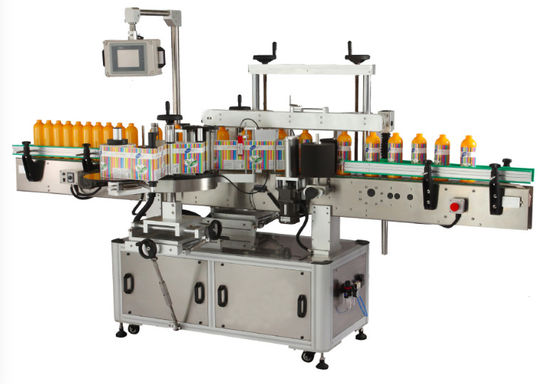

Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw 5


Double Heads Automatic Bottle Labeling Machine PLC Controled 1.5kw 6
