Hot Melt Automatic Water Bottle Labeling Machine OPP Roll Fed

Hot Melt Automatic Water Bottle Labeling Machine OPP Roll Fed
Hot Melt Automatic Water Bottle Labeling Machine OPP Roll Fed

Large Image :  Hot Melt Automatic Water Bottle Labeling Machine OPP Roll Fed

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD30000-50000
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 20-30SET/YEAR
Detailed Product Description
Automatic Grade: Automatic Driven Type: Electric
Type: Labeling Machine Packaging Type: Bottles
Product Name: OPP Roll-fed/Hot-melt Labeling Product Name: OPP Labeling Machine
Bottle Type: Round Square Flat Pet Bottle Material: 304
Label: Opp Label Voltage: 220V/50HZ
Application: Food
Highlight:

Hot Melt Water Bottle Labeling Machine

,

OPP Roll Fed Bottle Labeling Machine

,

304SS Automatic Bottle Labeling Machine



OPP Roll fed Hot Melt Automatic water Bottle Labeling Machine



Container forms have become diverse and labels are now used for many types of containers such as plastic, glass, or metallic ones. When using labels, illustrations and logos are printed on the reverse side of a film. Labels are very effective for enhancing a products appeal, since the whole label can be used to display the design.

All kinds of products in Food and Beverage (Sauces, Spread, Prepared meal, Snacks, Soft drinks, Fruit juices, Water, Alcoholic drinks, etc.)
Dairy (Milk-based drink, Yogurt drink, Yogurt Cup, Coffee creamer, Ice cream, etc.)
Nutrition product/Supplement (Baby food, Healthy foods, etc.)
Home care (Laundry, Fabric care, Detergent, Cleaning products, etc.)
Personal Care (Hair care, Soap and Bath products, Oral care, Skin care, Cosmetics, etc.)
Capacity: 50-500BPM (500ml)



Feature:
PLC control system full-automatic working

Main engine is controlled by three-phase converter motor speed adjustable

Disc label-pasting and label-adsorbing

Include such mechanisms as label-providing belt-conveying label-cutting
wheels-attaching vacuum-adsorbing hot sol-conveyance

Hot sol providing machine is made in a hundred million Hertz.

VAC and PUMP don’t start working unless the hot sol machine gets to
designed temperature.

STOP(ALARM) installation for label running-out

STOP installation for pasting failure
.
Applied to different specifications of packing for food chemical medicine
cosmetic and daily necessities

Bottle material: Plastics glass steel etc

Made of stainless steel SUS#304 and imported T6 aluminum alloy after
being anode hardened

Adjustable label-pasting speed of main engine

Imported optical-fiber electronic eye

Horizontally adjustable main engine

On-line production simple and rapid installation

Alarm for missing label or gap

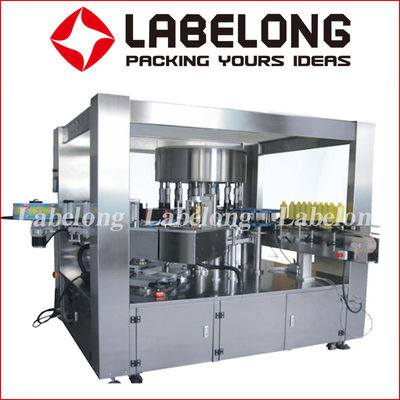

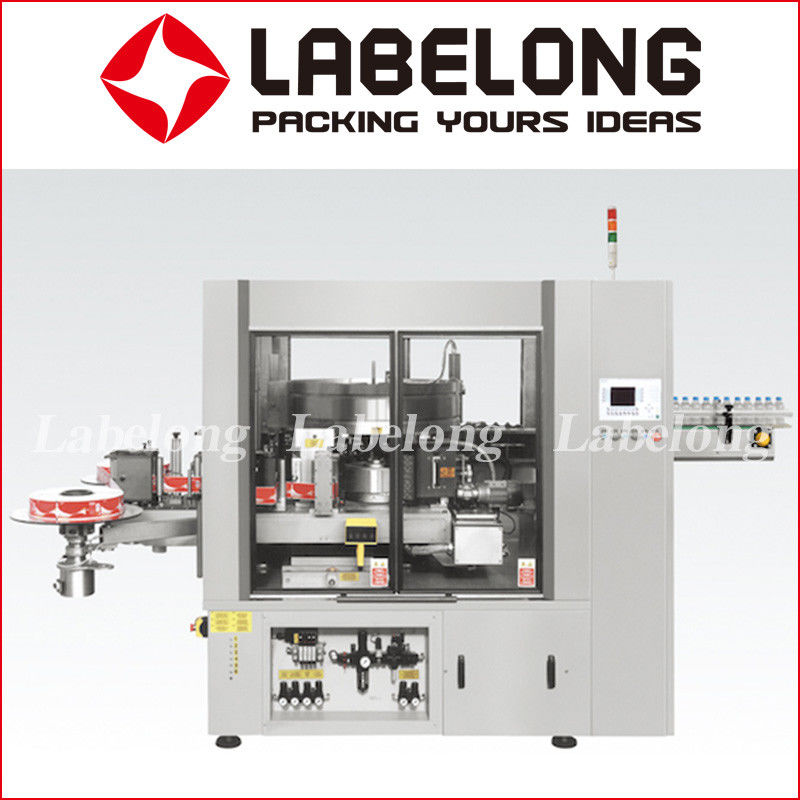

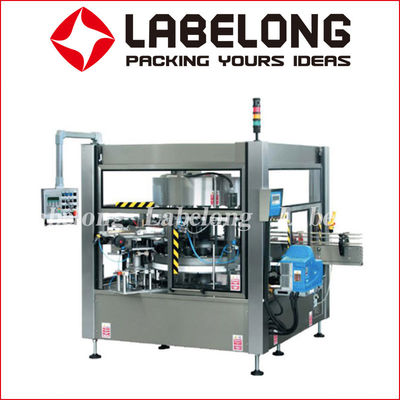

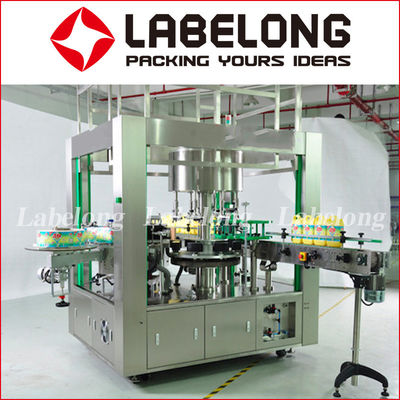

Hot Melt Automatic Water Bottle Labeling Machine OPP Roll Fed 0Hot Melt Automatic Water Bottle Labeling Machine OPP Roll Fed 1Hot Melt Automatic Water Bottle Labeling Machine OPP Roll Fed 2



Main engine size (length*width*height) 3500L x 1600W x 1650H mm
Main engine production speed limitation: 50-200 bottles/minute
Main engine power supply AC 3 phase220-380V
Main engine power 6-8kw
Label material OPP fed roll Paper
Label length 10mm -300mm
Bottle/can diameter 50- 106 mm
Junction line error +/-1.5mm



Our company
Labelong Packaging not only have a large range of quality packaging machinery parts at very competitive prices, we also have an experienced team of Customer Service Engineers who can perform installations, preventative maintenance and general maintenance for your organisation
Contact us today to discuss your manufacturing challenges and how we can assist your company to increase production and profitibilty.
Labelong Packaging's services are constantly evolving, providing solutions for our customer's changing and expanding requirements.

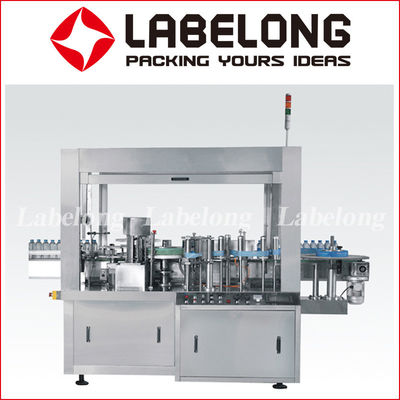

Hot Melt Automatic Water Bottle Labeling Machine OPP Roll Fed 3
