SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsAutomatic Bottle Labeling Machine

OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic

OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic
OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic

Large Image :  OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: LOPP-300

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD30000-50000
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 20-30SET/YEAR
Detailed Product Description
Automatic Grade: Automatic Machine Driven Type: Electricity
Type: Labeling Machine Packaging Type: Bottles
Product Name: OPP Roll-fed/Hot-melt Labeling Bottle Type: Round Square Bottle
Material: 304 Stainless Steel Label: Opp Label
Voltage: 220V/50HZ Application: Food, Chemical, Beverage
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support Condition: New
Highlight:

OPP Round Bottle Sticker Labeling Machine

,

Juice Beverage Bottle Sticker Labeling Machine

,

Automatic Bottle Labeling Machine 50HZ



Automatic Hot Melt Glue OPP Round Square Bottle Carbonated Drink Juice Beverage Drinking Water Bottle Labeling Machine



Application:

All kinds of products in Food and Beverage (Sauces, Spread, Prepared meal, Snacks, Soft drinks, Fruit juices, Water, Alcoholic drinks, etc.)
Dairy (Milk-based drink, Yogurt drink, Yogurt Cup, Coffee creamer, Ice cream, etc.)
Nutrition product/Supplement (Baby food, Healthy foods, etc.)
Home care (Laundry, Fabric care, Detergent, Cleaning products, etc.)
Personal Care (Hair care, Soap and Bath products, Oral care, Skin care, Cosmetics, etc.)





Feature:
PLC control system full-automatic working

Main engine is controlled by three-phase converter motor speed adjustable

Disc label-pasting and label-adsorbing

Include such mechanisms as label-providing belt-conveying label-cutting
wheels-attaching vacuum-adsorbing hot sol-conveyance

Hot sol providing machine is made in a hundred million Hertz.

VAC and PUMP don’t start working unless the hot sol machine gets to
designed temperature.

STOP(ALARM) installation for label running-out

STOP installation for pasting failure
.
Applied to different specifications of packing for food chemical medicine
cosmetic and daily necessities

Bottle material: Plastics glass steel etc

Made of stainless steel SUS#304 and imported T6 aluminum alloy after
being anode hardened

Adjustable label-pasting speed of main engine

Imported optical-fiber electronic eye

Horizontally adjustable main engine

On-line production simple and rapid installation

Alarm for missing label or gap



Parameter

Main engine size (length*width*height) 3500L x 1600W x 1650H mm
Main engine production speed 100-300 bottles/minute
Main engine power supply AC 3 phase220-380V
Main engine power 8kw
Label material OPP fed roll Paper
Label length 10mm -300mm
Bottle/can diameter 50- 106 mm
max.label width 200mm
Junction line error +/-1.5mm
machine weight 3000kg
glue temperature 120-160 degree
paper core 152mm
max.outside diameter 600mm

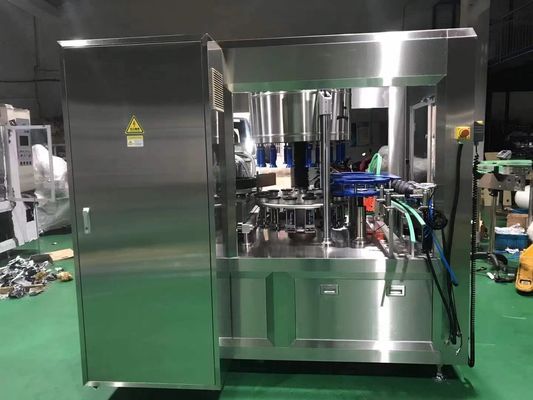

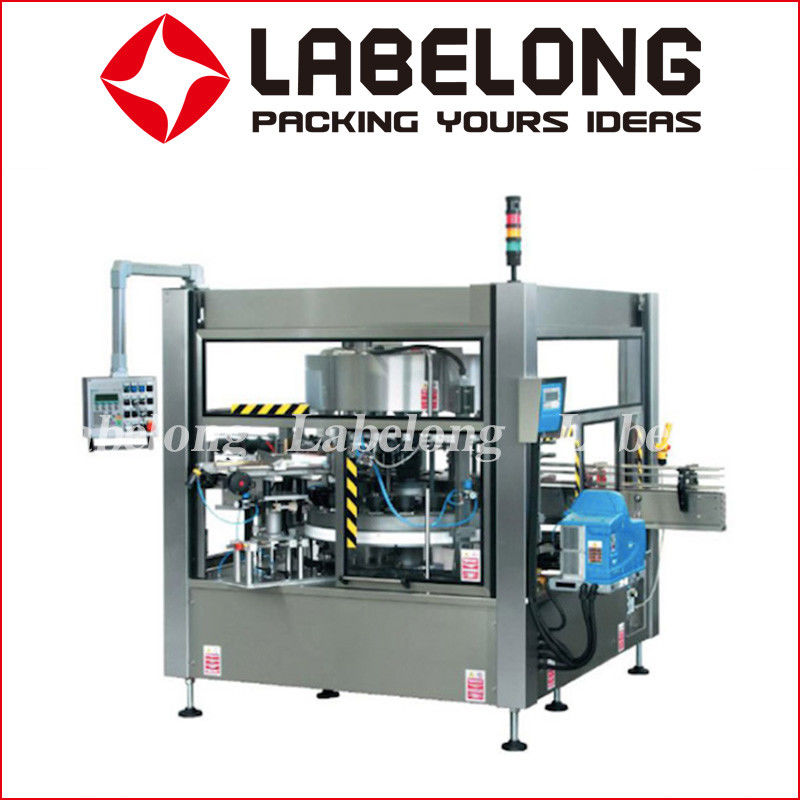

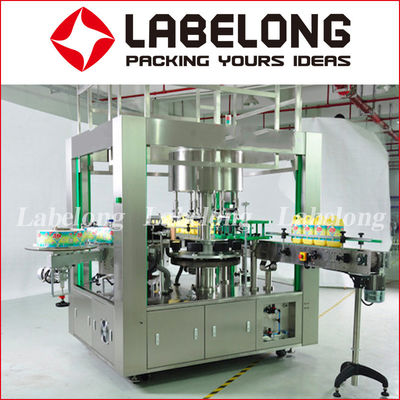

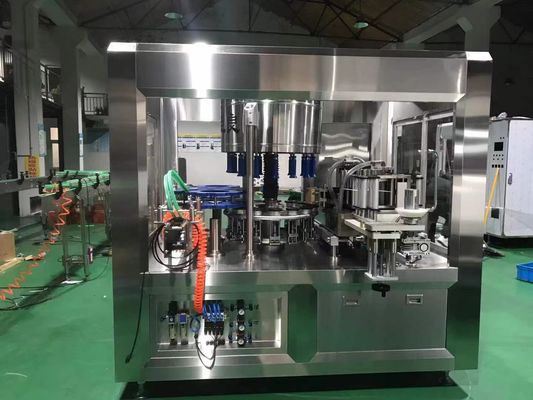

OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic 0OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic 1OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic 2OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic 3



Our company
Labelong Packaging not only have a large range of quality packaging machinery parts at very competitive prices, we also have an experienced team of Customer Service Engineers who can perform installations, preventative maintenance and general maintenance for your organisation
Contact us today to discuss your manufacturing challenges and how we can assist your company to increase production and profitibilty.
Labelong Packaging's services are constantly evolving, providing solutions for our customer's changing and expanding requirements.

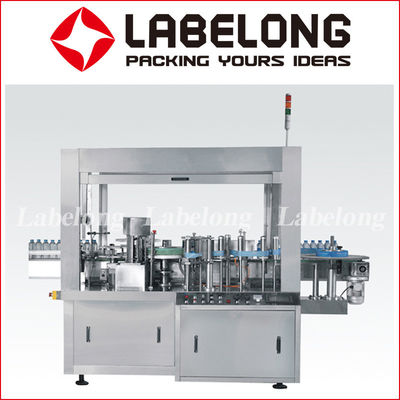

OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic 4




Contact me

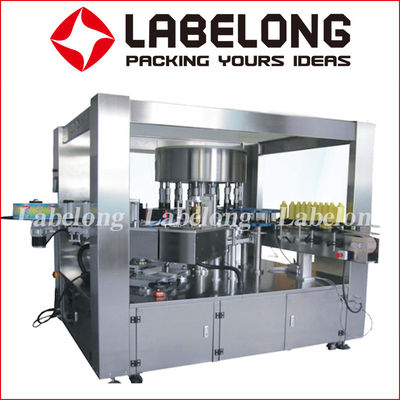

OPP Juice Beverage Round Bottle Sticker Labeling Machine Automatic 5
