Hot Melt Glue Opp Plastic Label Bottle Labeling Machine For Carbonated Drink

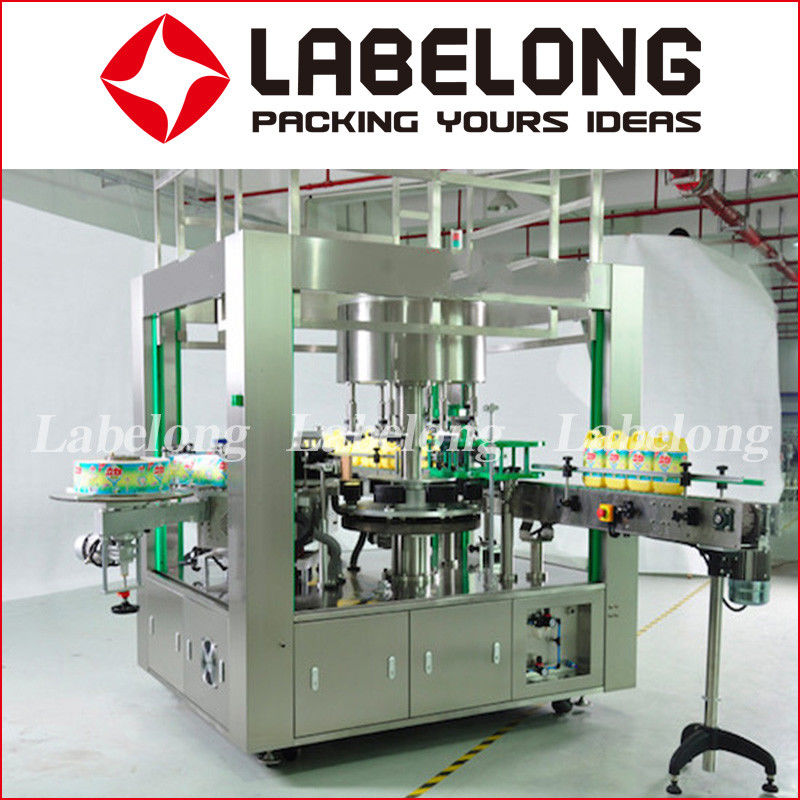

Large Image : Hot Melt Glue Opp Plastic Label Bottle Labeling Machine For Carbonated Drink

Product Details:

Place of Origin:	China
Brand Name:	Labelong
Certification:	CE
Model Number:	LOPP-400

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	USD30000-50000
Packaging Details:	Wooden case
Delivery Time:	20-40 days
Payment Terms:	T/T OR L/C
Supply Ability:	20-30SET/YEAR

Contact Now

Detailed Product Description

Automatic Grade:	Automatic Machine	Driven Type:	Electricity
Type:	Automatic Labeling Machine	Packaging Type:	Kinds Of Bottles
Product Name:	OPP Roll-fed/Hot-melt Labeling	Bottle Type:	Round /Square Bottle
Material:	SUS304 Stainless Steel	Label:	Opp Plastic Label
Voltage:	220V/50HZ Customized	Application:	Food, Chemical, Beverage
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support	Condition:	New
Warranty:	One Year	Labeling Accuracy:	±1mm
Highlight:	Opp Plastic Label Sleeve Applicator Machine , Hot Melt Glue Bottle Labeling Machine , Carbonated Drink Bottle Labeling Machine

High speed Hot Melt Glue opp plastic label Square Bottle Carbonated Drink Juice Drinking Water Bottle Labeling Machine

Application:

All kinds of products in Food and Beverage (Sauces, Spread, Prepared meal, Snacks, Soft drinks, Fruit juices, Water, Alcoholic drinks, etc.)
Dairy (Milk-based drink, Yogurt drink, Yogurt Cup, Coffee creamer, Ice cream, etc.)
Nutrition product/Supplement (Baby food, Healthy foods, etc.)
Home care (Laundry, Fabric care, Detergent, Cleaning products, etc.)
Personal Care (Hair care, Soap and Bath products, Oral care, Skin care, Cosmetics, etc.)

Feature:
PLC control system full-automatic working  
Main engine is controlled by three-phase converter motor speed adjustable 
Disc label-pasting and label-adsorbing  
Include such mechanisms as label-providing belt-conveying label-cutting  wheels-attaching vacuum-adsorbing hot sol-conveyance  
Hot sol providing machine is made in a hundred million Hertz.  
VAC and PUMP don’t start working unless the hot sol machine gets to  designed temperature.  
STOP(ALARM) installation for label running-out  
STOP installation for pasting failure  .
Applied to different specifications of packing for food chemical medicine  cosmetic and daily necessities  
Bottle material: Plastics glass steel etc  
Made of stainless steel SUS#304 and imported T6 aluminum alloy after  being anode hardened  
Adjustable label-pasting speed of main engine  
Imported optical-fiber electronic eye  
Horizontally adjustable main engine  
On-line production simple and rapid installation  
Alarm for missing label or gap

Parameter

Main engine size (lengthwidthheight)	3500L x 1600W x 1650H mm
Main engine production speed	400 bottles/minute
Main engine power supply	AC 3 phase220-380V
Main engine power	10kw
Label material	OPP fed roll Plastic label
Label length	10mm -300mm
Bottle/can diameter	50- 106 mm
max.label width	200mm
Junction line error	+/-1.5mm
machine weight	3000kg
glue temperature	120-160 degree
paper core	152mm
max.outside diameter	600mm

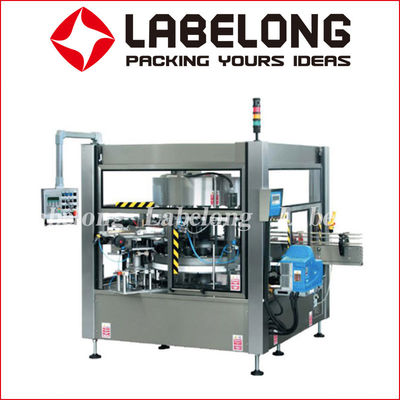

Hot Melt Glue Opp Plastic Label Bottle Labeling Machine For Carbonated Drink 0

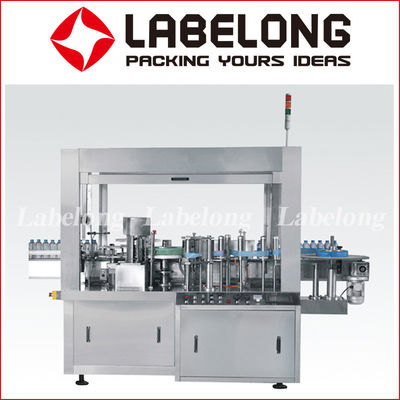

Hot Melt Glue Opp Plastic Label Bottle Labeling Machine For Carbonated Drink 1

Appliance Configuration

No.	Name	Brand	Brand from
1.	PLC:	SIEMENS S7-1200	German
2.	Servo motor:	SIEMENS SERIE V-90	German
3.	Servo drive:	SIEMENS SERIE V-90	German
4.	Inverter drive:	Danfos	Denmark
5.	Sensor:	Keyence	Japan
6.	Decoder:	Omron	Japan
7.	Fan:	Shanghai	China
8.	Touch screen:	Weinview	Taiwan
9.	Cylinder:	SMC	Japan
10.	Adhesive stove:	SPP-IAN	Shanghai
11.	Breaker:	Renin Electron	China
12.	Indicator light	Schneider	Germany
13.	Button	Schneider	Germany
14.	switch	Schneider	Germany
15.	AC contactor	Schneider	Germany
16.	DC contactor	Schneider	Germany
17.	Air switch	Schneider	Germany
18.	Solid state relay	FOTEK	Taiwan
19.	Temperature Controller	OMRON	Japan
20.	Limit switch	OMRON	Japan
21.	governor	Shanghai	China

Our company
Labelong Packaging not only have a large range of quality packaging machinery parts at very competitive prices, we also have an experienced team of Customer Service Engineers who can perform installations, preventative maintenance and general maintenance for your organisation
Contact us today to discuss your manufacturing challenges and how we can assist your company to increase production and profitibilty.
Labelong Packaging's services are constantly evolving, providing solutions for our customer's changing and expanding requirements.

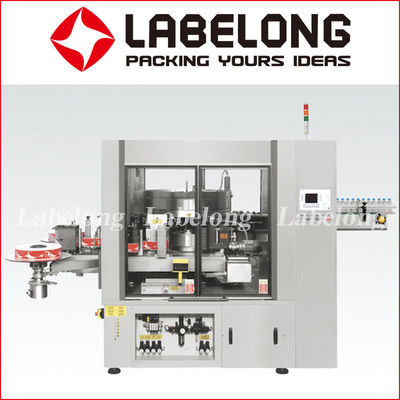

Hot Melt Glue Opp Plastic Label Bottle Labeling Machine For Carbonated Drink 5
