SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsAutomatic Bottle Labeling Machine

5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

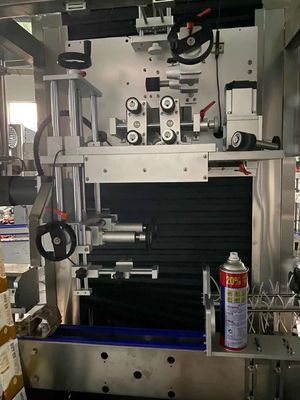

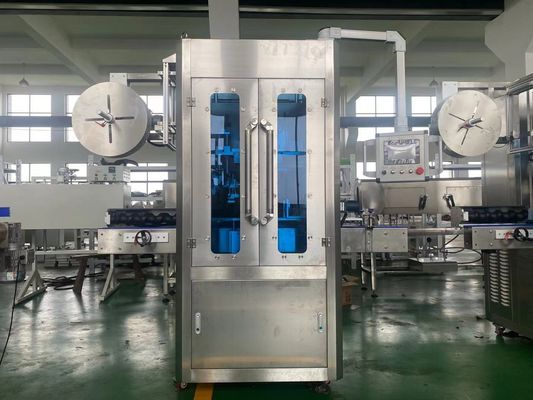

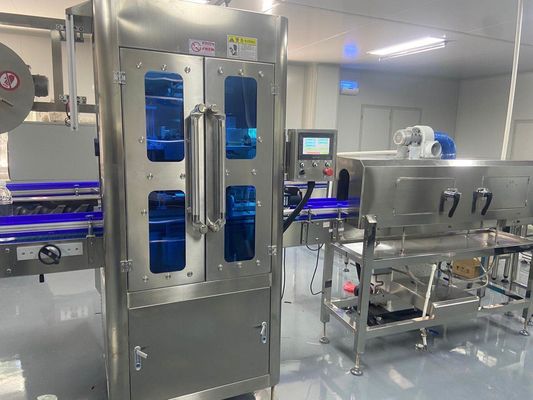

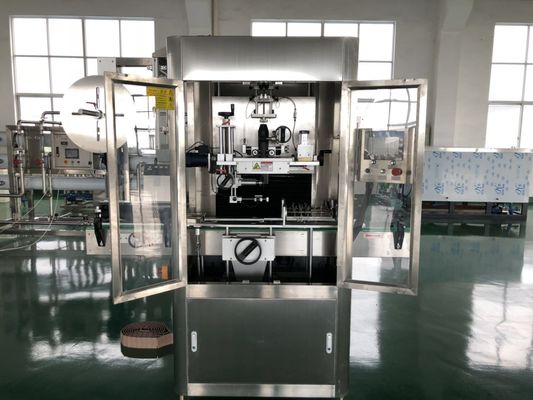

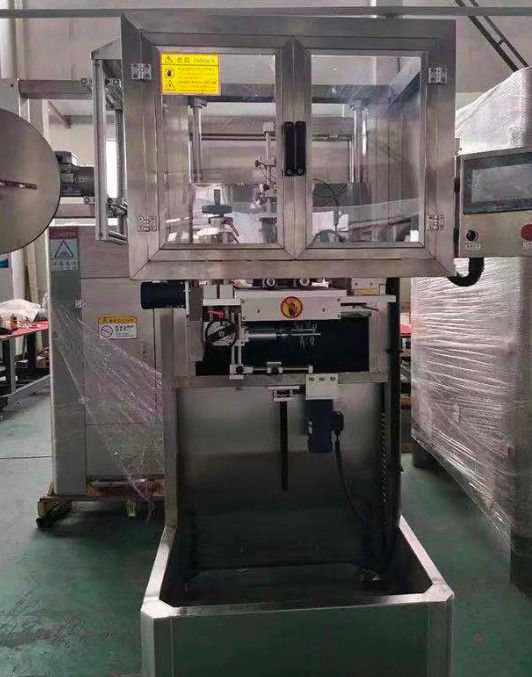

5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled

5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled
5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled 5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled 5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled 5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled 5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled

Large Image :  5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: LBL-5G

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD13000-15000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-80SET/YEAR
Detailed Product Description
Bottle Type: 5 Gallon Bottle Material: SUS304 Stainless Steel
Speed: 800-1500BPH Control: PLC Control
Label Type: PVC/ PET Shrink Label Tunnel Length: 1m
Steam Generator: 9kw Voltage: 220V/50HZ, One Hz
Driven Type: Steam Application: Food,Medical,Beverage,Chemical,Commodity
Power: 3KW Automatic Grade: Automatic Labeling Machine
Type: Labeling Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Highlight:

Bottle Neck Shrink Sleeve Labeling Machine

,

PLC Shrink Sleeve Labeling Machine

,

5 Gallon Bottle Sleeve Labeling Machine



Automatic PVC Plastic 19L 20L 5 Gallon Pure Mineral Drinking Water Bottle Neck Shrink Sleeve Labeling machine





Introduction:
1,The machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame,
2,The feet bolt is not needed, easy to move suitable for different place.
3,The shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5'-10'
4,The applicable is 5 gallon bottle
5,Without tools, the driven machinery can be adjusted to meet different bottle size
7,Full automatic feeder, the flat shrinking and tension are adjusted together.
8,It is assured to low error that there is inspection of rolling label cut.
9,Particular blade design, blade base can be change by free, changing blade quickly and conveniently.
10,It is easy to change the central clamping device without any tools.
12,The separating bottle screw, oriental belt and conveyor are adjusted synchronal.
13,Adopting ANCHUAN servo motor made in JAPAN and sensitive photo electricity, to insure the precision of cutting label.
14,Stainless steel electric controller, adopting Mitsubishi PLC made in Japan
15,Adopting advanced man-machine automatic controlling technology, main component adopts famous brand.

Parameter



Model

LBL-5G



Speed

MAX 1500BPH



Main machine size

2400*860*1800 L*W*H (mm)



Machine body

Stainless steel 304



Electric power

AC3-PHASE 220V/380V



Input power of machine

2.5KW



Applicable diameter of bottle

φ25mm –φ125mm



Bottle height

Max 350mm special can be designed



Height of shrink label

25 mm ~280mm, special can be designed



Thickness of shrink label

0.035 mm~0.13 mm(PVC PET OPS)



Paper inner core

5”~10” Free adjustment



Shrink tunnel

Electrical / steam



Weight

Around 600kg





Main parts

No Name Brand Manufacturer
1 SUS304 stainless steel   South Korea
2 motor TWT Taiwan
3 Bearing HARBIN China

5 Stepping Driver Ertl Taiwan
6 PLC controller Omron Japan
7 Inverter Delta Taiwan
8 touch-screen Omron Japan
9 Contactor Schneider Franch
10 Sensor



5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled 0

5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled 1

5 Gallon Bottle Neck Shrink Sleeve Labeling Machine Automatic PLC Controlled 2
