SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsAutomatic Bottle Labeling Machine

Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH

Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH
Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH

Large Image :  Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: L-D200

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD12000-15000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Bottle Type: Round And Square Bottle Material: 304 Stainless Steel
Speed: 6000-18000BPH Control: PLC Control
Label Type: PVC/PET Shrink Label Tunnel Length: 1.8-2.4m
Steam Generator: 18-36kw Voltage: 220V/50HZ
Driven Type: Electric Application: Food,Medical,Beverage,Chemical,Commodity
Power: 3.0KW Automatic Grade: Automatic
Packaging Material: Wood After-sales Service Provided: Engineers Available To Service Machinery Overseas
Highlight:

12000BPH Shrink Sleeve Labeling Machine

,

Automatic Shrink Sleeve Labeling Machine

,

Automatic Shrink Sleeve Applicator Machine



Automatic Mineral Water Bottle 12000BPH double heads Shrink Sleeve labeling Machine





Specification

1. The company's sleeve labeling machine is suitable for all kinds of bottles of fruit juice tea drinks dairy products pure water condiments beer sports drinks and other food and beverage industry not only has a highly precise position and contraction more prominent bottle perfect bottle.
2. The high stability of the mechanical structure the whole machine made of stainless steel and aluminum alloy frame cover protective rigid frame solid rust.
3. High-quality positioning accuracy all mechanical transmission design the use of forced sleeve labels.
4. Low maintenance cost of consumables low cost of discarding this machine blade easy to replace the cost burden is low.
5. Reliable service the aircraft has a variety of spare parts warehouse ready to provide as well as experienced engineers provide you with technical support.
6. Sleek appearance the overall framework of strong more lightweight and flexible use.
7. The new industry-leading design quality is more solid and excellence by no means able to compare the existing domestic products.
8. The machine is simple and elegant structural components ensures low failure rate easy maintenance.
9. A full range of security principal security box in fact thoughtful design.
10. Synchronous bottles delivery and stable;
11. Adjustable cutter cutting maneuver tool life doubled.
12. The man-machine interface operating more humane;





Technical data

Model LBL-200D
Speed MAX 200BPM
Main machine size 1500*860*2000 L*W*H (mm)
Machine body Stainless steel 304
Electric power AC3-PHASE 220V/380V
Input power of machine 3KW
Applicable diameter of bottle φ25mm –φ125mm
Bottle height Max 350mm special can be designed
Height of shrink label 25 mm ~280mm, special can be designed
Thickness of shrink label 0.035 mm~0.13 mm(PVC PET OPS)
Paper inner core 5”~10” Free adjustment
Shrink tunnel Electrical / steam
Weight Around 900kg

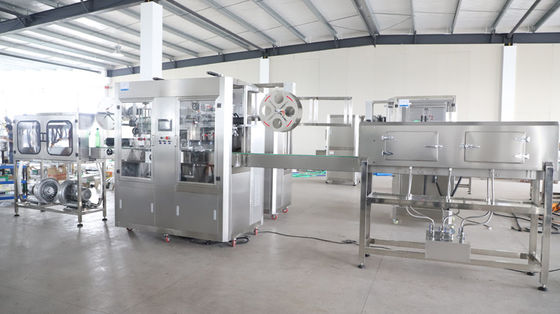

Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH 0

Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH 1

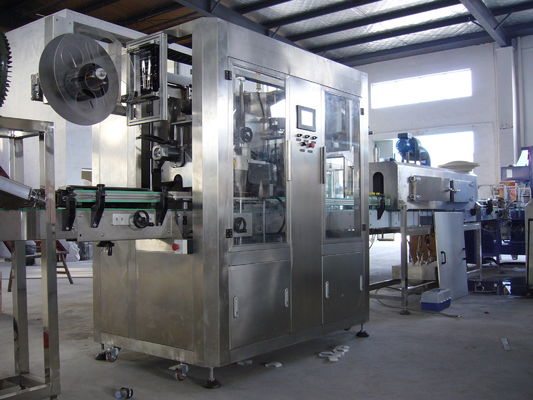

Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH 2

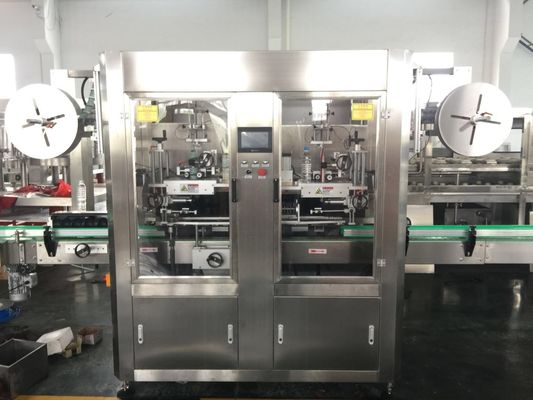

Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH 3

Main parts

No Name Brand Manufacturer
1 SUS304 stainless steel   South Korea
2 motor TWT Taiwan
3 Bearing HARBIN China

5 Stepping Driver Ertl Taiwan
6 PLC controller Omron Japan
7 Inverter Delta Taiwan
8 touch-screen Omron Japan
9 Contactor Schneider Franch
10 Sensor



Our company
Labelong Packaging not only have a large range of quality packaging machinery parts at very competitive prices, we also have an experienced team of Customer Service Engineers who can perform installations, preventative maintenance and general maintenance for your organisation
Contact us today to discuss your manufacturing challenges and how we can assist your company to increase production and profitibilty.
Labelong Packaging's services are constantly evolving, providing solutions for our customer's changing and expanding requirements.

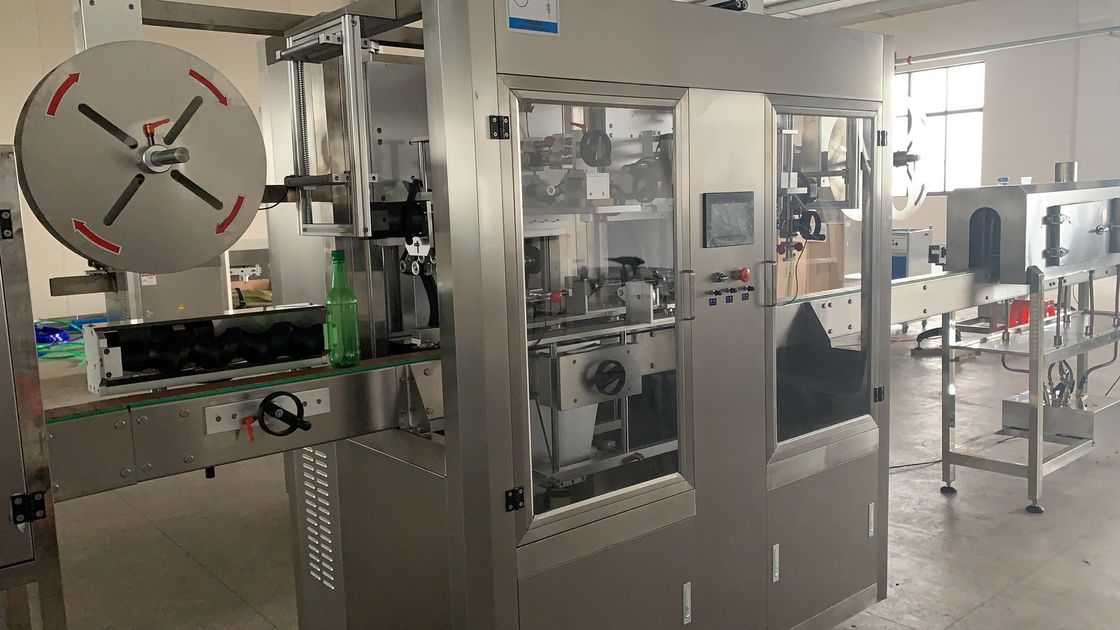

Automatic Water Bottle Shrink Sleeve Labeling Machine Double Heads 12000BPH 4
