304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel

304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel
304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel

Large Image :  304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: RGF-300

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD20000-50000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Product Name: 5 Gallon Filling Machine Filling Liquid: Mineral Water
Capacity: 300BPH Dimension(L*W*H): 2200*2100*2200MM
Function: Bottle Washing Filling Capping Control: PLC
Bottle Type: PET Bottle Automatic Grade: Automatic
Type: Filling Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Packaging Material: Plastic
Packaging Type: Barrel,Bottles
Highlight:

SS304 Drinking Water Filling Machine

,

300bph Drinking Water Filling Machine

,

PLC Control 5 Gallon Filling Machine

304 Stainless Steel 300bph Automatic 5 Gallon Barrel Bottle Drinking Water Filling Machine

Our QGF complete 5 gallon barrel pure,mineral water filler line mainly consists of 7 parts. They are respectively:
1. De-capping machine
2. External barrel brushing machine
3. Bottle feeding machine
4. Washing, filling, capping machine
5. Cap elevator
6. Lamp checker
7. Conveyor



The QGF series barreled water filling line is mainly used to produce bottled water with volume from 3 gallon to 5 gallon.And different models can offer production capacity from 100 to 2000BH/H.The whole production process operates as follows:Empty barrel are convenyed stably by conveying belt into decapping machine,which will remove bottle caps.Those caps can be recycled after being cleaned and disinfected.Then barrel are conveyed into the extemal brush washing machine to take all-round rinsing with hot alkali and pure water.After rinsed,barrel will be sent to rinsing filling capping machine,where bottles are rinsed inside with hot alkali,disinfectantliquid and pure water.And then barrel is filled with pure water provided by water treatment system.Then after capped,those barreled water is sent to shrink packing machine in which shrink packaging of caps is done.The whole production process is controlled by PLC,so this barreled water production line is automatic,Through control panel,users can monitor visually working conditions of each machine section and operate conveniently.



5 Gallon Filling Machine Parameter
Model WFC-100 WFC-200 WFC-300 WFC-450 WFC-600 WFC-900 WFC-1200
Rated Production
Capacity (bph)
100 200 300 450 600 900 1200
Installed Capacity 1.3 1.7 3.8 3.8 7.5 9.7 13.5
Related Voltage(V) 380V/HZ 380V/HZ 380V/HZ 380V/HZ 380V/HZ 380V/HZ 380V/HZ
Weight (kg) 680 800 1500 2100 3000 3500 4500

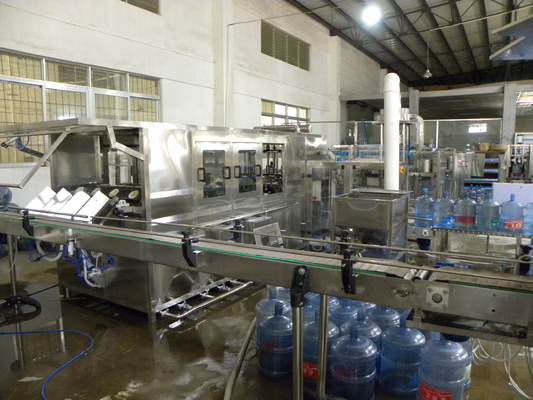

304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 0

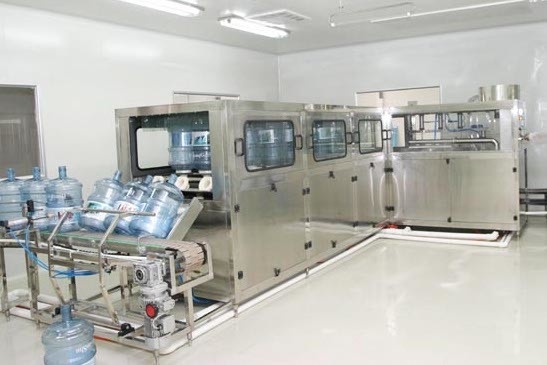

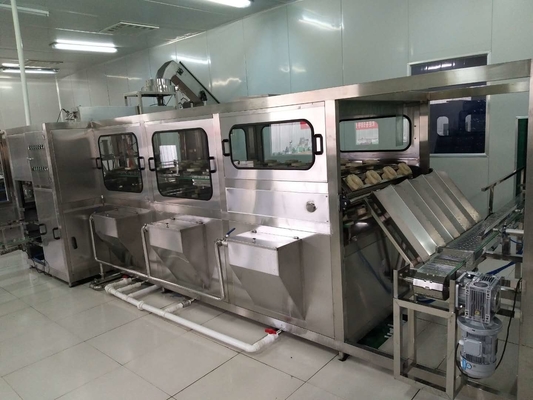

304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 1304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 2



Configuration List:

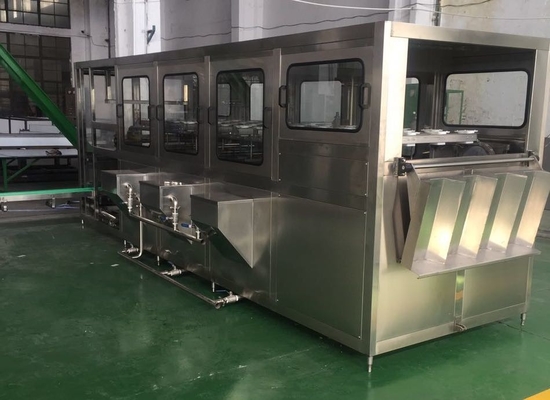

304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 3



Our factory

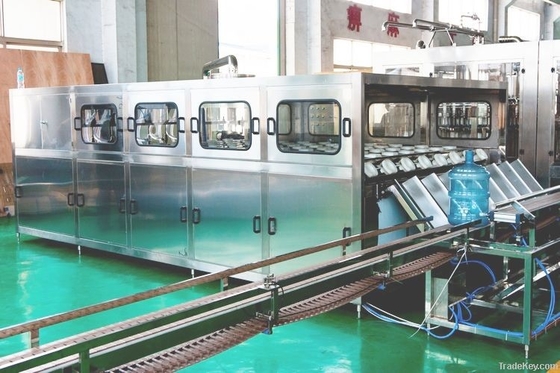

304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 4

Shipping photo

304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 5


304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 6304 Stainless Steel Drinking Water Filling Machine 300bph for 5 Gallon Barrel 7
