Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5 Gallon Filling Machine | Filling Liquid: | Drinkingl Water |
|---|---|---|---|
| Capacity: | 200BPH | Dimension(L*W*H): | 2200*2100*2200MM |
| Function: | Bottle Washing Filling Capping | Automatic Grade: | Automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
| Packaging Material: | Plastic | Packaging Type: | Barrel,Bottles |
| Warranty: | 1 Year | Material: | Stainless Steel SUS304 |
| Power: | 3.8KW | ||
| High Light: | 200bph Automatic Filling And Capping Machine,20L Automatic Filling And Capping Machine,PET Bottle 5 Gallon Filling Machine |
||

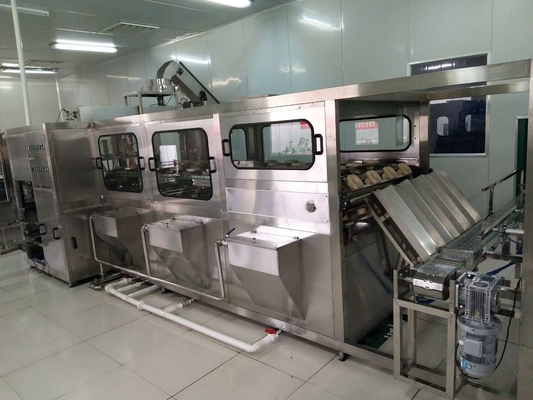

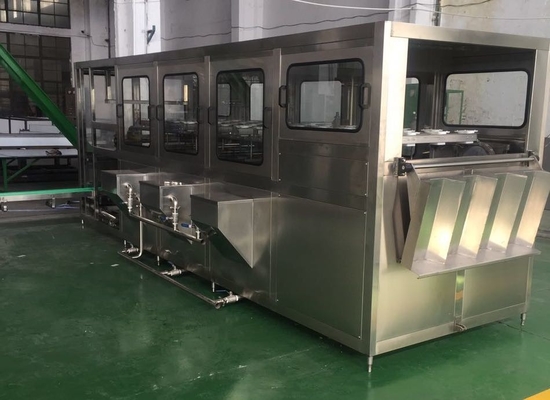

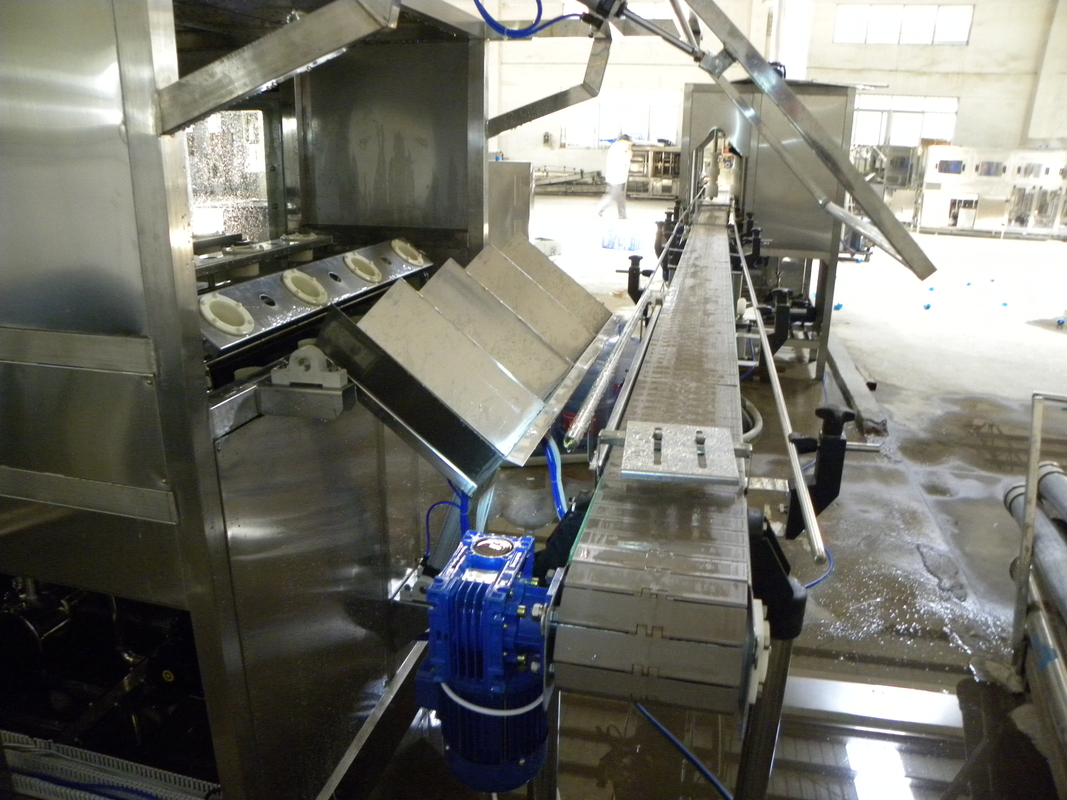

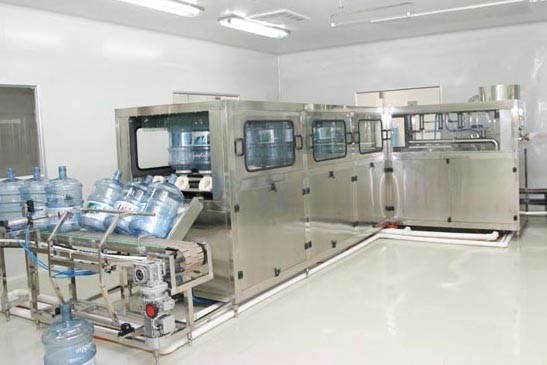

200bph automatic 5 Gallon 20L PET barrel bottle drinking water Washing Filling capping Machine
Our QGF complete 5 gallon barrel pure,mineral water filler line mainly consists of 7 parts. They are respectively:
1. De-capping machine
2. External barrel brushing machine
3. Bottle feeding machine
4. Washing, filling, capping machine
5. Cap elevator
6. Lamp checker
7. Conveyor
Introduction:
This filling line specially for 3-5gallons barreled drink water, with type QGF-100, QGF-240, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200, It intergrates bottle washing, filling and capping into one unit, In order to achieve the purpose of washing and sterilizing, The washing machine use multi-washing liquid spray and-thimerosal spray, This thimerosal can be used circularly, The capping machine can cap barrel automatically , this line equips with water spraying device in order to ensure those caps sterilizer and clean. it also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation, it is a new kind of barreeled water auto-production line, which intergrates mechanism, electricity and pneumatics technologies together .
| Model | WFC-100 | WFC-200 | WFC-300 | WFC-450 | WFC-600 | WFC-900 | WFC-1200 |
| Rated Production Capacity (bph) |
100 | 200 | 300 | 450 | 600 | 900 | 1200 |
| Installed Capacity | 1.3 | 1.7 | 3.8 | 3.8 | 7.5 | 9.7 | 13.5 |
| Related Voltage(V) | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ | 380V/HZ |
| Weight (kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Configuration List:
