Automatic Snack Seed Spice Popcorn Nuts Peanut Tea Grains Stick Sachet Packing Machine

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

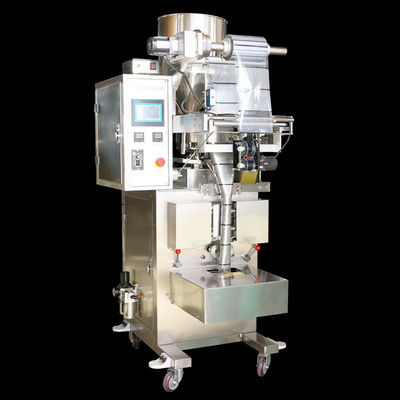

Automatic Snack Seed Spice Popcorn Nuts Peanut Tea Grains Stick Sachet Packing Machine

Automatic Snack Seed Spice Popcorn Nuts Peanut Tea Grains Stick Sachet Packing Machine
Automatic Snack Seed Spice Popcorn Nuts Peanut Tea Grains Stick Sachet Packing Machine

Large Image :  Automatic Snack Seed Spice Popcorn Nuts Peanut Tea Grains Stick Sachet Packing Machine

Product Details:

Place of Origin: CHINA
Brand Name: LABELONG
Certification: CE
Model Number: LBL-K300

Payment & Shipping Terms:

Minimum Order Quantity: ONE SET
Price: USD2000-3000
Packaging Details: WOODEN CASE
Supply Ability: 10 SETS PER MONTH
Detailed Product Description
Application: Food,Medical,Commodity Certification: CE,SGS
Voltage: 220V/380V Automatic Grade: Automatic
Condition: New Driven Type: Electric,Pneumatic
Type: Filling Machine Packaging Type: Bags
After-sales Service Provided: Engineers Available To Service Machinery Overseas Packaging Material: Wood
Weight: 600KG Warranty: One Year
Material: SS304 Control: Touch Screen
Highlight:

Grains Stick Sachet Packing Machine

,

380V Sachet Packing Machine

,

Spice Sachet Filling Machine

Automatic Snack/Rice/Beans/Seed/Spice/Popcorn/Nuts/Peanut/Tea/Grains Stick Sachet Packing machine
Automatic Snack Seed Spice Popcorn Nuts Peanut Tea Grains Stick Sachet Packing Machine 0

Working Processes :

Feeding--Conveying--Weighting--Forming ( Filling--Sealing ) --Finish Products

Product intruction

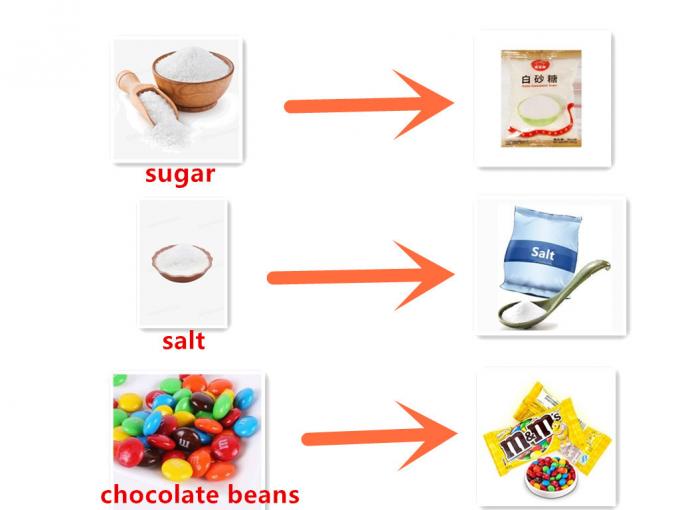

Apply for the packaging of medical supplies, food, hardware and other particle in bulk such as electuary, spices,sugar, coffee,seeds and monosodium glutamate .
1,Stainless steel surrounds the part where contact to the material. The machine is accordant with the European CE standard.
2,The computer controller is the first patented product in China, an advanced frequency converter, and supports multi-language control.
3,Rolled disc cup adjusting device can adjust packaging capacity during running the machine, reduce the lostof material and improve productivity.
4,Bag-making equipment can be changed according to specific requirement of customers and products so as to adjust the amount of packaging.
5,
Multi-language touch screen can switch various languages at the same time, and when there is a problem with the machine, it will automatically alarm, pause the operation and show where the machine is in the problem.
6,
Screw metering,Kitech exclusive patented technology device, using a new straight screw metering weighing, when the packaging weight is not accurate will automatically adjust to reach the preset weight, no manual operation to adjust, saving time and cost.
7,
Double Scale Weighing Device,Kitech's exclusive patented technology device,Secondary weighing and testing of the finished packaging products, when the packaging weight is not accurate, it will automatically reject the unqualified products and feed back to the measuring cup metering device system for automatic adjustment of the entire weight, which will increase the qualified rate products to 100%.
8,Servo control system is used on machine weighing device, film pulling device, bag making and sealing. When there is a problem in one part, the machine will automatically stop running and alarm to remind the operator to check, therefore, one person can operate 15 machines at the same time to save cost.

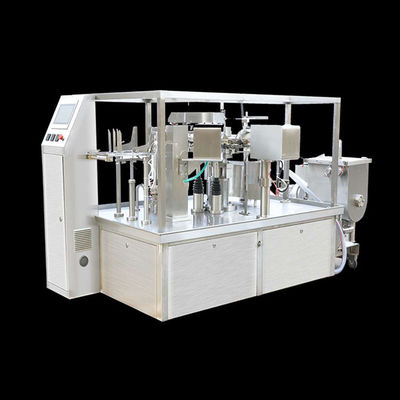

Kefai Accurate Low Price 3/4 Side Sachet Stick Sugar Salt Packing Machine
Machine features:
1. This machine can automatically complete following work: material lifting--volumetric cup/multi-head weighter measuring--coding--bag making--filling--gas injection/exhaust (optional)--sealing--counting-- conveying finished products--sorting finished products.
2. Imported PLC servo and pneumatic control system and super touch screen to form the drive control center; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters when replacement product can be used at any time without having to reset.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to promptly eliminate it.
5. Can make hole punching device after customer's request.
6. All the contact materials parts are stainless steel 304.

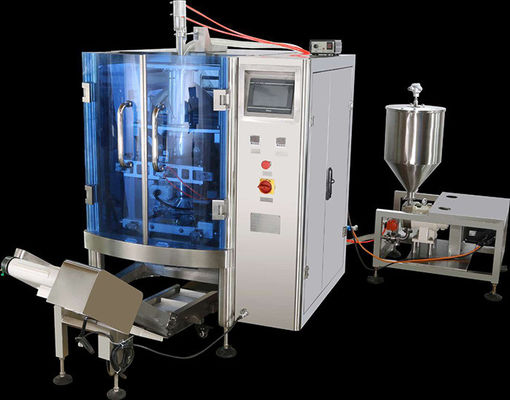

Kefai Accurate Low Price 3/4 Side Sachet Stick Sugar Salt Packing Machine

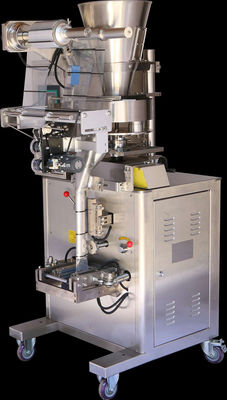

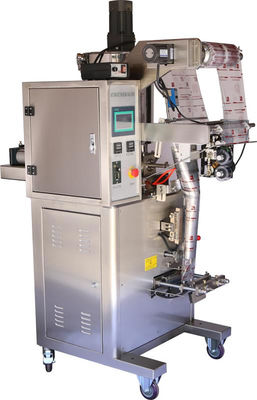

Automatic Snack Seed Spice Popcorn Nuts Peanut Tea Grains Stick Sachet Packing Machine 3Automatic Snack Seed Spice Popcorn Nuts Peanut Tea Grains Stick Sachet Packing Machine 4



Technical parameters

Item
Sprcification
Measuring range
10G~5KG
Film width
50~260mm/50~240mm
Bag length
50~180mm
Bag width
50~120mm
Appearance
Stainless steel 304
Bag type
Back seal bag/side seal bag
Speed
25~60bags/min
Power
220V,50-60Hz,1.2kw
Weight
L1000×W700×H1650mm
