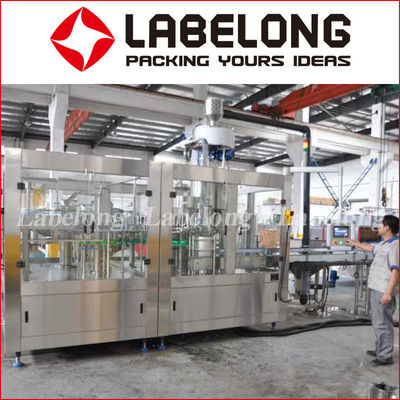

3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine

3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine
3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine 3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine 3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine 3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine 3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine

Large Image :  3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: RCF-H16-16-5

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD40000-50000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Filling Liquid: Juice Product Name: 304 SUS Automatic Juice Filling Machine
Capacity: 3000BPH Material: 304 Stainless Steel
Brand: Labelong Control: PLC
Bottle Type: PET/ Glass Bottle Power: 3.29kw
Highlight:

304 SUS Automatic Juice Filling Machine

,

304 SUS small juice filling machine

,

3500KG Automatic Juice Filling Machine

3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine



Automatic juice filling machine operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.



Technical Parameter

Model RFC-H series 14-12-5 16-16-5 24-24-8 32-32-10 40-40-10 50-50-12
Washing-Filling-Capping 14-12-5 16-16-5 24-24-8 32-32-10 40-40-10 50-50-12
Producing capacity
(600ml)
2000-4000
(bph)
5000-7000
(bph)
8000-12000
(bph)
12000-15000
(bph)
16000-20000
(bph)
20000-24000
(bph)
Applicable bottle (mm) φ=50-108 H=170-340 330ml-2.25L
Pressure (kg/cm2) 2~3

Outside vacuum

pump power (kw)


Main motor
1.5kw
Main motor
2.2kw
Main motor
3kw
Main motor
4kw
Main motor
7.5kw
Main motor
9.5kw
Overall dimension (mm)

(LxWxH)
2100x1400
x2500
2460x1720
x2650
3100x2100
x2650
3500x2500
x2650
4600x1800
x2650
5200x4500
x3400
Weight(kg) 2500 3500 4200 5500 6800 7600


Product details

1. Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water.
3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine 0

2. Filler
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm (subject to bottle design). The filling valve material is SUS304. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part
.

3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine 1




3. Capper
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.
3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine 2




Configuration List
3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine 3



Shipping photo



3000 BPH 3500KG 304 SUS Automatic Juice Filling Machine 4



RFQ
Q1: Are you a trading company or a manufacturer?

A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.



Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you the high quality machines with one year guarantee and supply long life technical support.



Q3: When can I get my machines after I paid?

A: The delivery time is based on the exact machine you confirmed.



Q4: How can I install my machines when they arrive?

A: We will send our engineers to your factory to install the machines and train your staffs how to operate

the machines.



Q5: How about the spare parts?

A: After we deal with all the things, we will offer you a spare parts list for you refer.
