SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsLinear Bottle Filling Machine

PET Detergent Chemical 1000b/H Piston Bottle Filler

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

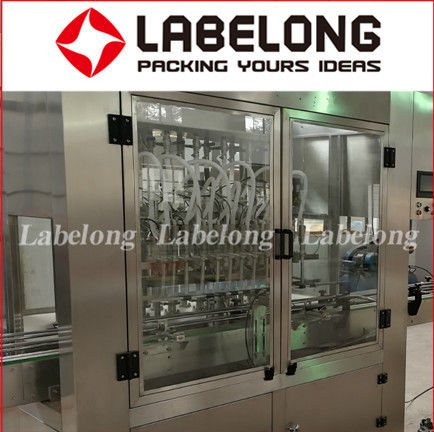

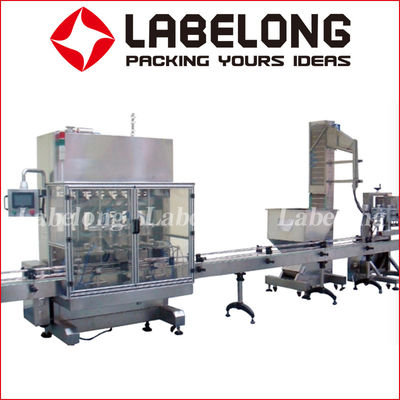

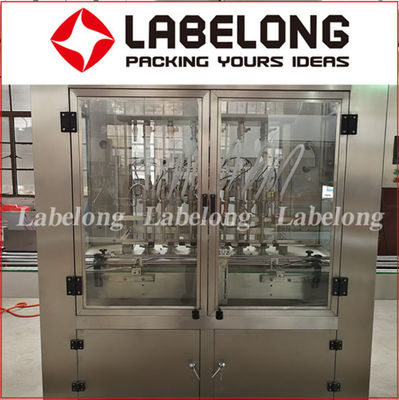

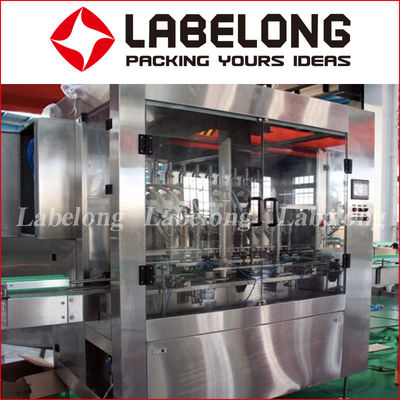

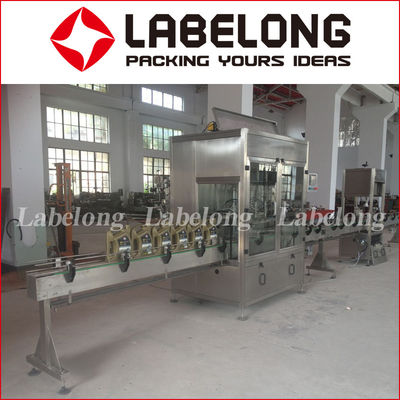

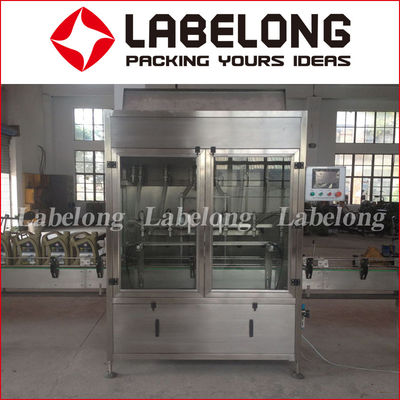

PET Detergent Chemical 1000b/H Piston Bottle Filler

PET Detergent Chemical 1000b/H Piston Bottle Filler
PET Detergent Chemical 1000b/H Piston Bottle Filler

Large Image :  PET Detergent Chemical 1000b/H Piston Bottle Filler

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: L-12H

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD4000-20000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Filling Liquid: Toilet Cleaner Capacity: 2000BPH
Material: Anti-corrision Brand: Labelong
Control: PLC Bottle Type: Round/square Bottle
Product Name: Piston Bottle Filler Application: Detergent Chemical
Highlight:

1000b/h piston bottle filler

,

1000b/h liquid piston filler

,

500ML piston bottle filler





 Low price Automatic Detergent Chemical liquid Piston Filling Machine/machinery



Application: detergent, oil, toilet cleaner, soap water, sauce, jam, honey


Capacity: 500-5000 bottles / hour (500ML)


Containers applied for: PET /glaa bottle of all volumes and shapes


Filling system: piston filling.





Major Characteristics:
(1). Linear piston filling, 8 filling heads high efficiency with high production capacity .
(2). PLC controlled. Easily connected with capping machine and labeling machine and implementing Bus Communication.
(3). Two channel standard safety electric circuit to make sure equipments running safely.
(4). With AUTO-ID system. No bottle no filling.
(5). Servo drive piston, high-precision filling
(6). Adopting diving filling to avoid foamy and explosion.
(7). Eternal wear free measuring cylinder, long working life Pan plug seal with the function of self-compaction, maintenance free.

Technical Parameters:



Machine dimension 2000mm(L)* 1200mm(W)*2500mm(H)
Filling heads Accorting to production capacity
Filling range Customized
Production capacity: 1000b/h(take 500ml foamy product as test) for 6 filling heads
Filling Tolerance Filling machine for volume ≤500ml----±1g
Filling machine for volume ≥500ml----±2g
Power supply AC380V,50Hz; AC220V,50Hz (customized)
Air consumption 0.55-0.65 Mpa clean and stable compressed ai
Diameter of bottle mouth Customized





PET Detergent Chemical 1000b/H Piston Bottle Filler 0



PET Detergent Chemical 1000b/H Piston Bottle Filler 1

PET Detergent Chemical 1000b/H Piston Bottle Filler 2



Configuration List:
PET Detergent Chemical 1000b/H Piston Bottle Filler 3

Our factory


PET Detergent Chemical 1000b/H Piston Bottle Filler 4


Shipping



PET Detergent Chemical 1000b/H Piston Bottle Filler 5



RFQ
Q1: Are you a trading company or a manufacturer?

A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.



Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you the high quality machines with one year guarantee and supply long life technical support.



Q3: When can I get my machines after I paid?

A: The delivery time is based on the exact machine you confirmed.



Q4: How can I install my machines when they arrive?

A: We will send our engineers to your factory to install the machines and train your staffs how to operate

the machines.



Q5: How about the spare parts?

A: After we deal with all the things, we will offer you a spare parts list for you refer.
