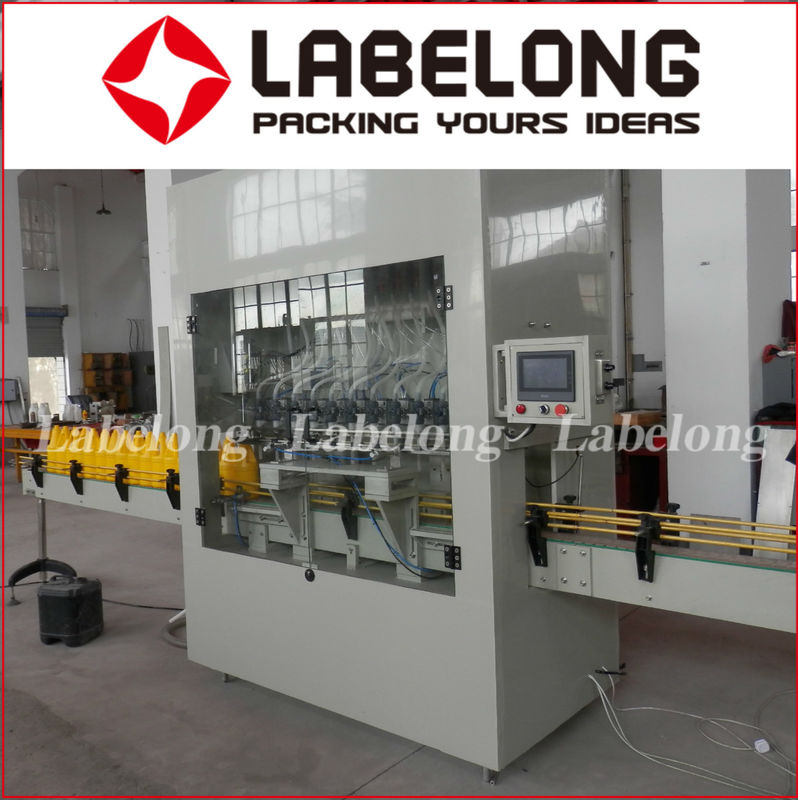

Automatic Anti-Corrsive Bleach Bottle/Toilet Cleaner Filling Capping Labeling Machine
Corrosion resistance, oxidation resistance, convenient maintenance, suitable for liquids and pastes. Adopt double-row reciprocating piston quantitative filling system, speed of 500-5000 bottles / hour, stable performance, universal use of large and small bottles (such as the optional automatic production change system can realize one-touch production and precise positioning on the touch screen)
Application: detergent, oil, toilet cleaner, soap water, sauce, jam, honey
Capacity: 500-5000 bottles / hour (500ML)
Containers applied for: PET /glaa bottle of all volumes and shapes
Filling system: piston filling.
Major Characteristics:

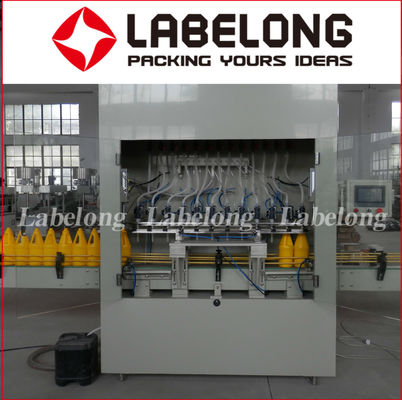

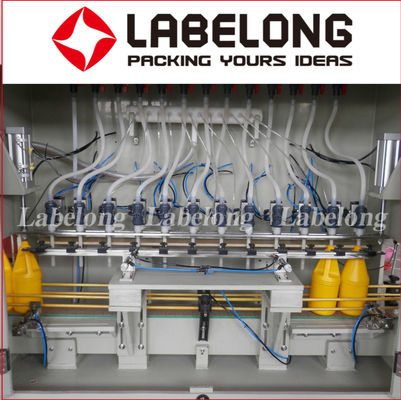

(1). Linear piston filling, 8 filling heads high efficiency with high production capacity .
(2). PLC controlled. Easily connected with capping machine and labeling machine and implementing Bus Communication.
(3). Two channel standard safety electric circuit to make sure equipments running safely.
(4). With AUTO-ID system. No bottle no filling.
(5). Servo drive piston, high-precision filling
(6). Adopting diving filling to avoid foamy and explosion.
(7). Eternal wear free measuring cylinder, long working life Pan plug seal with the function of self-compaction, maintenance free.
Technical Parameters:
| Machine dimension |
2000mm(L)* 1200mm(W)*2500mm(H) |
| Filling heads |
Accorting to production capacity |
| Filling range |
Customized |
| Production capacity: |
1000b/h(take 500ml foamy product as test) for 6 filling heads |
| Filling Tolerance |
Filling machine for volume ≤500ml----±1g
Filling machine for volume ≥500ml----±2g |
| Power supply |
AC380V,50Hz; AC220V,50Hz (customized) |
| Air consumption |
0.55-0.65 Mpa clean and stable compressed ai |
| Diameter of bottle mouth |
Customized |
Configuration List:
Our factory
Shipping
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
