SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsLinear Bottle Filling Machine

Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

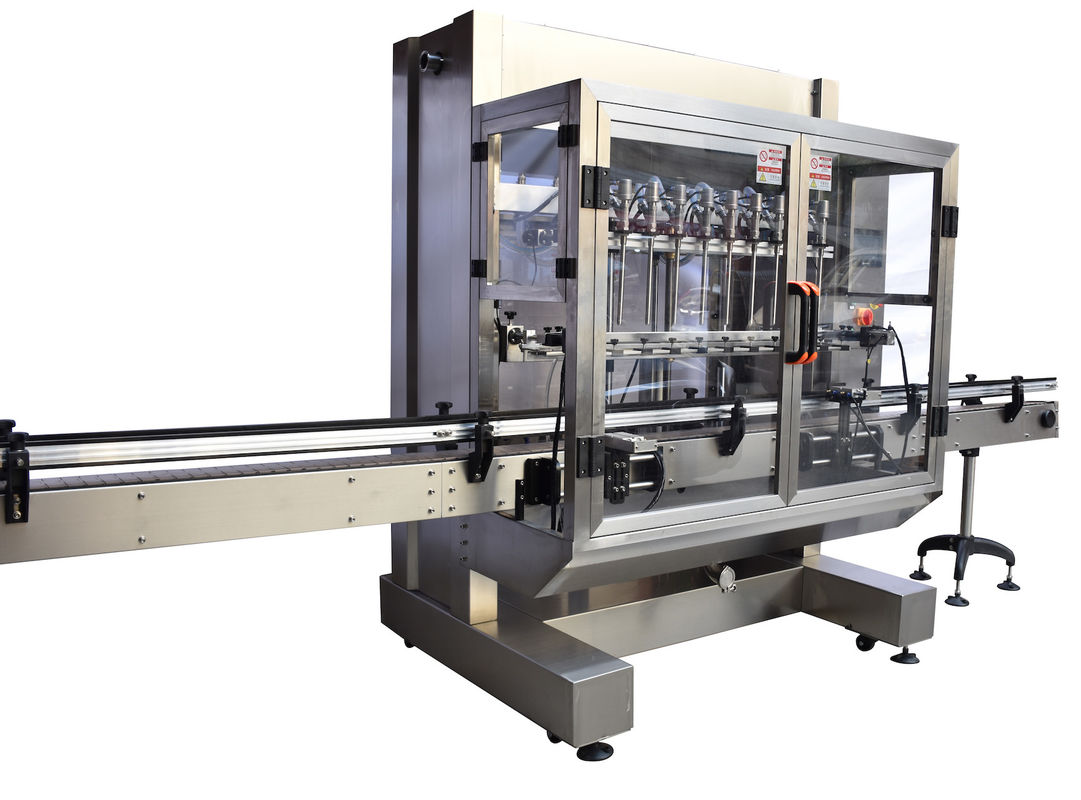

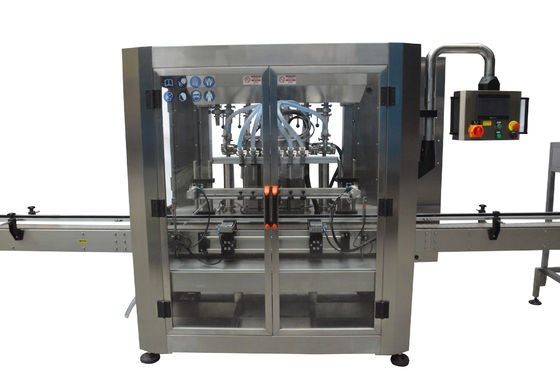

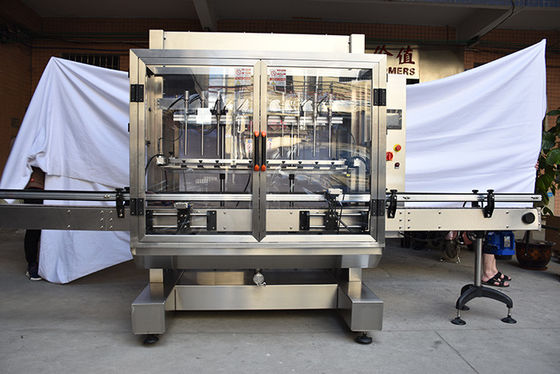

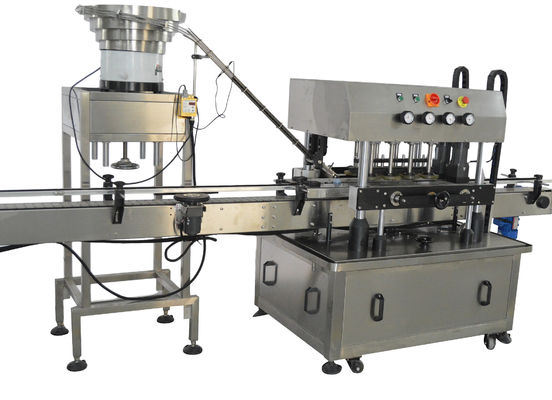

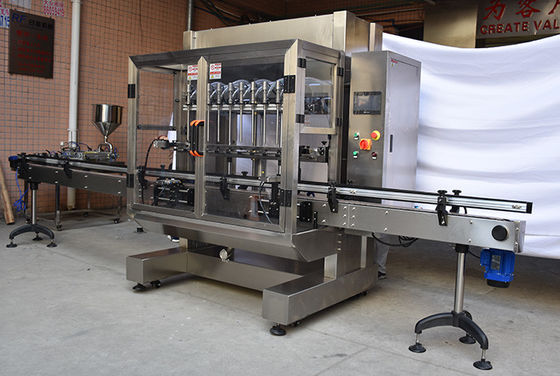

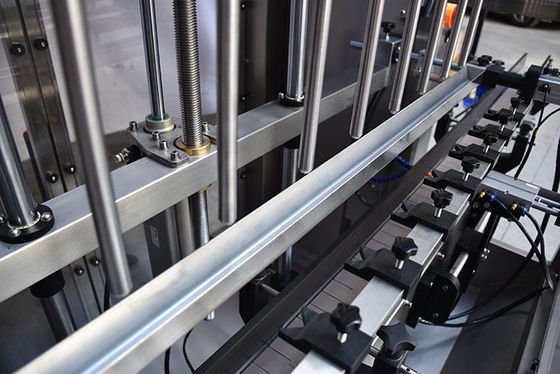

Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping

Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping
Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping

Large Image :  Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: L-12H

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD5000-20000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Product Name: Linear Bottle Filling Machine Filling Liquid: Oil
Capacity: 2000BPH Material: SUS304
Brand: Labelong Control: PLC
Bottle Type: Pet/glass Bottle Function: Filling Capping
Automatic Grade: Automatic Driven Type: Electric
Condition: New
Highlight:

Glass Bottle Machine 2000BPH

,

Automatic Filling Capping Glass Bottle Machine

,

Linear Bottle Filling Machine 50Hz



2000BPH Automatic Cooking/olive Edible Oil Filling Capping PET/Glass Bottle Machine





It adopts electric dynamic components of world famous brands, with PLC control,friendly operation interface, long service life of parts, convenient maintenance, safe and reliable, low noise, simple operation and accurate measurement and adjustment.



Application: detergent, oil, toilet cleaner, soap water, sauce, jam, honey


Capacity: 500-5000 bottles / hour (500ML)


Containers applied for: PET /glaa bottle of all volumes and shapes


Filling system: piston filling.





Major Characteristics:
(1). Linear piston filling, 8 filling heads high efficiency with high production capacity .
(2). PLC controlled. Easily connected with capping machine and labeling machine and implementing Bus Communication.
(3). Two channel standard safety electric circuit to make sure equipments running safely.
(4). With AUTO-ID system. No bottle no filling.
(5). Servo drive piston, high-precision filling
(6). Adopting diving filling to avoid foamy and explosion.
(7). Eternal wear free measuring cylinder, long working life Pan plug seal with the function of self-compaction, maintenance free.

Technical Parameters:



Machine dimension 2000mm(L)* 1200mm(W)*2500mm(H)
Filling heads Accorting to production capacity
Filling range Customized
Production capacity: 1000b/h(take 500ml foamy product as test) for 6 filling heads
Filling Tolerance Filling machine for volume ≤500ml----±1g
Filling machine for volume ≥500ml----±2g
Power supply AC380V,50Hz; AC220V,50Hz (customized)
Air consumption 0.55-0.65 Mpa clean and stable compressed ai
Diameter of bottle mouth Customized



Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping 0Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping 1Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping 2Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping 3


Configuration List:


Name Brand
PLC Mitsuibish
Air switch Meanwell
AC contactor Schneide
Time relay Omron
Inverter Corkan
Electromagnetic valve Airtac
Cylinder Airtac
Sensor Keyence
Touch screen Siemens


Our factory

Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping 4


Shipping



Cooking Oil PET / Glass Bottle Machine 2000BPH Automatic Filling Capping 5



RFQ
Q1: Are you a trading company or a manufacturer?

A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.



Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you the high quality machines with one year guarantee and supply long life technical support.



Q3: When can I get my machines after I paid?

A: The delivery time is based on the exact machine you confirmed.



Q4: How can I install my machines when they arrive?

A: We will send our engineers to your factory to install the machines and train your staffs how to operate

the machines.



Q5: How about the spare parts?

A: After we deal with all the things, we will offer you a spare parts list for you refer.
