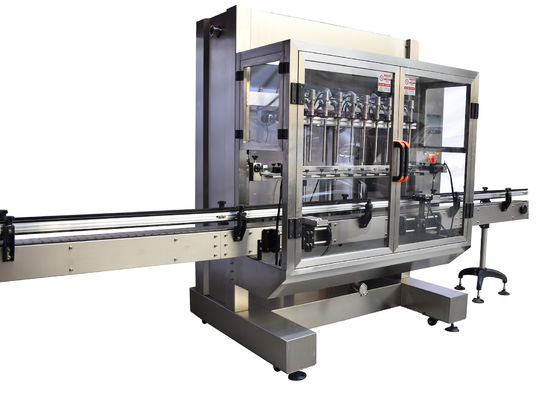

Honey Plastic Glass Linear Bottle Filling Machine Piston Type PLC Controlled

Large Image : Honey Plastic Glass Linear Bottle Filling Machine Piston Type PLC Controlled

Product Details:

Place of Origin:	China
Brand Name:	Labelong
Certification:	CE
Model Number:	L-12H

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	USD5000-20000/SET
Packaging Details:	Wooden case
Delivery Time:	20-40 days
Payment Terms:	T/T OR L/C
Supply Ability:	50-100SET/YEAR

Contact Now

Detailed Product Description

Product Name:	Linear Bottle Filling Machine	Filling Liquid:	Honey
Capacity:	2000BPH	Material:	SUS304
Brand:	Labelong	Control:	PLC
Bottle Type:	Pet/glass Bottle	Function:	Filling Capping
Automatic Grade:	Automatic	Driven Type:	Electric
Condition:	New	Voltage:	380V
Packaging Type:	Bottles	Application:	Beverage,Food,Chemical,Medical,Commodity
Power:	2KW	Warranty:	1 Year
Highlight:	Piston Type Linear Bottle Filling Machine , PLC Linear Bottle Filling Machine , Honey Glass Bottle Linear Capping Machine

Automatic piston type honey plastic glass bottle filling capping labeling machine

Equipment Brief Introduction:

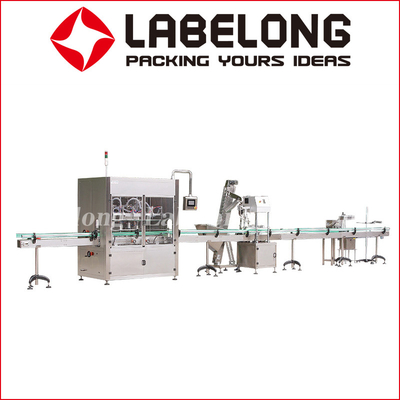

This Production Line Includes A Filling Machine, A Capping Machine, And An Aluminum Foil Sealing Machine;

The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Can Be Customized According To The

Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.

This Automatic Filling Line can be customized to fill various products,such as Honey, Soy Sauce, Peanut Oil, Blended Oil, Chili Sauce, Ketchup, Vinegar, Cooking Wine And So On.

Application: detergent, oil, toilet cleaner, soap water, sauce, jam, honey

Capacity: 500-5000 bottles / hour (500ML)

Containers applied for: PET /glaa bottle of all volumes and shapes

Filling system: piston filling.

Major Characteristics:
(1). Linear piston filling, 8 filling heads high efficiency with high production capacity .
(2). PLC controlled. Easily connected with capping machine and labeling machine and implementing Bus Communication.
(3). Two channel standard safety electric circuit to make sure equipments running safely.
(4). With AUTO-ID system. No bottle no filling.
(5). Servo drive piston, high-precision filling
(6). Adopting diving filling to avoid foamy and explosion.
(7). Eternal wear free measuring cylinder, long working life Pan plug seal with the function of self-compaction, maintenance free.

Technical Parameters:

Machine dimension	2000mm(L)* 1200mm(W)*2500mm(H)
Filling heads	Accorting to production capacity
Filling range	Customized
Production capacity:	1000b/h(take 500ml foamy product as test) for 6 filling heads
Filling Tolerance	Filling machine for volume ≤500ml----±1g Filling machine for volume ≥500ml----±2g
Power supply	AC380V,50Hz; AC220V,50Hz (customized)
Air consumption	0.55-0.65 Mpa clean and stable compressed ai
Diameter of bottle mouth	Customized

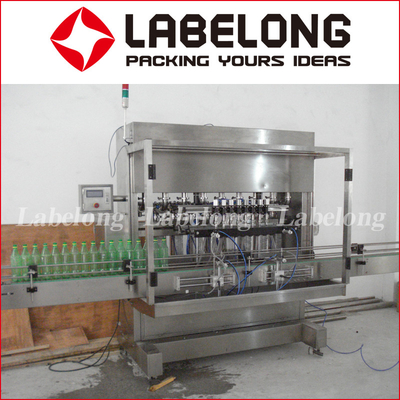

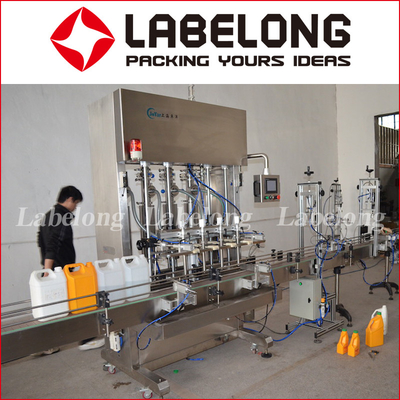

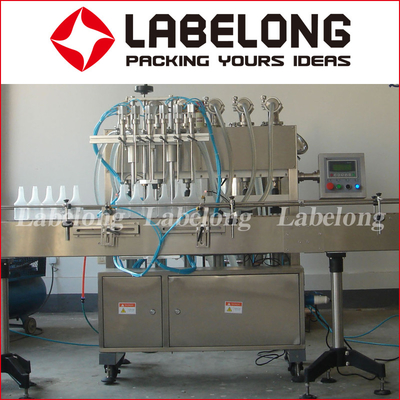

Honey Plastic Glass Linear Bottle Filling Machine Piston Type PLC Controlled 0

Honey Plastic Glass Linear Bottle Filling Machine Piston Type PLC Controlled 1

Configuration List:

Name	Brand
PLC	Mitsuibish
Air switch	Meanwell
AC contactor	Schneide
Time relay	Omron
Inverter	Corkan
Electromagnetic valve	Airtac
Cylinder	Airtac
Sensor	Keyence
Touch screen	Siemens
