Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

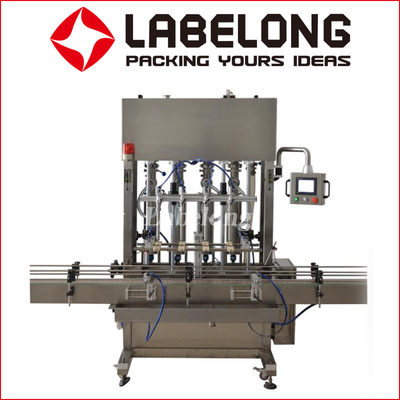

Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle

Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle
Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle

Large Image :  Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: L-12H

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD5000-20000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Product Name: Linear Bottle Filling Machine Filling Liquid: Sauce
Capacity: 2000-3000BPH Material: 304 Stainless Steel
Brand: Labelong Control: PLC
Bottle Type: Pet/glass Bottle Function: Filling Capping
Automatic Grade: Automatic Driven Type: Electric
Condition: New Voltage: 380V/220V
Packaging Type: Bottles Application: Beverage,Food,Chemical,Medical,Commodity
Power: 2KW Warranty: One Year
Highlight:

Glass Bottle Filling Capping Labeling Machine

,

Automatic Piston Filling Capping Labeling Machine

,

3000BPH Linear Bottle Filling Machine

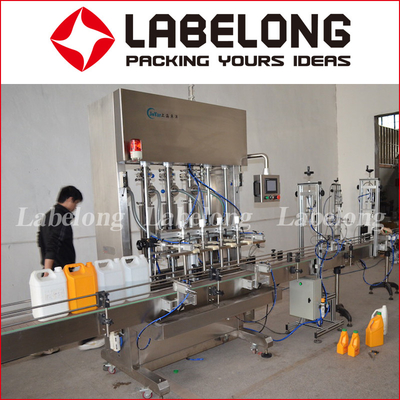

Automatic piston type plastic glass bottle fruit Jam chocolate sauce filling capping labeling machine





Equipment Brief Introduction:
This Production Line Includes A Filling Machine, A Capping Machine, And An Aluminum Foil Sealing Machine;
The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Can Be Customized According To The
Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.

This Automatic Filling Line can be customized to fill various products,such as Honey, Soy Sauce, Peanut Oil, Blended Oil, Chili Sauce, Ketchup, Vinegar, Cooking Wine And So On.



Application: detergent, oil, toilet cleaner, soap water, sauce, jam, honey


Capacity: 500-3000 bottles / hour (500ML)


Containers applied for: PET /glass bottle of all volumes and shapes


Filling system: piston filling.





Major Characteristics:
(1). Linear piston filling, 8 filling heads high efficiency with high production capacity .
(2). PLC controlled. Easily connected with capping machine and labeling machine and implementing Bus Communication.
(3). Two channel standard safety electric circuit to make sure equipments running safely.
(4). With AUTO-ID system. No bottle no filling.
(5). Servo drive piston, high-precision filling
(6). Adopting diving filling to avoid foamy and explosion.
(7). Eternal wear free measuring cylinder, long working life Pan plug seal with the function of self-compaction, maintenance free.

Technical Parameters:



Machine dimension

2000mm(L)* 1200mm(W)*2500mm(H)



Filling heads

Accorting to production capacity



Filling range

Customized



Production capacity:

1000-3000b/h(take 500ml foamy product as test)



Filling Tolerance

Filling machine for volume ≤500ml----±1g
Filling machine for volume ≥500ml----±2g



Power supply

AC380V,50Hz; AC220V,50Hz (customized)



Air consumption

0.55-0.65 Mpa clean and stable compressed air



Diameter of bottle mouth

Customized

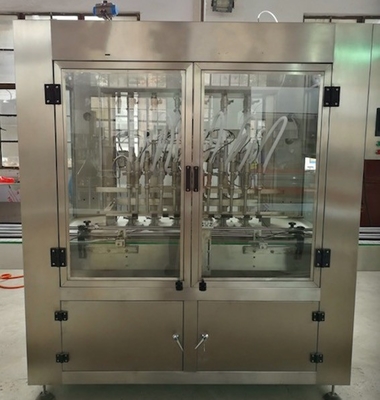

Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle 0

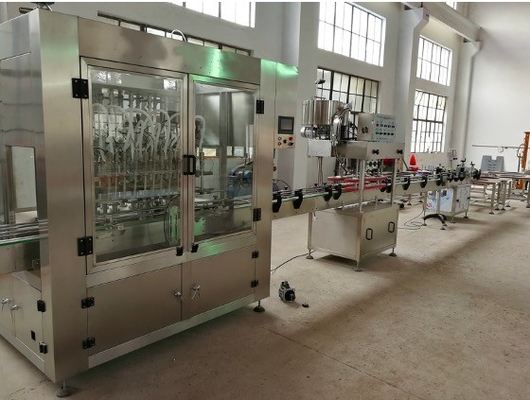

Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle 1Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle 2Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle 3Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle 4






Configuration List:



Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle 5



Shipping

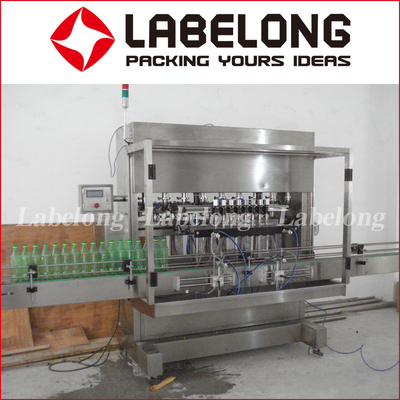

Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle 6



Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle 7
