Automatic Paste Jelly Cosmetic Peanut butter Liquid Soap Honey Shampoo Oil Sauce Filling Packing Machine

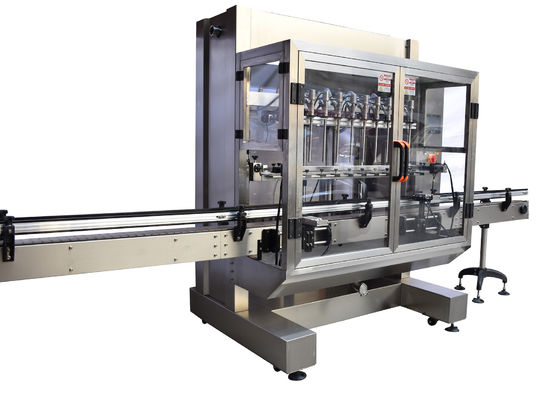

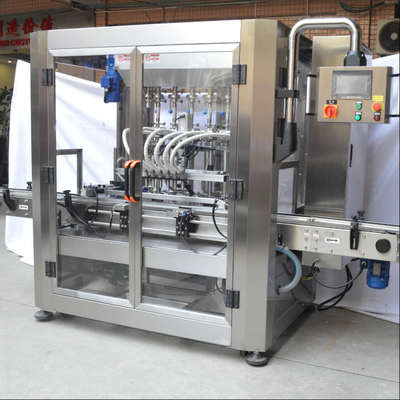

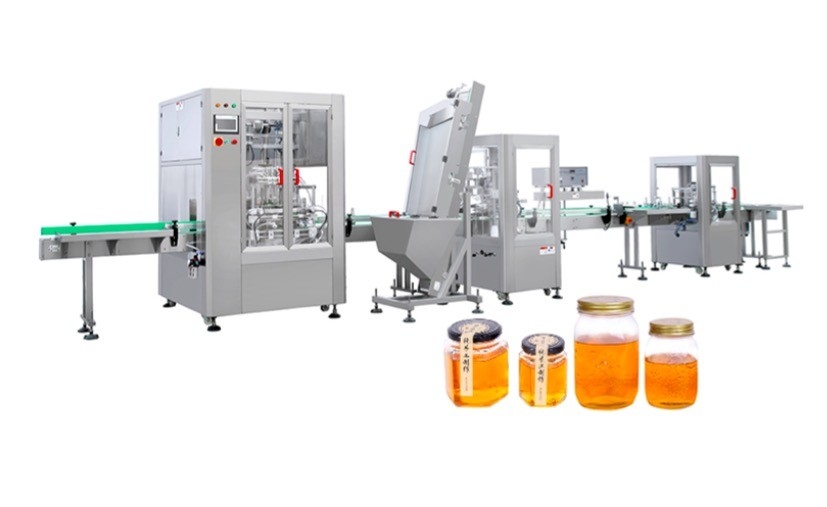

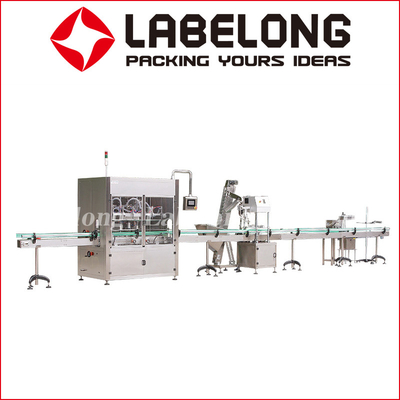

The full automatic quantitative liquid filling machine is designed for saving time on adjusting and testing machine,it can fill liquid or paste accurately by entering a certain filling volume.The PLC control method makes it easy to operate,the high speed working efficiency is ideal for medium or large scale production.It can work with the automatic capping machine and labeling machine to form a complete production line and realize high speed packaging work.
Advantages:
1. Wide filling range: 30ml-50000ml depends on different models and filling time
2. Fast filling speed: 100pcs/min (depends on the filling volume and working mode)
3. High filling accuracy: filling error ±1g
4. Multiple filling modes: automatic,manual,feet pedal,fixed point
Major Characteristics:
1.With SUS304/SUS316 injection piston pump filling, it is convenient to adjust filling dosage accurately, with high filling precision.
2. Material contacting parts are equipped with quick-release structures, it is easy to dismantle & reassemble, very convenient to clean and disinfect;
3. Filling heads with anti-drip device, ensuring no leakage, dripping.
4. PLC control system, frequency conversion; No filling without bottles; Auto counting, with high degree of automation.
5. Can be equipped with mixing & heating function to meet different materials viscosity & filling temp.
6. Made of top-quality stainless steel, totally in accordance with the requirement of food sanitation.
7. Designed & made on CE requirements, safey in operation & delicate in appearance.
Technical Parameters:
|
Parameters of 4 Head Piston Filling Machine
|
|
|
Number of filling heads
|
8
|
|
Filling capacity
|
50ml-1000ml
|
|
Filling form
|
Servo piston filling
|
|
Filling speed
|
25-40 bottles / hour (50-150ml bottle)
|
|
Filling accuracy
|
±1%
|
|
Air pressure
|
0.6-0.8MPa
|
|
Power
|
About 2KW/380V three-phase five-wire
|
|
Groove capacity
|
50 liters
|
|
Protection device
|
The liquid storage tank is shut down and the alarm is stopped.
|
|

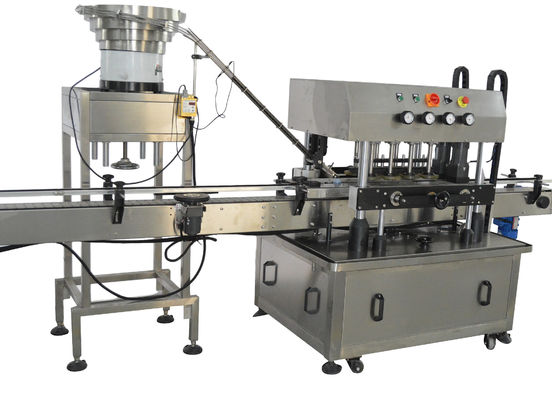

Parameters of Capping Machine
|
|
|
Covering method
|
Lifting the belt cover
|
|
Suitable specifications
|
According to the sample provided by the customer
|
|
Cap form
|
Pneumatic claw type capping pneumatic cap
(Different specifications need to change the cap and other accessories)
|
|
Speed
|
20 bottles / minute
|
|
Program control
|
Shared with the filling machine
|
|
Machine power
|
500W
|
|
Air pressure
|
0.6-0.8MPa
|
|
Power supply
|
220V single phase
|
Configuration List:
Shipping
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
