SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsLinear Bottle Filling Machine

Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml

Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml
Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml

Large Image :  Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml

Product Details:

Place of Origin: CHINA
Brand Name: LABELONG
Model Number: ZF1000

Payment & Shipping Terms:

Minimum Order Quantity: ONE SET
Price: USD2000-3000
Packaging Details: wooden case
Delivery Time: 5-8 Working days
Supply Ability: 100 SETS PER YEAR
Detailed Product Description
Automatic Grade: Automatic Driven Type: Electric,Pneumatic
Type: Filling Machine Voltage: 220V/380V
Condition: New Weight: 300KG
Packaging Type: Bags Application: Beverage,Food,Chemical,Commodity
After-sales Service Provided: Engineers Available To Service Machinery Overseas Packaging Material: Wood
Power: 2KW Warranty: ONE YEAR
Material: SUS304 Control: PLC Control
High Light:

Juice Sachet Pouch Filling Packing Machine

,

500ml Sachet Pouch Filling Packing Machine



China Good quality 500ml liquid Water juice sachet pouch filling packing machine

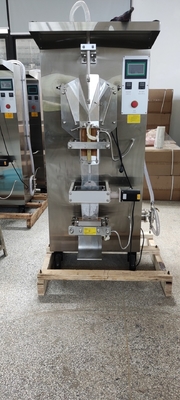

Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml 0

Vertical Metering Pump Liquid Water Pouch Sachet shampoo Packing Machine


Mechanical liquid packaging machine without a cursor sensor, without pull film motor pull film, packaging length is limited!


Liquid packaging machine is for the packaging of liquid materials developed automated multi-functional packaging machine. As a result of the use of vertical automatic bag, filling, heat sealing and cutting process, also known as filling liquid vertical packaging machine. As the machine uses a vertical film bag automatic molding process, according to a variety of different types of bags, the use of three sides sealed, four sides of the closure and the closure of the heat sealing method. Suitable for a variety of beverages, liquid seasonings and low viscosity grease and other fluid materials, automatic packaging. Detailed appearance see above illustration.

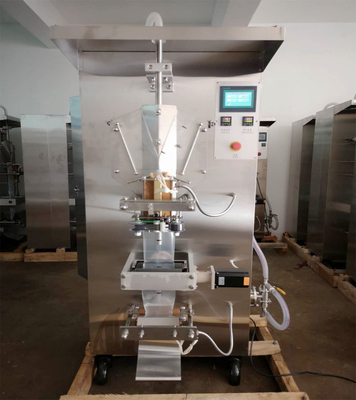

Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml 1

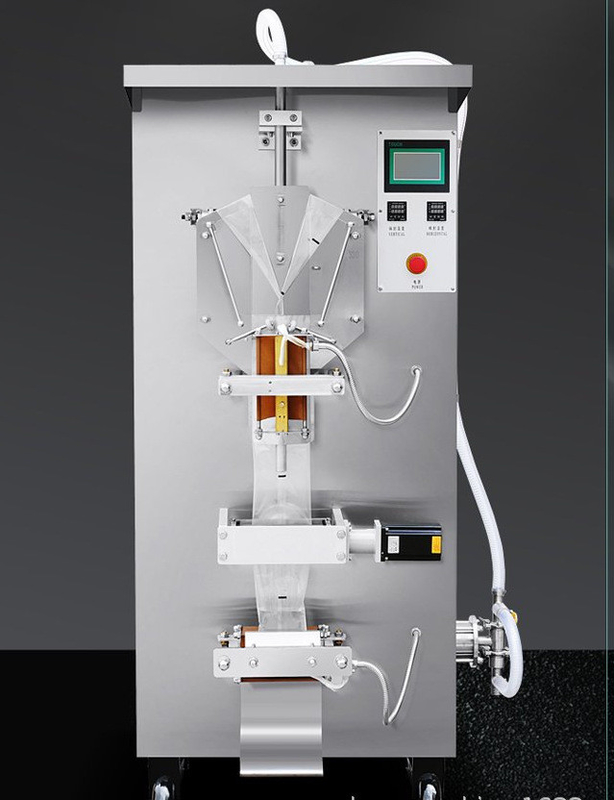

Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml 2Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml 3

Tracking sensor for logo position

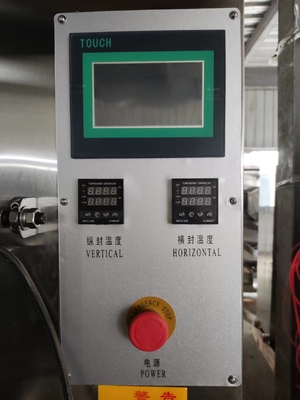

Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml 4
UV LAMP FOR WATER STERILIZER
Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml 5
DATE CODER

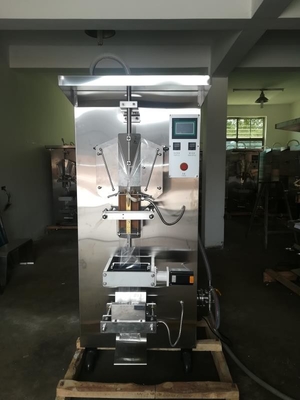

Liquid Water Juice Sachet Pouch Filling Packing Machine 500ml 6

Liquid packaging machine technical parameters
1. Motor power: 1.2-4.5 KW
2. Match power: 220V / 50-60Hz
3. Vertical sealing power: 500W;
4. UV germicidal lamp power: 15W
5. Transverse power: 500W;
6, packaging capacity 100-500ml
7 package size long 30-145mm Width 110-150mm

Liquid packaging machine function
1. Film bag automatic molding
2. UV sterilization
3. Automatic longitudinal sealing
4. Automatic marking function
5. Automatic bag automatic traction
6. Adjustable quantitative filling
7. Automatic transverse heat sealing
8. Automatically cut bags and provide a variety of incision options
9. Automatic counting function
10. Low viscosity fluid material circulation system
11. Finished product transmission system

Model SJ-ZF1000
Bag length 50-150mm
Bag width 30-150mm
Packaging film width 120-320mm
Packing capacity 50-500ml
Packing speed 1100-1300bags/h
Power 2.5kw
Overall dimensions 1050*880*2000mm
Packed size 1080*910*2050mm
Machine weight 380kg

Contact Details
SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD

Contact Person: Mrs. Guo

Tel: +86-13862027738

Send your inquiry directly to us (0 / 3000)
