SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsLinear Bottle Filling Machine

Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml

Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml
Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml

Large Image :  Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml

Product Details:

Place of Origin: CHINA
Brand Name: LABELONG
Model Number: ZF2000

Payment & Shipping Terms:

Minimum Order Quantity: ONE SET
Price: USD2000-3000
Packaging Details: wooden case
Delivery Time: 5-8 Working days
Supply Ability: 100 SETS PER YEAR
Detailed Product Description
Automatic Grade: Automatic Driven Type: Electric,Pneumatic
Type: Filling Machine Voltage: 220V/380V
Condition: New Weight: 300KG
Packaging Type: Bags Application: Beverage,Food,Chemical,Commodity
After-sales Service Provided: Engineers Available To Service Machinery Overseas Packaging Material: Wood
Power: 2KW Warranty: ONE YEAR
Material: SUS304 Control: PLC Control
Bag Volume: 200-1000ml Filling Liquid: Water, Juice,milk
Highlight:

Pouch Filling Packing Machine 500ml

,

PLC Pouch Filling Packing Machine

Automatic Liquid Water Juice milk Sachet Pouch Filling Packing Machine 500ml 1000ml





Vertical Metering Pump Liquid Water Pouch Sachet shampoo Packing Machine


Mechanical liquid packaging machine without a cursor sensor, without pull film motor pull film, packaging length is limited!

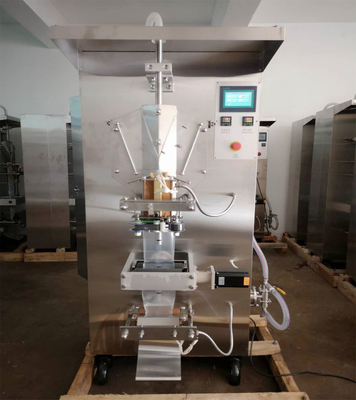

Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml 0


Liquid packaging machine is for the packaging of liquid materials developed automated multi-functional packaging machine. As a result of the use of vertical automatic bag, filling, heat sealing and cutting process, also known as filling liquid vertical packaging machine. As the machine uses a vertical film bag automatic molding process, according to a variety of different types of bags, the use of three sides sealed, four sides of the closure and the closure of the heat sealing method. Suitable for a variety of beverages, liquid seasonings and low viscosity grease and other fluid materials, automatic packaging. Detailed appearance see above illustration.
Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml 1
Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml 2Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml 3

Tracking sensor for logo position
Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml 4
UV LAMP FOR WATER STERILIZER
Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml 5
DATE CODER

Automatic Liquid Water Juice Milk Sachet Pouch Filling Packing Machine 500ml 1000ml 6

Liquid packaging machine technical parameters
1. Motor power: 1.2-4.5 KW
2. Match power: 220V / 50-60Hz
3. Vertical sealing power: 500W;
4. UV germicidal lamp power: 15W
5. Transverse power: 500W;
6, packaging capacity 100-500ml
7 package size long 30-145mm Width 110-150mm

Liquid packaging machine function
1. Film bag automatic molding
2. UV sterilization
3. Automatic longitudinal sealing
4. Automatic marking function
5. Automatic bag automatic traction
6. Adjustable quantitative filling
7. Automatic transverse heat sealing
8. Automatically cut bags and provide a variety of incision options
9. Automatic counting function
10. Low viscosity fluid material circulation system
11. Finished product transmission system

Model SJ-ZF2000
Bag length 50-180mm
Bag width 30-180mm
Packaging film width 120-320mm
Packing capacity 200-1000ml
Packing speed 1100-1300bags/h
Power 2.5kw
machine material 304 stainless steel

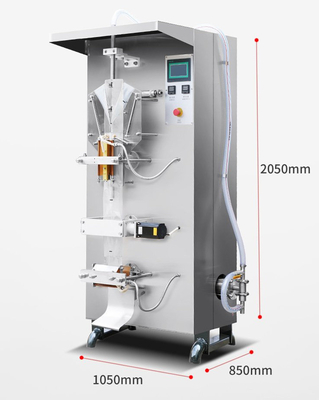

Overall dimensions 1050*880*2000mm
Packed size 1080*910*2050mm
Machine weight 380kg



we also have granula packing machine, powder packing machine, please feel free to contact me !
