Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon

Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon
Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon

Large Image :  Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon

Product Details:

Place of Origin: China
Brand Name: LABELONG
Certification: ISO
Model Number: L-S2011

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: USD5000-10000/SET
Packaging Details: wooden case
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Application: Bottle Condition: New
Plastic Processed: PET Blow Moulding Type: Stretch Blow Moulding
Automatic: SEMI AUTOMATIC Warranty: One Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V/50HZ
Weight: 800kg Power(w): 21KW
Material: Steel Capacity: 900-1500bph
Highlight:

20liter Blow Molding Machine

,

5 Gallon Blow Molding Machine

,

20L PET Bottle Blowing Machine

20liter 20L 5 Gallon Semi Automatic Plastic Pet Water Bottle Blowing Machine Blow Molding Machine

Semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-5 gallons. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle cosmetics, wide-mouth bottle etc.








Free Bottle Design
Various kinds of Water and Juice Bottle Mold/ Edible food Oil Bottle Mold/Shampoo Bottle Mold

Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon 0


Factory Price 2 Cavid 4 Cavities Semi Automatic Plastic Pet Mineral Water Bottle Blowing Blower Can Jar Making Maker Stretch Blow Molding Moulding Machine

1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast , adopting infrared oven to heat the perform ,the perform rotated and heated equally.
2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The machine can be operated in the step-by-step mode and the semi-auto mode.
5. The machine is small with low investment, safety lock system for the blow molding system, ensure safety operating.
6. Volume exchange will be through the PLC control panel by setting the film sending time and filling time only.
7. One person can operate semi-auto perform loading and product bottle discharging and combining the fully auto blower process.
8. Space saving and low cost for equipment investment.
9. Sound distinguish and lubrication device is equipped on the machine for easy maintenance.



Factory Price 2 Cavid 4 Cavities Semi Automatic Plastic Pet Mineral Water Bottle Blowing Blower Can Jar Making Maker Stretch Blow Molding Moulding Machine

Pneumatic Part Valve China /SMC/AIRTAC etc
Silence China/SMC
Electric Part PLC MITSUBISH/SIEMENS/XINGE etc.
Operating System MITSUBISH/SIEMENS/XINGE etc.
Air switch GERMANY BRAND
Breaker GERMANY BRAND
Note All of the electrical components adopts CEULCCC approved
international advanced high-tech product.



Main Parameters:

Item LBL-5G
Theoretical Output 70-80pcs/h
Max Container Volume 20L
Max Container Diameter 95mm
Max Container Height 320mm
Number of Cavity One Cavity
Heating Power 18Kw
Low Pressure Air Consumption 0.8m³/min
High Pressure Air Consumption 3.0m³/min
Mould Thickness 220mm
Weight 800Kg
Main Machine Size 2.2*0.73*1.8m
Heater Size 2.18*0.65*1.45m



Blow mold



Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon 3

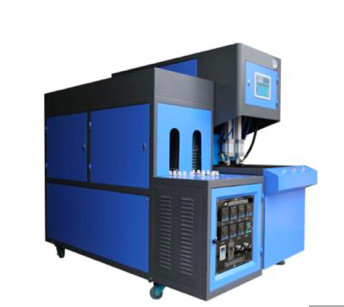

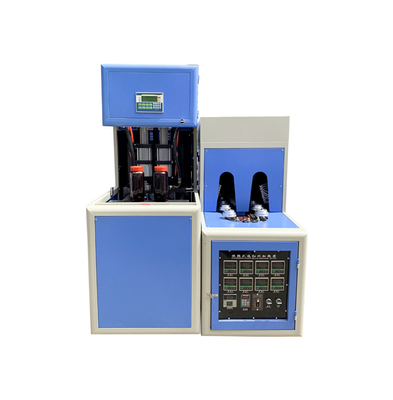

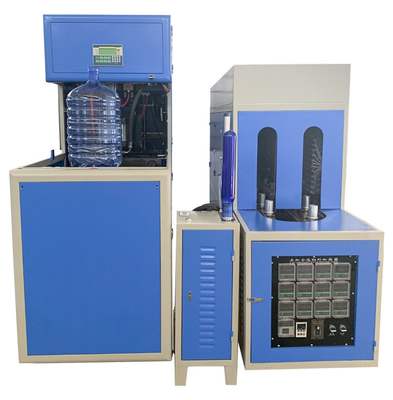

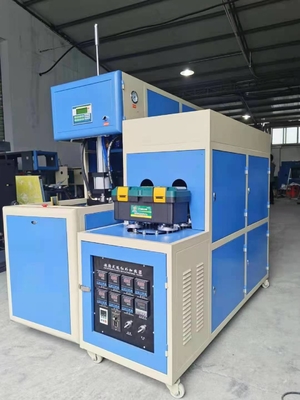

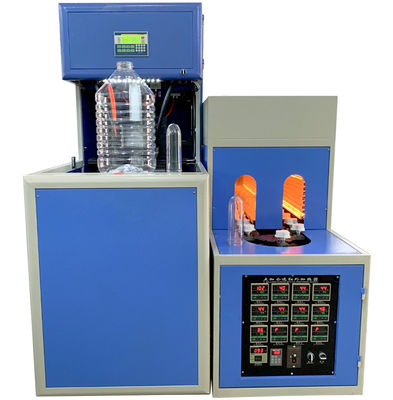

Machine photo



Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon 4



Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon 5



Semi Automatic Plastic Pet Water Bottle Blow Molding Machine 20liter 20L 5 Gallon 6
