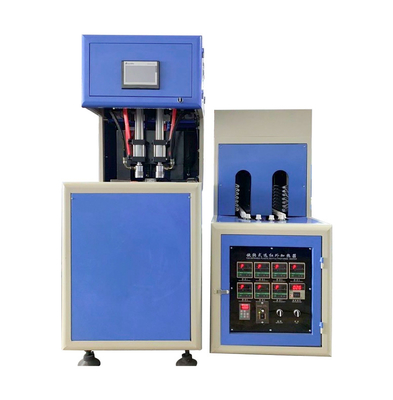

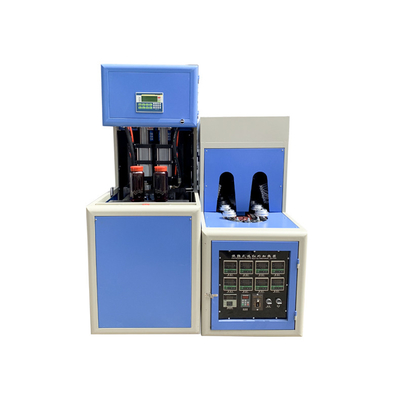

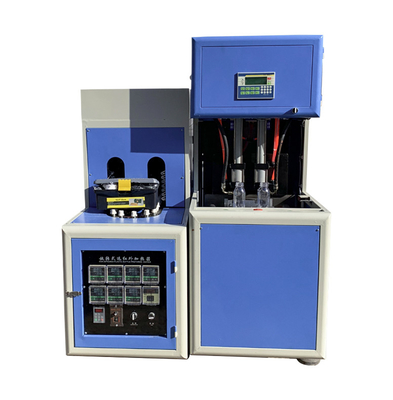

2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml

2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml
2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml

Large Image :  2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml

Product Details:

Place of Origin: China
Brand Name: LABELONG
Certification: ISO
Model Number: L-S2011

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: USD5000-10000/SET
Packaging Details: wooden case
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Application: Bottle Condition: New
Plastic Processed: PET Blow Moulding Type: Stretch Blow Moulding
Automatic: SEMI AUTOMATIC Warranty: One Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V/50HZ
Weight: 800kg Power(w): 21KW
Material: Steel Capacity: 900-1100bph
Bottle Volume: 100-2000ml Heater: Infrared Lamp
Highlight:

2000ml Juice Bottle Making Machine

,

2 Cavity Bottle Making Machine

,

1100bph Pet Bottle Blowing Machine



2 Cavity 100-2000ml Semi Automatic Plastic Pet Mineral Water oil juice Bottle making machine blowing machine



Semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-5 gallons. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle cosmetics, wide-mouth bottle etc.



2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 0


SEMI-AUTOMATIC BOTTLE BLOW MOLDING MACHINE


2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 1

Free Bottle Design
Various kinds of Water and Juice Bottle Mold/ Edible food Oil Bottle Mold/Shampoo Bottle Mold

2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 2


Factory Price 2 Cavid 4 Cavities Semi Automatic Plastic Pet Mineral Water Bottle Blowing Blower Can Jar Making Maker Stretch Blow Molding Moulding Machine

  1. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01 second.
  2. Operated only by one person without special training.
  3. Simple installation & startup adjustment.
  4. Perfect function with economic investment.
  5. Saving power and uneasy to worn out. Adopting new double crank four bars to lock
    mould and the cross fixed. Providing high pressure blowing system.
  6. Heating lamps are adjustable in directions to suit various preforms.
  7. Small size and compact construction with no space waste.
  8. We can provide performs and cap moulds for different bottles to meet customer's requirements.
  9. Auto load preform and auto dropping bottles

Factory Price 2 Cavid 4 Cavities Semi Automatic Plastic Pet Mineral Water Bottle Blowing Blower Can Jar Making Maker Stretch Blow Molding Moulding Machine

Pneumatic Part Valve China /SMC/AIRTAC etc
Silence China/SMC
Electric Part PLC MITSUBISH/SIEMENS/XINGE etc.
Operating System MITSUBISH/SIEMENS/XINGE etc.
Air switch GERMANY BRAND
Breaker GERMANY BRAND
Note All of the electrical components adopts CEULCCC approved
international advanced high-tech product.



Main Parameters:

Item LBL-2L LBL-5G
Theoretical Output 900-1100pcs/h
Max Container Volume 2L
Max Container Diameter 95mm
Max Container Height 320mm
Number of Cavity 2 Cavity
Heating Power 18Kw
Low Pressure Air Consumption 0.8m³/min
High Pressure Air Consumption 3.0m³/min
Mould Thickness 220mm
Weight 600Kg
Main Machine Size 1.6*0.61*1.58m
Heater Size 1.71*0.57*1.36m



2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 52 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 62 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 7

2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 8

2 Cavity Semi Automatic Pet Mineral Water Oil Juice Bottle Making Machine 100-2000ml 9

Our Production

Labelong focus on filling, packing & water treatment field, our factory takes up 60000 square meters ,more than 30 Professinal Tehchnicians and workers which is one of the professional & reliable Chinese manufacturers & provider for liquid & semi-liquid filling & packaging machinery, blow molding machines and water treatment systems with reliable quality & pretty good after sale service with CE certification & ISO9000:2001 certification.



No. Production line category Capacity
1 Hot filling production line 3,000-36,000BPH
2 Beverage processing System 1,000 Ltrs/H to 10,000 Ltrs/H
3 Bottled water production line 3,000-36,000BPH
4 5L Large capacity bottled water production line 700-5,000BPH
5 Carbonated drink production line 3,000-18,000BPH
6 Pulp juice production line 5,000-22,000BPH
7 Oil Filling line 3,000-10,000BPH
8 Linear Filling machine 300-900BPH
9 Bottlle Unscrambler Up to 20,000BPH
10 Barrelled water production line 300-2000 bucket/H
11 Water Treatment system 1,000 Ltrs/H to 10,000 Ltrs/H
12 OPP Labeling machine 6,000-24,000BPH
13 PVC Shrink Sleeve Labeling machine 6,000-24,000bph
14 Automatic Blow molding machine 1,000-7,000BPH
15 Full-automatic Film Wrapper & Shrinker 8-20 Packs per Minutes



RFQ
Q1: Are you a trading company or a manufacturer?

A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.



Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you the high quality machines with one year guarantee and supply long life technical support.



Q3: When can I get my machines after I paid?

A: The delivery time is based on the exact machine you confirmed.



Q4: How can I install my machines when they arrive?

A: We will send our engineers to your factory to install the machines and train your staffs how to operate

the machines.



Q5: How about the spare parts?

A: After we deal with all the things, we will offer you a spare parts list for you refer.
