Automatic CSD 500ML Carbonated Drink Filling Machine

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

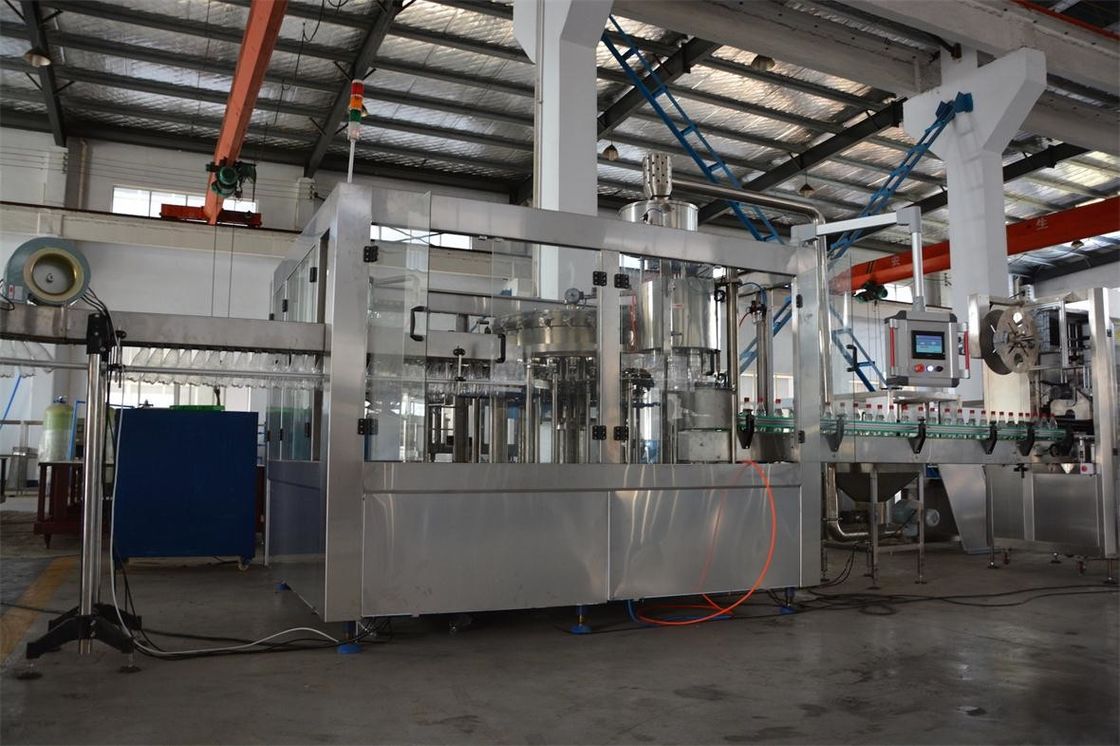

Automatic CSD 500ML Carbonated Drink Filling Machine

Automatic CSD 500ML Carbonated Drink Filling Machine
Automatic CSD 500ML Carbonated Drink Filling Machine

Large Image :  Automatic CSD 500ML Carbonated Drink Filling Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Product Name: Soft Drink (Csd) Bottling Machine Automatic Grade: Automatic
Application: Beverage Bottle Type: Glass Bottle
Function: Bottle Washing Filling Capping Capacity: 3000-18000 Bottles / Hour (500ML)
Filling System: Isobaric Filling Containers Applied For: PET Bottle Of All Volumes And Shapes
High Light:

500ML Carbonated Drink Filling Machine

,

CSD Beverage Filling Equipment

,

kvass Carbonated Drink Filling Machine

AUTOMATIC CARBONATED SOFT DRINK (CSD) BOTTLING MACHINE





Application: carbonated drinks, CSD, cola, soda water, sparking water, energy drinks, kvass, beer, etc.
Capacity: 3000-18000 bottles / hour (500ML)
Containers applied for: PET bottle of all volumes and shapes
Filling system: Isobaric filling
Technical features of carbonated filling machine
The air conveyor is directly connected with bottle-in starwheel. The bottle is transferred by neck holding.
High speed line adopts bottle clamps to transfer the bottle. It makes work much easier when bottle size is changed.
By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
The high speed line is of ring type pressure bearing hydraulic cylinder.




High speed and large flow filling valve assures the high filling speed and exact fluid level.
Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height
