SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsCarbonated Drink Filling Machine

SUS304 2000BPH Soda Beer Glass Bottle Filling Line

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

SUS304 2000BPH Soda Beer Glass Bottle Filling Line

SUS304 2000BPH Soda Beer Glass Bottle Filling Line
SUS304 2000BPH Soda Beer Glass Bottle Filling Line SUS304 2000BPH Soda Beer Glass Bottle Filling Line SUS304 2000BPH Soda Beer Glass Bottle Filling Line SUS304 2000BPH Soda Beer Glass Bottle Filling Line SUS304 2000BPH Soda Beer Glass Bottle Filling Line

Large Image :  SUS304 2000BPH Soda Beer Glass Bottle Filling Line

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: RFC-BC

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: 20000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Material: SUS304 Speed: 1000-10000bph
Control: PLC Filling Material: Beer
Automatic: YES Power: 2.5-8kw
Filling System: Gravity Orisobaric Filling Containers Applied For: Glass Bottle
Highlight:

2000BPH glass bottle filling line

,

2000BPH soda filling machine

,

SUS304 glass bottle filling line

Automatic 2000BPH high quality low price glass bottle beer/wine/alcohol 3 in 1 washing filling capping machine





Application: water, soda water, juice,carbonated drinks, CSD, cola, soda water, energy drinks, kvass, beer, etc.
Containers applied for: glass bottle.
Filling system: gravity orisobaric filling
Production capacity: 1,000BPH– 10,000BPH (500ml)



Model RFC-BC 12/6 RFC-BC 18/6 RFC-BC 24/8 RFC-BC 32/8
Capacity 1000-1200 2000-3000 4000-5000 6000-8000
Motor power 1.5 1.5 3.75 5.6
Dimension 1700x1150x2300 1800x1350x2300 1900x1600x2500 2100x1850x2500
Total weight 2000 2400 3000 3500





Technical features of glass bottle filling machine
RFC-BC series Beer Filling Machine ( Monobloc Rinser Filler Capper ) are designed to fill beer into glass bottle with crown caps

1. Our RFC-BC series monobloc rinser filler capper style beer filling machine are adopted the negative pressure filling design, perfectly for bottling beer into glass bottles using metal crown caps

2. Adopts the negative pressure filling which we specifically design for CSD filling, it ensures minimal loss of CO2 from the product

3. The configuration of filler is advanced, pithy and rational and the driving and up-down transmission is located between the stainless steel working plat and the bracket and their waterproof is good, sanitary and credible and adjusting and maintaining are very easy.

4. The professional filling valves ensure the valves open and close flexibly because of using guide sheath. Adopting easy-fixed configuration, the valve is easy to cleaning promptly and has automatic cleaning function.

5. The filling operation is faster and more stable because the new type micro pressure filling system is adopted.


6. The electropneumatic filling valves are equipped with interchangeable level tubes to make the best precision filling, and the filling level for the bottle is adjust.

7. No bottle no filling, no bottle no capping

8. Bottles Protecting gripper to make sure the bottle non-crash during washing filling & capping steps

9. Available Models of our beer filling machine: (based on 500ml glass bottle) From 1000BPH to 10000BPH

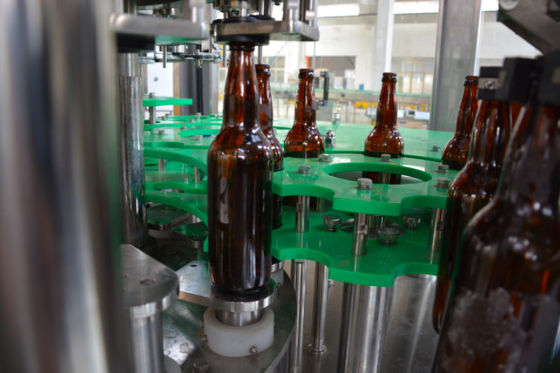

SUS304 2000BPH Soda Beer Glass Bottle Filling Line 0

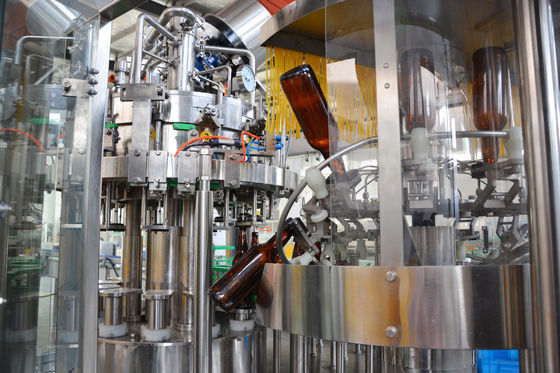

SUS304 2000BPH Soda Beer Glass Bottle Filling Line 1

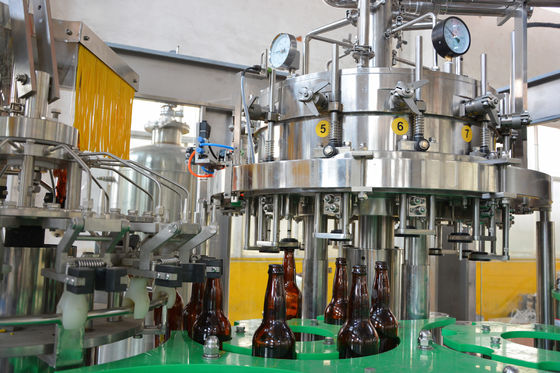

SUS304 2000BPH Soda Beer Glass Bottle Filling Line 2



Configure list

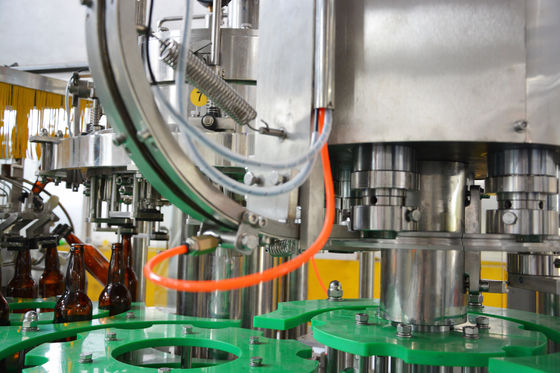

SUS304 2000BPH Soda Beer Glass Bottle Filling Line 3

Other Machine we have

Shipping photo



Suzhou Labelong Packaging not only serve a large range of quality packaging machinery( filling machine, blowing machine, water treatment) at very competitive prices, we also have an experienced team of Customer Service Engineers who can perform installations, preventative maintenance for your machines.



If you are interest any packing machine, please feel free to contact me



Thanks



Nelly



E-Mail: nelly@labelong.com

Mobile/whatsApp: 86-13862027738

Skype: nelly821
