SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsCarbonated Drink Filling Machine

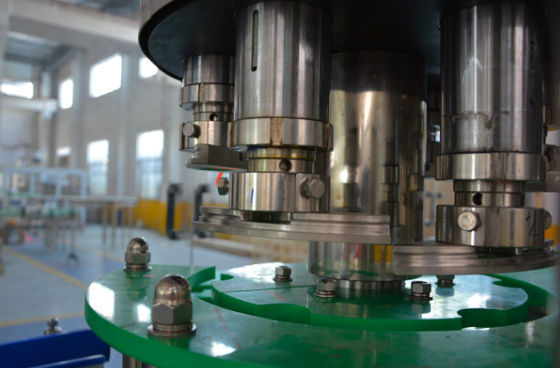

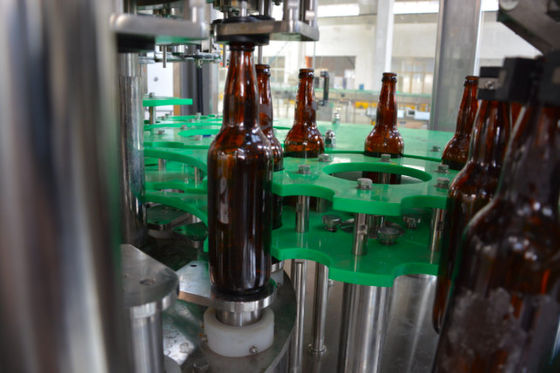

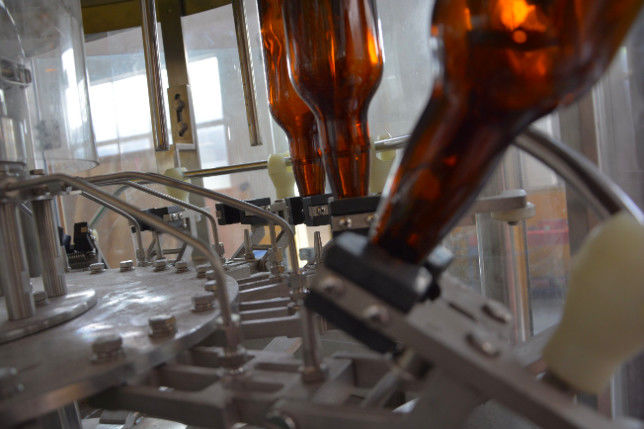

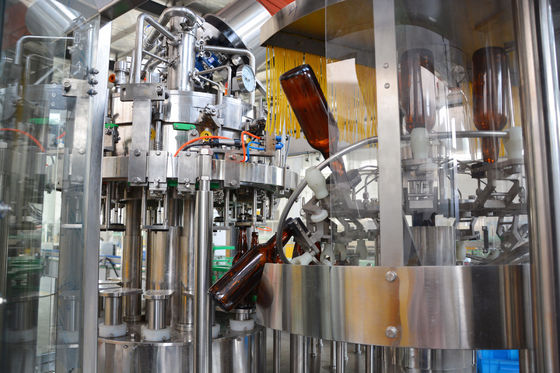

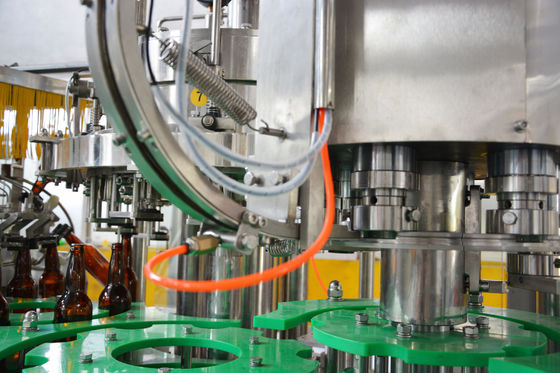

1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine

1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine
1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine

Large Image :  1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: RFC-BC

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: 20000/SET
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Material: SUS304 Speed: 1000-10000bph
Control: PLC Filling Material: Beer
Automatic: YES Power: 2.5-8kw
Product Name: Carbonated Drink Filling Machine Feature: 3 In 1
Highlight:

3 In 1 Carbonated Drink Filling Machine

,

1000 BPH washing filling capping machine

,

1000 BPH Carbonated Drink Filling Machine

Automatic 1000BPH high quality low price glass bottle beer/wine/alcohol 3 in 1 washing filling capping machine





AUTOMATIC BEER GLASS BOTTLE FILLING MACHINE

Glass Bottle Beer Filling Mac

3 in 1 Rotary Filling machine.





Application: water, soda water, juice,carbonated drinks, CSD, cola, soda water, energy drinks, kvass, beer, etc.
Containers applied for: glass bottle
Filling system: gravity orisobaric filling
Production capacity: 1,000BPH– 10,000BPH (500ml)


Technical features of glass bottle filling machine
RFC-BC series Beer Filling Machine ( Monobloc Rinser Filler Capper ) are designed to fill beer into glass bottle with crown caps

1. Our RFC-BC series monobloc rinser filler capper style beer filling machine are adopted the negative pressure filling design, perfectly for bottling beer into glass bottles using metal crown caps

2. Adopts the negative pressure filling which we specifically design for CSD filling, it ensures minimal loss of CO2 from the product.

3. The configuration of filler is advanced, pithy and rational and the driving and up-down transmission is located between the stainless steel working plat and the bracket and their waterproof is good, sanitary and credible and adjusting and maintaining are very easy.

4. The professional filling valves ensure the valves open and close flexibly because of using guide sheath. Adopting easy-fixed configuration, the valve is easy to cleaning promptly and has automatic cleaning function.

5. The filling operation is faster and more stable because the new type micro pressure filling system is adopted.


6. The electropneumatic filling valves are equipped with interchangeable level tubes to make the best precision filling, and the filling level for the bottle is adjust.

7. No bottle no filling, no bottle no capping

8. Bottles Protecting gripper to make sure the bottle non-crash during washing filling & capping steps

9. Available Models of our beer filling machine: (based on 500ml glass bottle) From 1000BPH to 10000BPH

1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 01000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 11000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 2

1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 3

1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 4



1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 5



Beer Filling Machine, Beer Bottling Machine, Beer Filling Machine

Model RFC-BC 12/6 RFC-BC 18/6 RFC-BC 24/8 RFC-BC 32/8
Capacity 1000-1200 2000-3000 4000-5000 6000-8000
Motor power 1.5 1.5 3.75 5.6
Dimension 1700x1150x2300 1800x1350x2300 1900x1600x2500 2100x1850x2500
Total weight 2000 2400 3000 3500

Configure list
1000 BPH Beer Wine 3 In 1 Carbonated Drink Filling Machine 6

Other Machine we have

Shipping photo



Suzhou Labelong Packaging not only serve a large range of quality packaging machinery( filling machine, blowing machine, water treatment) at very competitive prices, we also have an experienced team of Customer Service Engineers who can perform installations, preventative maintenance for your machines.



If you are interest any packing machine, please feel free to contact me



Thanks



Nelly



E-Mail: nelly@labelong.com

Mobile/whatsApp: 86-13862027738

Skype: nelly821
