Product Details:
Payment & Shipping Terms:
|
| Material: | SUS304 | Product Name: | Glass Bottle Packaging Machine |
|---|---|---|---|
| Speed: | 1000-10000bph | Control: | PLC |
| Filling Material: | Beer | Automatic: | YES |
| Power: | 2.5-8kw | ||
| Highlight: | SUS304 glass bottle packaging machine,1000BPH cold drink filling machine,1000BPH glass bottle packaging machine |
||

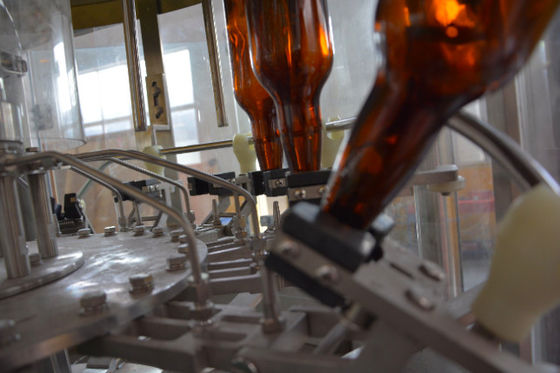

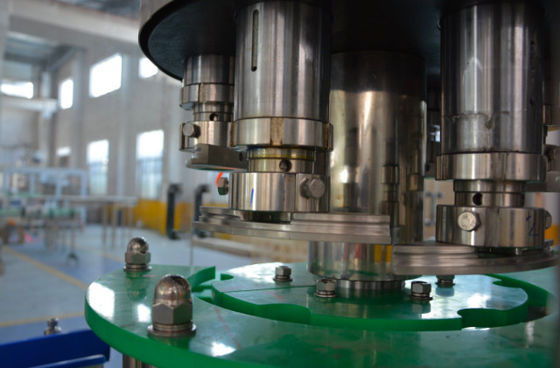

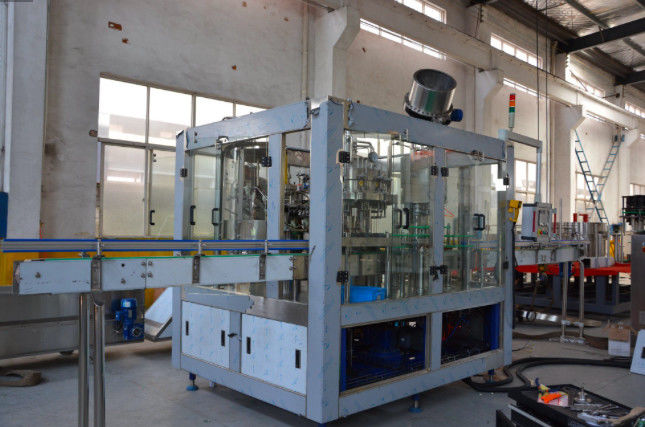

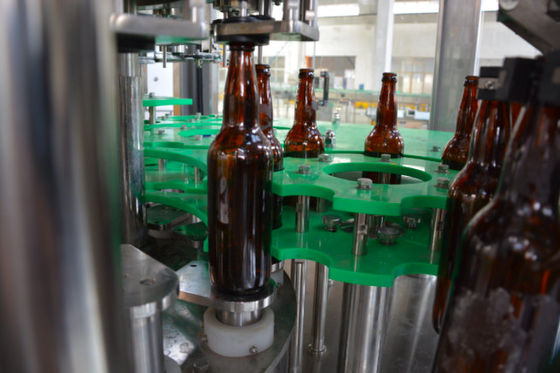

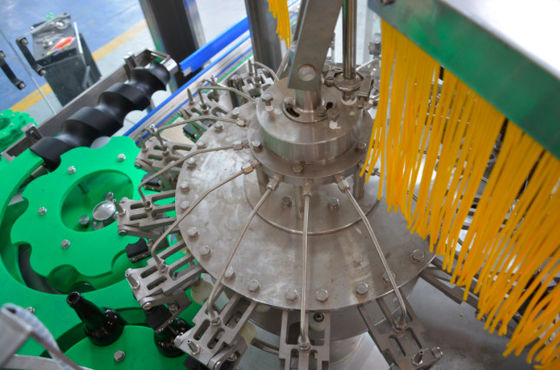

Automatic small capacity glass bottle/PET bottle beer/wine/gas water 3 in 1 washing filling capping machine
1. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
2. Specially designed stainless steel bottle clamp does not contact the thread parts of the bottleneck, avoiding the second contamination.
3. The high-speed line is of ring type pressure bearing hydraulic cylinder.
4. High speed and large flow filling valve assure the high filling speed and exact fluid level.
Application: water, soda water, juice,carbonated drinks, CSD, cola, soda water, energy drinks, kvass, beer, etc.
Containers applied for: glass bottle
Filling system: gravity orisobaric filling
Production capacity: 1,000BPH– 10,000BPH (500ml)
| Model | RFC-BC 12/6 | RFC-BC 18/6 | RFC-BC 24/8 | RFC-BC 32/8 |
| Capacity | 1000-1200 | 2000-3000 | 4000-5000 | 6000-8000 |
| Motor power | 1.5 | 1.5 | 3.75 | 5.6 |
| Dimension | 1700x1150x2300 | 1800x1350x2300 | 1900x1600x2500 | 2100x1850x2500 |
| Total weight | 2000 | 2400 | 3000 | 3500 |
Configure list
Other Machine we have
Shipping photo
Suzhou Labelong Packaging not only serve a large range of quality packaging machinery( filling machine, blowing machine, water treatment) at very competitive prices, we also have an experienced team of Customer Service Engineers who can perform installations, preventative maintenance for your machines.
If you are interest any packing machine, please feel free to contact me
Contact Person: Mrs. Guo
Tel: +86-13862027738
