Product Details:
Payment & Shipping Terms:
|
| Prodct Name: | 8000 BPH Mango Juice Packing Machine | Filling Liquid: | Juice |
|---|---|---|---|
| Capacity: | 8000BPH | Material: | 304 Stainless Steel |
| Brand: | Labelong | Control: | PLC |
| Bottle Type: | PET/ Glass Bottle | Power: | 3.29kw |
| High Light: | 8000 BPH mango juice packing machine,8000 BPH juice filling equipment,304 SUS mango juice packing machine |
||

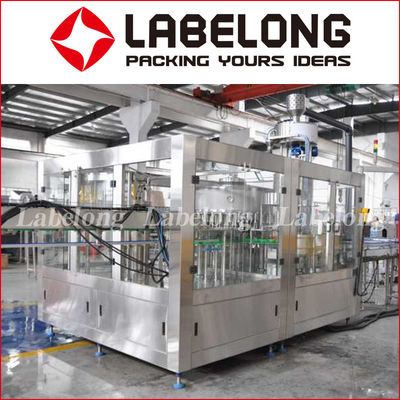

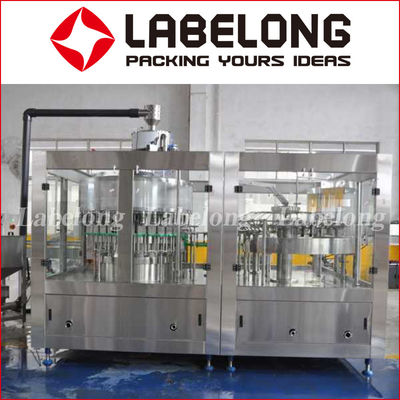

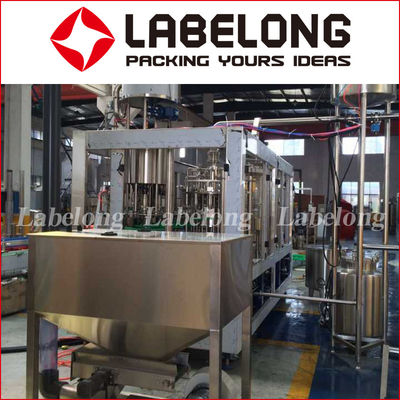

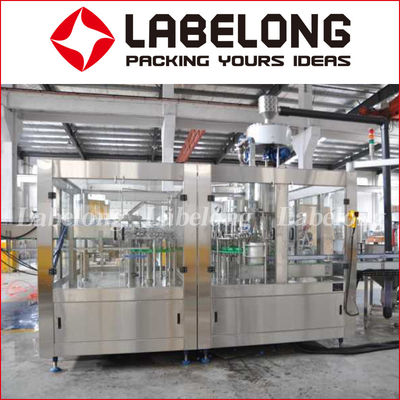

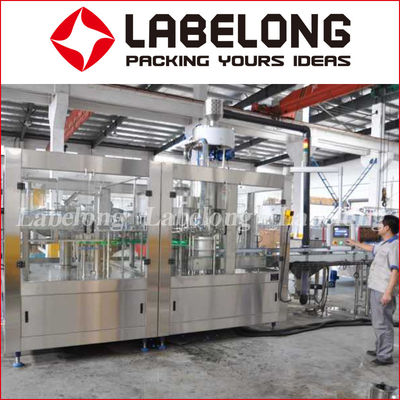

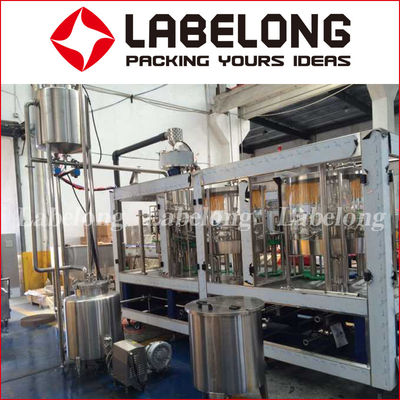

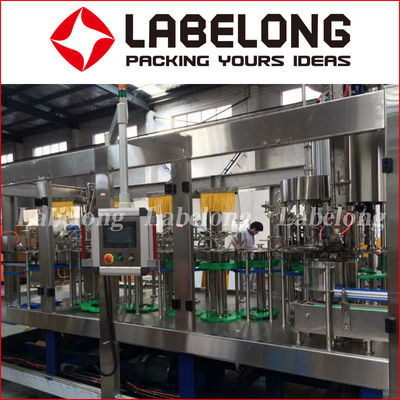

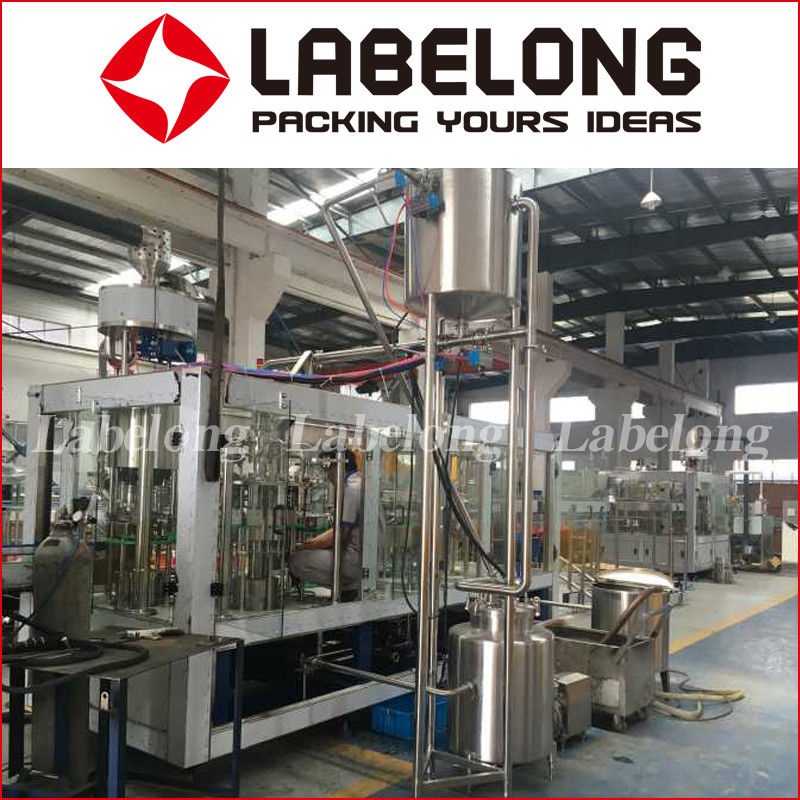

PET Bottle 304 SUS 8000 BPH Mango Juice Packing Machine
Mango Juice Packing Machine is the standard 3 in 1 monoblock for rinsing, pulp juice filling and capping. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water. The filling valve material is SUS304. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
Technical Parameter
| Model RFC-H series | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Washing-Filling-Capping | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | ||
| Producing capacity (600ml) |
2000-4000 (bph) |
5000-7000 (bph) |
8000-12000 (bph) |
12000-15000 (bph) |
16000-20000 (bph) |
20000-24000 (bph) |
||
| Applicable bottle (mm) | φ=50-108 H=170-340 330ml-2.25L | |||||||
| Pressure (kg/cm2) | 2~3 | |||||||
Outside vacuum pump power (kw) |
Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
Main motor 7.5kw |
Main motor 9.5kw |
||
| Overall dimension (mm) (LxWxH) |
2100x1400 x2500 |
2460x1720 x2650 |
3100x2100 x2650 |
3500x2500 x2650 |
4600x1800 x2650 |
5200x4500 x3400 |
||
| Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | ||
Configuration List
Our factory
Shipping photo
RFQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate
the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
