PE PVC Film Automatic 26pcs/Min Shrink Packing Machine

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

PE PVC Film Automatic 26pcs/Min Shrink Packing Machine

PE PVC Film Automatic 26pcs/Min Shrink Packing Machine
PE PVC Film Automatic 26pcs/Min Shrink Packing Machine

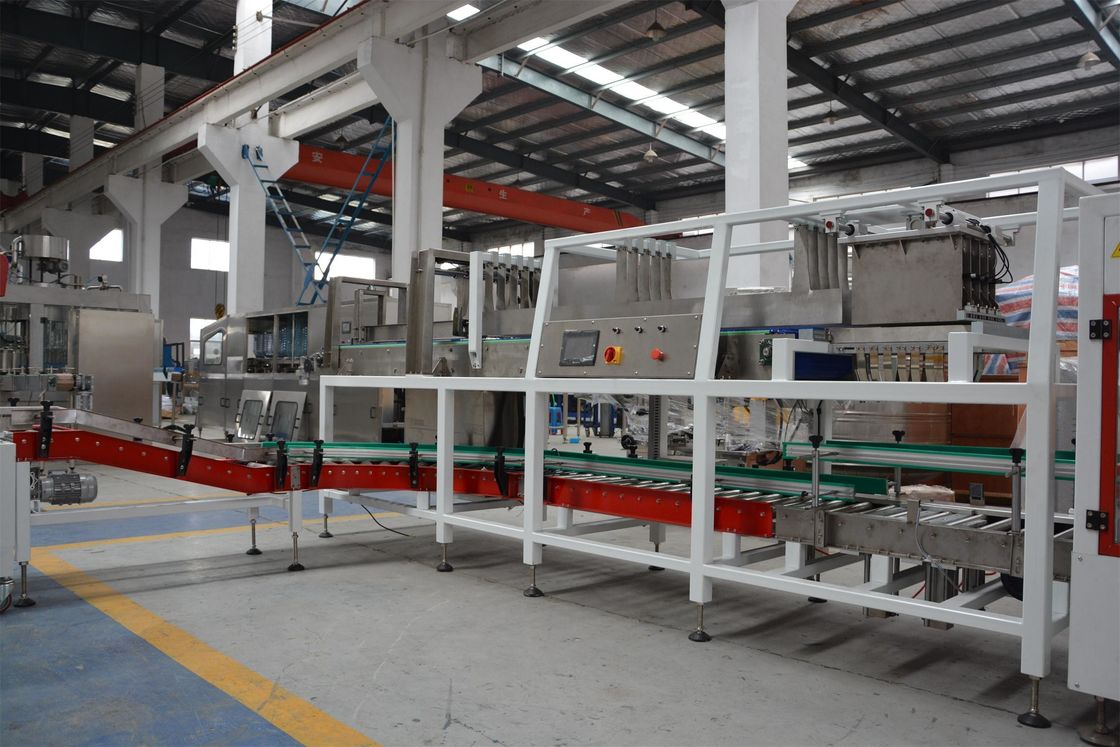

Large Image :  PE PVC Film Automatic 26pcs/Min Shrink Packing Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Product Name: Shrink Packing Machine Speed: 26pcs/Min
Type: Automatic Film: PE PVC Film
Application: Soft Drink, Liquor Advantage: Anti-rust
Machine Weight: 3000kg Working Table Height: 1150±50㎜ (Adjustable)
High Light:

26pcs/min Shrink Packing Machine

,

26pcs/min plastic bottle wrapping machine

,

Shrink Packing Machine

PE PVC Film Automatic 26pcs/Min Shrink Packing Machine





SHRINK FILM PACKING MACHINE

Shrink Wrapping machine

Packing Machine

The shrinking film wrapping machine is a continuous roll-off of film rolls, which are cut to the required length, transported to the bottom of a set of containers by a vacuum-adsorbed ramp and superimposed at the end of the film to the beginning of the film under the container , Followed by the packaging of the plastic film into the heating channel is sent to the final form of film packaging products, automated packaging technology equipment. Applicable containers are plastic bottles, glass bottles, cans and so on.
Application:
Soft drink, liquor (beer, rice wine and alcohol, etc.)
Liquid food (edible oil, vinegar and soy sauce, etc.)
Daily commodities (detergent, shampoo and so on)
Capacity: 10-45 packs/min




Product Description.
Appearance concision, beauty, fracture novel, unique, convenient to maintain;
Big screen, manipulation interface LCD Chinese and English display;
Pneumatic expand support film roller, film change is quick, film change just need two minute;
Film tension transport, even and plat, film cutting controlling is precision, cut is tidy;
Super servo controlling technology can keep each fracture precision in-phase, transmission is reliably;
Heating case fracture is reasonable, heat insulation and warm keeping, temperature controlling precision is highly.
Match Germany Siemens, Germany P+F, Japan SMC, Italy Motuoliao ect international most advanced controlling component, device is fine, working condition is steadily.
Mechanism drive part adopt to heating treatment stainless steel or medium carbon steel ect material; surface spray coating quality is fine; whole machine anti-rust character is very highly;
While all the electricity, pneumatic controlling accord with latest international applied criterion (CE criterion)
While electricity cut, set manpower rotary conveyor belt device, easy to move heating tunnel inside product outside;
Wooden case and wrap film separately package;





Capacity 25-26pcs per minutes (500ml 4*6)
Max. product size 270*650*350mm
Max. packing size 600*650*450mm (L*W*H)
Working pressure 0.4-0.6Mpa
Air exhaust 60L/min
Input Power 3PH 380V 50HZ
Main Motor power 48kw
Machine size (L)12900×(W)1350×(H)2100
Machine weight 3000kg
Film request Transparent film
Film width: 200-750mm
Film thickness: 0.07-0.13mm
Roll Film weight: :≤440KG
Working table height 1150±50㎜ (Adjustable)
