SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD
Home ProductsShrink Packing Machine

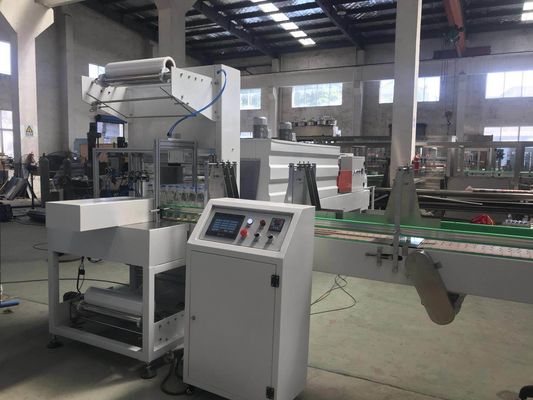

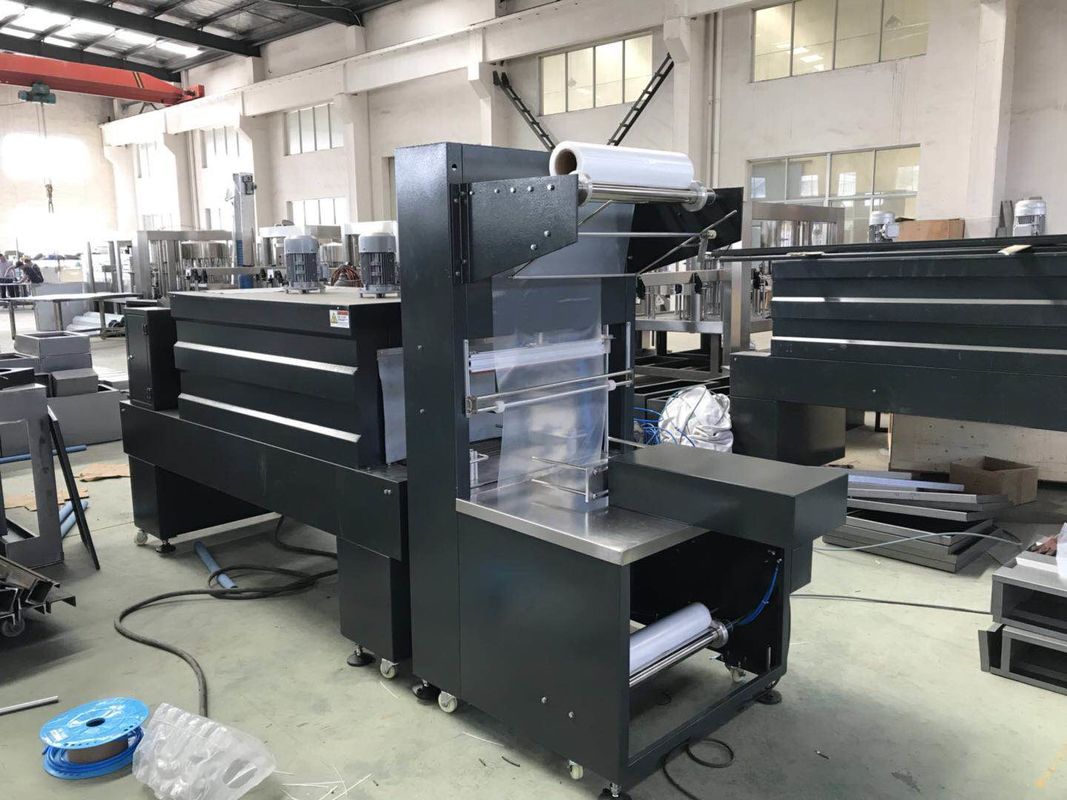

PVC Semi Automatic 4 Pcs/Min 0.03mm Shrink Film Packaging Machine

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

PVC Semi Automatic 4 Pcs/Min 0.03mm Shrink Film Packaging Machine

PVC Semi Automatic 4 Pcs/Min 0.03mm Shrink Film Packaging Machine
PVC Semi Automatic 4 Pcs/Min 0.03mm Shrink Film Packaging Machine

Large Image :  PVC Semi Automatic 4 Pcs/Min 0.03mm Shrink Film Packaging Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Product Name: Shrink Film Packaging Machine Max. Packing Size: 420*400*350mm (L*W*H)
Suitable Plastic Film Thickness: 0.03-0.15mm Heating Temperature: 260 Degrees Adjustable
Working Pressure: 0.6-0.8Mpa Input Power: 3PH 380V 50HZ
Motor Power: 22kw
Highlight:

4 pcs/min shrink film packaging machine

,

PVC water bottle shrink wrapping machine

,

0.03mm shrink film packaging machine

PVC Semi Automatic 4 Pcs/Min 0.03mm Shrink Film Packaging Machine





The shrinking film wrapping machine is a continuous roll-off of film rolls, which are cut to the required length, transported to the bottom of a set of containers by a vacuum-adsorbed ramp and superimposed at the end of the film to the beginning of the film under the container , Followed by the packaging of the plastic film into the heating channel is sent to the final form of film packaging products, automated packaging technology equipment. Applicable containers are plastic bottles, glass bottles, cans and so on.
Application:
Soft drink, liquor (beer, rice wine and alcohol, etc.)
Liquid food (edible oil, vinegar and soy sauce, etc.)
Daily commodities (detergent, shampoo and so on)
Capacity: 10-45 packs/min
Product Description.
Appearance concision, beauty, fracture novel, unique, convenient to maintain;
Big screen, manipulation interface LCD Chinese and English display;
Pneumatic expand support film roller, film change is quick, film change just need two minute;
Film tension transport, even and plat, film cutting controlling is precision, cut is tidy;
Super servo controlling technology can keep each fracture precision in-phase, transmission is reliably;
Heating case fracture is reasonable, heat insulation and warm keeping, temperature controlling precision is highly.
Match Germany Siemens, Germany P+F, Japan SMC, Italy Motuoliao ect international most advanced controlling component, device is fine, working condition is steadily.
Mechanism drive part adopt to heating treatment stainless steel or medium carbon steel ect material; surface spray coating quality is fine; whole machine anti-rust character is very highly;
While all the electricity, pneumatic controlling accord with latest international applied criterion (CE criterion)
While electricity cut, set manpower rotary conveyor belt device, easy to move heating tunnel inside product outside;
Wooden case and wrap film separately package;





Capacity 3-4 pcs per minutes
Max. packing size 420*400*350mm (L*W*H)
Suitable plastic film thickness 0.03-0.15mm
Heating temperature 260 degrees adjustable
Working pressure 0.6-0.8Mpa
Input Power 3PH 380V 50HZ
Motor power 22kw
Tunnel size 2530*920*1800mm(L*W*H)
Packing head size 1500*1100*1900mm(L*W*H)
