Automatic Plastic Film Heat Shrink Wrapping Machine For PET Water Bottle

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

Automatic Plastic Film Heat Shrink Wrapping Machine For PET Water Bottle

Automatic Plastic Film Heat Shrink Wrapping Machine For PET Water Bottle
Automatic Plastic Film Heat Shrink Wrapping Machine For PET Water Bottle

Large Image :  Automatic Plastic Film Heat Shrink Wrapping Machine For PET Water Bottle

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE
Model Number: L-SP8

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD25000-35000
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Product Name: PE Film Shrink Packing Machine Speed: 30pcs/Min
Application: Food, Beverage, Medicine Capacity: 30-33pcs Per Minutes
Max. Product Size: 270*650*350mm Suitable Plastic Film Thickness: 0.03-0.15mm
Condition: New Grade: Automatic
Control: PLC Control Film: PE Shrink Film
Packing: Bottle/can Power: 55kw
Voltage: 380v /220v Conveyor Height: 105mm
Highlight:

260C Heat Shrink Wrapping Machine

,

PET Water Bottle Shrink Wrapping Machine

,

Shrink Packing Machine 30pcs/Min





Automatic Plastic Film Heat Shrink Wrapping Machine/Shrink Packing Machine For PET Water Bottle




Introduction :

Automatic shrink film packaging machine is a continuous film roll, according to the required length of the film cut to the vacuum suction of the plastic film transported to the bottom of a group of containers, containers continue to move forward while the plastic film wrapped by the lever Container and superimposes the end of the film onto the plastic film over the container, followed by the plastic film-coated container being fed into the heating channel and finally forming the automated packaging technology for the film wrapping product.



Including container feeding, container grouping arrangement, film unwinding device, film cutting system, film conveying, shrink film winding and shrinking furnace.



Application

Can be packaged in different containers, such as: plastic bottles, glass bottles, cans, jars or a number of small packages.

Automatic shrink film packaging machine continuous linear.



Capacity 30-35pcs per minutes
Max. product size 270*650*350mm
Max. packing size 600*650*450mm (L*W*H)
Suitable plastic film thickness 0.03-0.15mm
Heating temperature 260 degree adjustable
Working pressure 0.6-0.8Mpa
Input Power 3PH 380V 50HZ
Motor power 55kw
Machine size (L)12000×(W)1100×(H)2100
Machine weight 4000kg





Specification:

●While package type not change, just need to change bottle height and bottle neck diameter, just need 20 minute; while not change bottle neck diameter and bottle height, just change package specification, not more than 10 minute.



● Bottle entry belt drive by frequency motor, adopt to plastic chain net belt conveyor; in addition, match one set of frequency transducer controlling and facility connecting conveyor chain, ensure bottle smoothly enter into each channel tunnel; according to product package type, via vibrate parse device divide product; each channel bottle arrange and number control by conveyor belt top sensor; can control entrance bottle stream pressure according to entrance bottles streams; bottle entrance place set inspection device of bottle full and lacking situation, can let bottle efficiency separation.



● Bottle separate and group: two group shifting fork that drive by servo motor, group bottle as package required number, adopt to linear bottle separate, control by servo motor, accuracy locate, easy to debug, very reliable.



● Bottle hander film wrapping: via bottle handing pole control each group bottle movement distance, let it synchronization with film lifting pole, and let bottle push to film wrapping section belt; film lifting pole and film lifting device match torsion limit stopper, while bottle drop or bottle block, limit stopper movement let machine auto stop, after failure solve, then turn limit stopper hand wheel reset.



  ● Have the function: while lack bottle, the machine will alarm, no bottle no film feeding function



● Controlling system: adopt to PLC and touch screen controlling, have manual. Auto move method, touch screen have full machine manipulation function, can display instant and accumulated package quantity, and enable can print with the connected printer. Setting procedure is more quick and precise; controlling panel adopt to electronics touch and control button controlling, can directly input and revise package type parameter, also can save different package specification parameter; timely supervise facility operation whole process. All the working procedure all have sensor checker, have ego diagnose function, if have any breakdown, facility will auto stop, alarm light blink, display breakdown type indication on the touch screen; common type reducer motor matching frequency transducer, whole machine limitless speed adjust, move transmission is very steadily; can as above situation change, auto control machine movement speed.

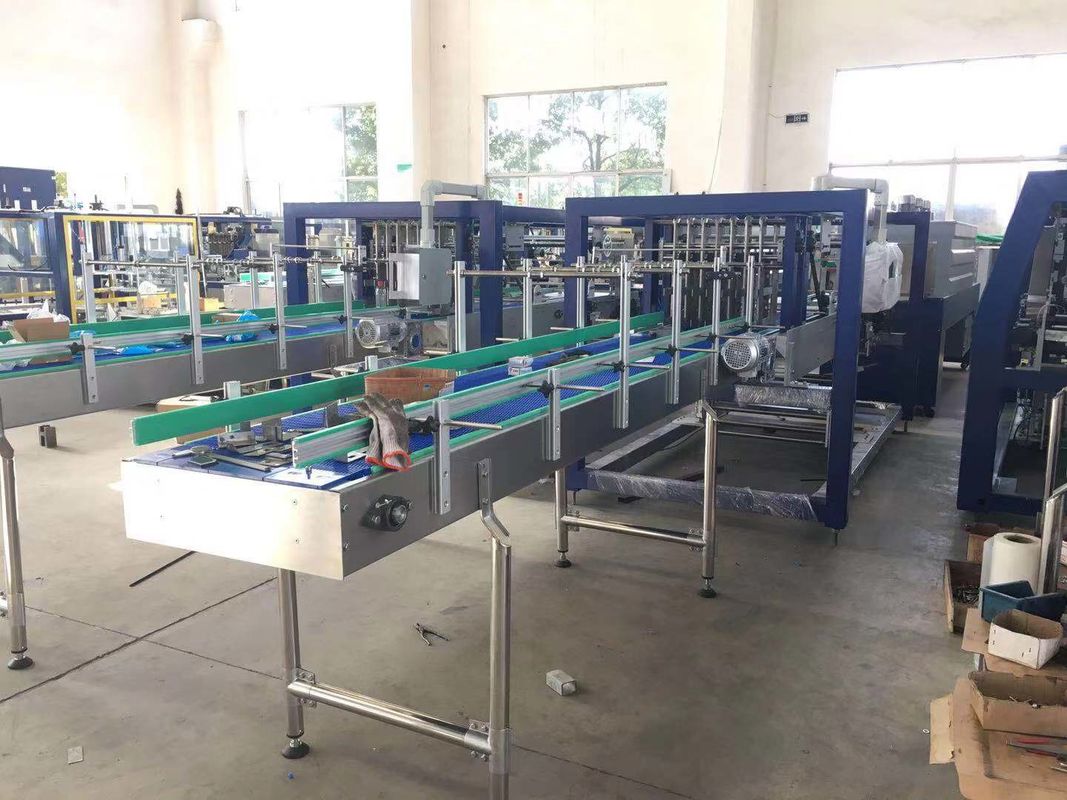

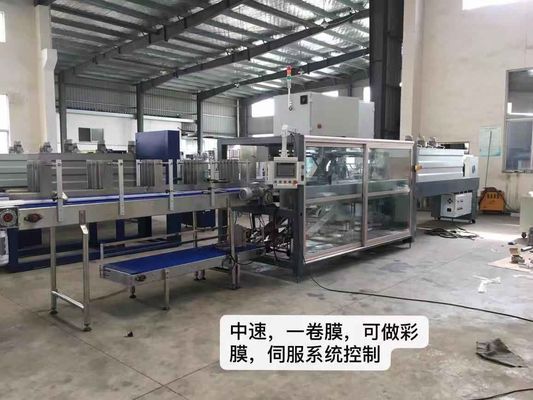

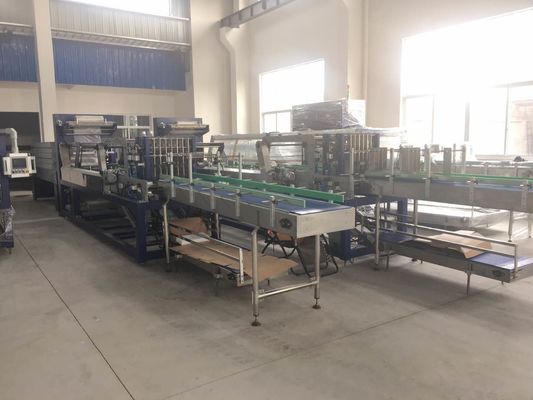

Automatic Plastic Film Heat Shrink Wrapping Machine For PET Water Bottle 0Automatic Plastic Film Heat Shrink Wrapping Machine For PET Water Bottle 1Automatic Plastic Film Heat Shrink Wrapping Machine For PET Water Bottle 2

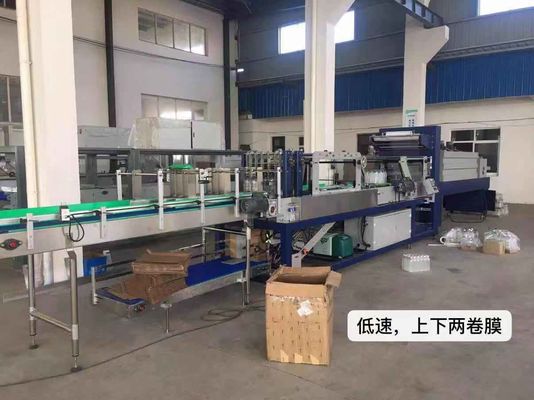

Automatic Plastic Film Heat Shrink Wrapping Machine For PET Water Bottle 3
