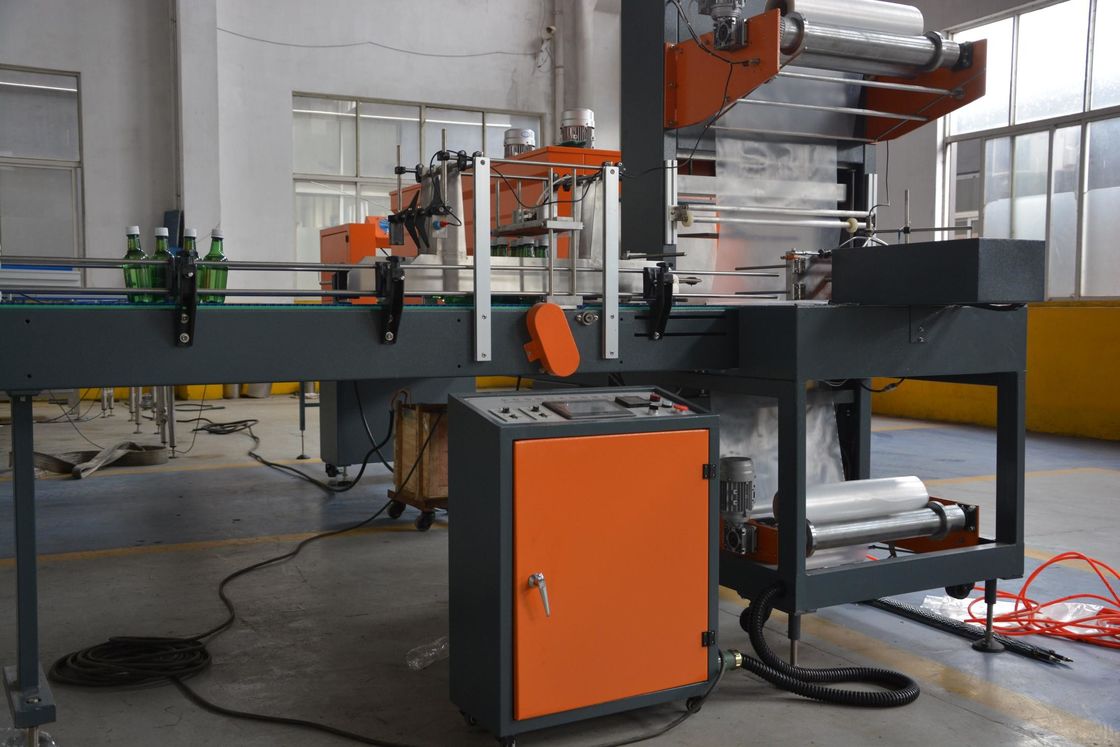

20pcs/Min 260 Degree SUS Shrink Packing Machine

China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
China SUZHOU LABELONG PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

20pcs/Min 260 Degree SUS Shrink Packing Machine

20pcs/Min 260 Degree SUS Shrink Packing Machine
20pcs/Min 260 Degree SUS Shrink Packing Machine

Large Image :  20pcs/Min 260 Degree SUS Shrink Packing Machine

Product Details:

Place of Origin: China
Brand Name: Labelong
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Wooden case
Delivery Time: 20-40 days
Payment Terms: T/T OR L/C
Supply Ability: 50-100SET/YEAR
Detailed Product Description
Product Name: Shrink Packing Machine Degree: 260 Degree
Speed: 20pcs/Min Material: SUS
Application: Food, Beverage, Medicine Capacity: 18-20pcs Per Minutes
Max. Product Size: 270*650*350mm Suitable Plastic Film Thickness: 0.03-0.15mm
Highlight:

SUS Shrink Packing Machine

,

260 degree bottle wrapping machine

,

260 degree Shrink Packing Machine

AUTOMATIC SHRINK FILM PACKAGING MACHINE

Shrink film package series

Shrink Wrapping machine

Packing Machine

Automatic shrink film packaging machine is a continuous film roll, according to the required length of the film cut to the vacuum suction of the plastic film transported to the bottom of a group of containers, containers continue to move forward while the plastic film wrapped by the lever Container and superimposes the end of the film onto the plastic film over the container, followed by the plastic film-coated container being fed into the heating channel and finally forming the automated packaging technology for the film wrapping product.



Including container feeding, container grouping arrangement, film unwinding device, film cutting system, film conveying, shrink film winding and shrinking furnace.



Can be packaged in different containers, such as: plastic bottles, glass bottles, cans, jars or a number of small packages.

Automatic shrink film packaging machine continuous linear.



Capacity 18-20pcs per minutes
Max. product size 270*650*350mm
Max. packing size 600*650*450mm (L*W*H)
Suitable plastic film thickness 0.03-0.15mm
Heating temperature 260 degree adjustable
Working pressure 0.6-0.8Mpa
Input Power 3PH 380V 50HZ
Motor power 30kw
Machine size (L)12000×(W)1100×(H)2100
Machine weight 2400kg
